Single Mode Fiber Coupled Pumped Laser(974/976nm)

  •   格物2单模光纤耦合泵浦激光器.jpg

    It wa s adopt ed a butterflys haped semiconductor laser chip with fiber Bragg g rating wavelength locking , and a professionally designed driver and temperature control circuit to ensure the safe operation of the laser, as well as stable output power and spectrum. Suitable as a pump laser source for fiber lasers or fiber amplifiers, it can be provided in desktop or modular packaging.



    Product brochure:产品手册.png



                                                      Features

                                                       · High Output Power

                                                                        · Wavelength locked

                                                                        · Module or Basic





    Application

    · Fiber Laser's PUMP

    · Fiber Amplifier's PUMP

    · Testing fiber devices




    Parameter

      Optical Parameter

    Units

    Typical ValuesNotes

      Wavelength

    nm

    974/976


      Resolution

    nm

    ±


      Working Mode

    -

    CWContinuous-wave

      Output Power

    mW

    200/400/600/100


      OP regulation range

    -

    10~100%


      S-term FS(15 min)

    dB

    ≤ ±0.02

    Equivalent≤±0.5%

      L-term FS(8 h)

    dB

    ≤ ±0.05

     Equivalent≤±1.2%

      Polarization state

    -

    Random

    Linearly polarized

      Tail Fiber Type

    -

    Hi-1060

    PM980

      Connector Type

    -

    FC/APCFC/APC(Slow axis)


      Electrical & environmental

    BasicModule

      Control Mode

    Button/RS232RS232

      Communication Interface

    DB9 FemaleDB9 Female

      Power Supply

    100~240V AC, <20W5V DC, <15W

      Size

    260(W)×280(D)×120(H)mm125(W)×150(D)×20(H)mm

      Operating temperature

    -5~+35°C

      Operating humidity range

    0~70%

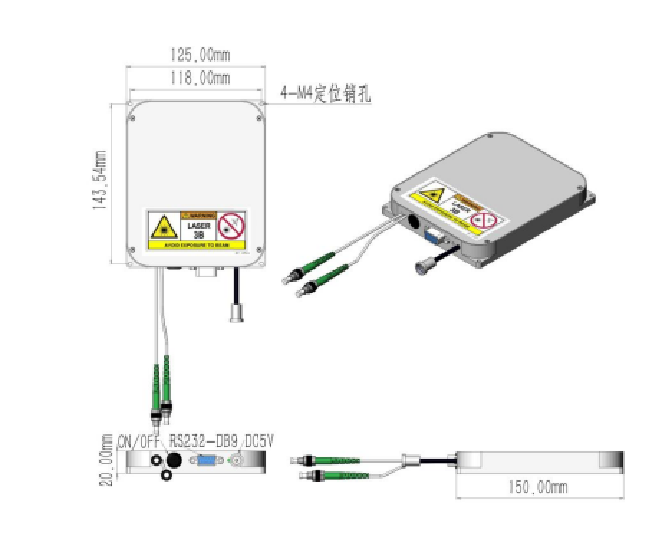

    Module installation positioning dimensions

    M15 module: 90(W)×70(D)×15(H)mm


    M20 module: 125(W)×150(D)×20(H)mm



    Ordering Information

    FL

    Wavelength(nm)

    Pout(mW)

    Tail Fiber Type

    Package Type


    974/976200/400/600/1000

    SM= HI-1060

    PM= PM 980

    M=Module

    B=Basic
