C-band ASE Broadband Light Source
| Fiber ASE broadband light sources belong to incoherent light sources and are self-radiation produced by semiconductor laser-pumped erbium-doped quartz fibers. The light source wavelength covers the C-band (1528nm to 1568nm), with a spectral flatness of 20dB. It is output through single-mode fiber coupling, with continuously adjustable power and optional polarization-maintaining fiber output for linear polarization. Suitable for applications such as optical fiber sensing, it can be provided in various forms of packaging. |  |
 |
|  |
|
|
|
| 特性 |
| 应用 |
| Wide spectrum/high flatness/Adjustable power/high stability |
| Optical fiber sensing/medical imaging/production testing |
产品参数与手册
产品手册
光学指标 | 单位 | 典型值 | 备注 |

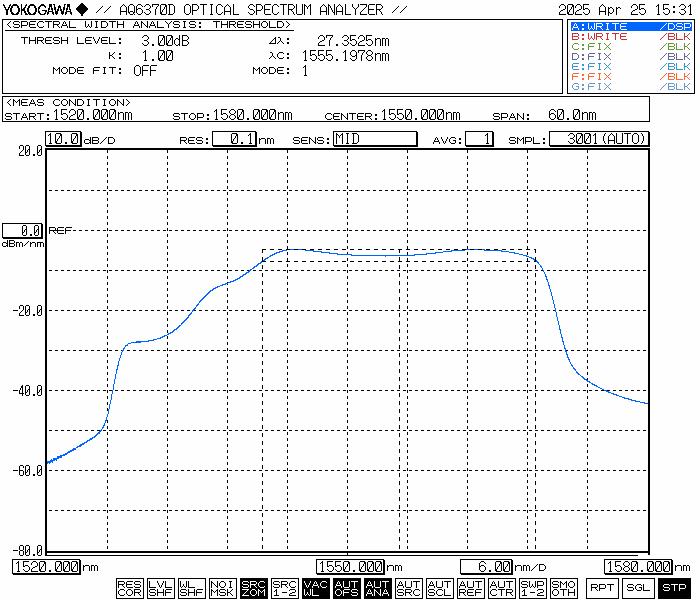

光谱范围 | nm | 1528~1568 | 20dB范围 |
输出光功率 | mW | 1000 | 2000 |
|
光谱功率密度 | dBm/nm | 13 | 16 | 均值 |
功率调节范围 | - | 10%~100% |
|
光谱平坦度 | dB | <20 |
|
光谱纹波 | dB | ≤0.1 |
|
输出端隔离度 | dB | >35 |
|
短期稳定度(15分钟) | dB | ≤ ±0.02 | 等效≤±0.5% |
长期稳定度(8小时) | dB | ≤ ±0.05 | 等效≤±1.2% |
偏振态 | - | 完全非偏振 | 线偏振 |
|
偏振消光比PER | dB | ≤0.2 | ≥23 |
|
光纤和连接头 | - | SMF-28 | PM1550 | FC/APC |
电气和环境参数 | 台式 | 模块 |
控制方式 | 触屏/RS232串口通信 | RS232串口通信 |
通信接口 | DB9 母口 | DB9 母口 |
供 电 | AC 100~240V ,30W | DC12V3A |
尺寸或代码 | B2 | M31 |
工作温度湿度范围 | -5~+35°C；0~70% |
订购信息/型号 |
ASE | 光谱范围 | 输出功率(mW) | 功率可调(可选) | 输出光纤类型 | 封装形式 |
| C | 1000/2000 | T | SM=SMF-28 PM=PM1550 | B2=台式 M31=模块 |
功率稳定性测试
| 尺寸和安装孔 |
|
|
|

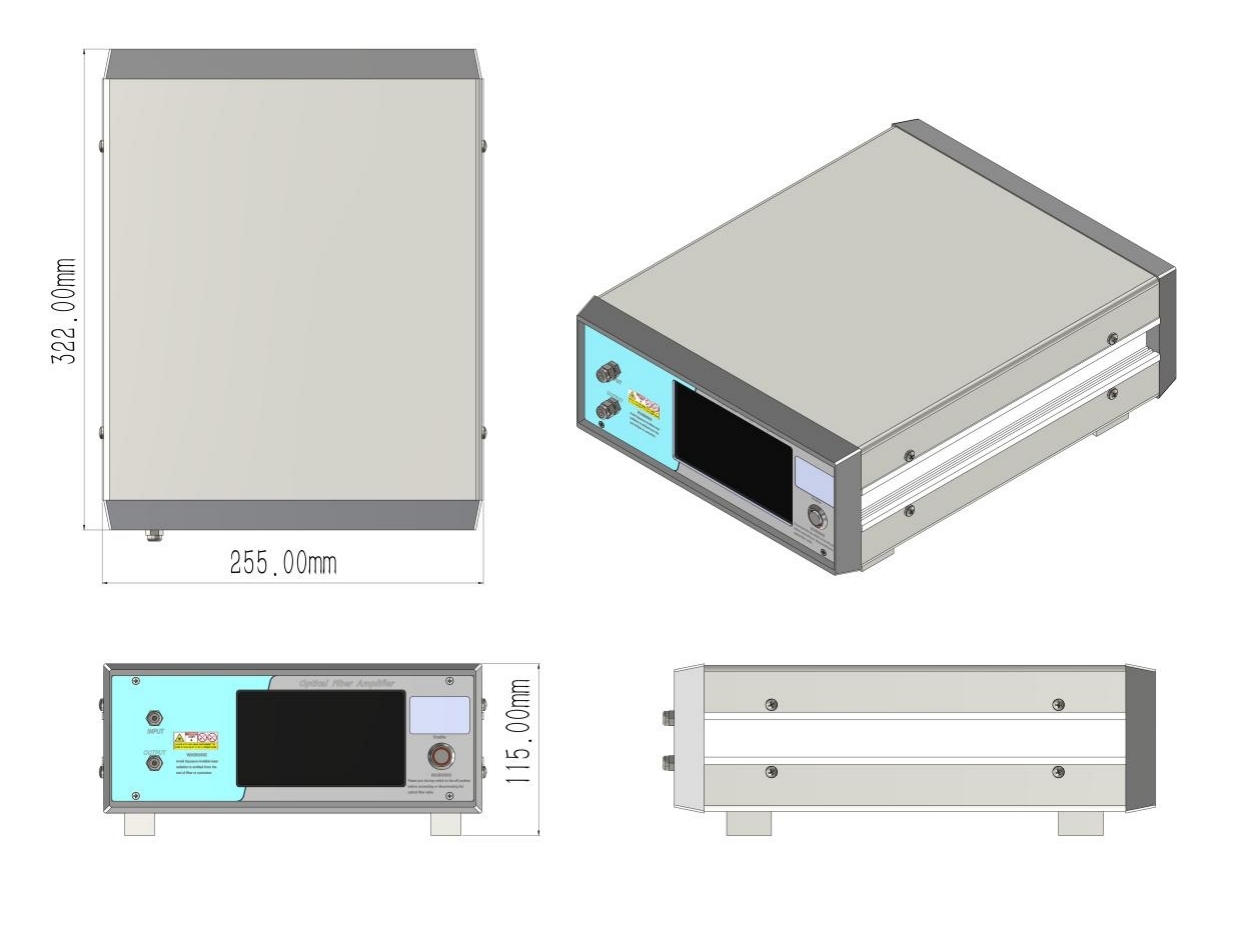

| B2 台式 |

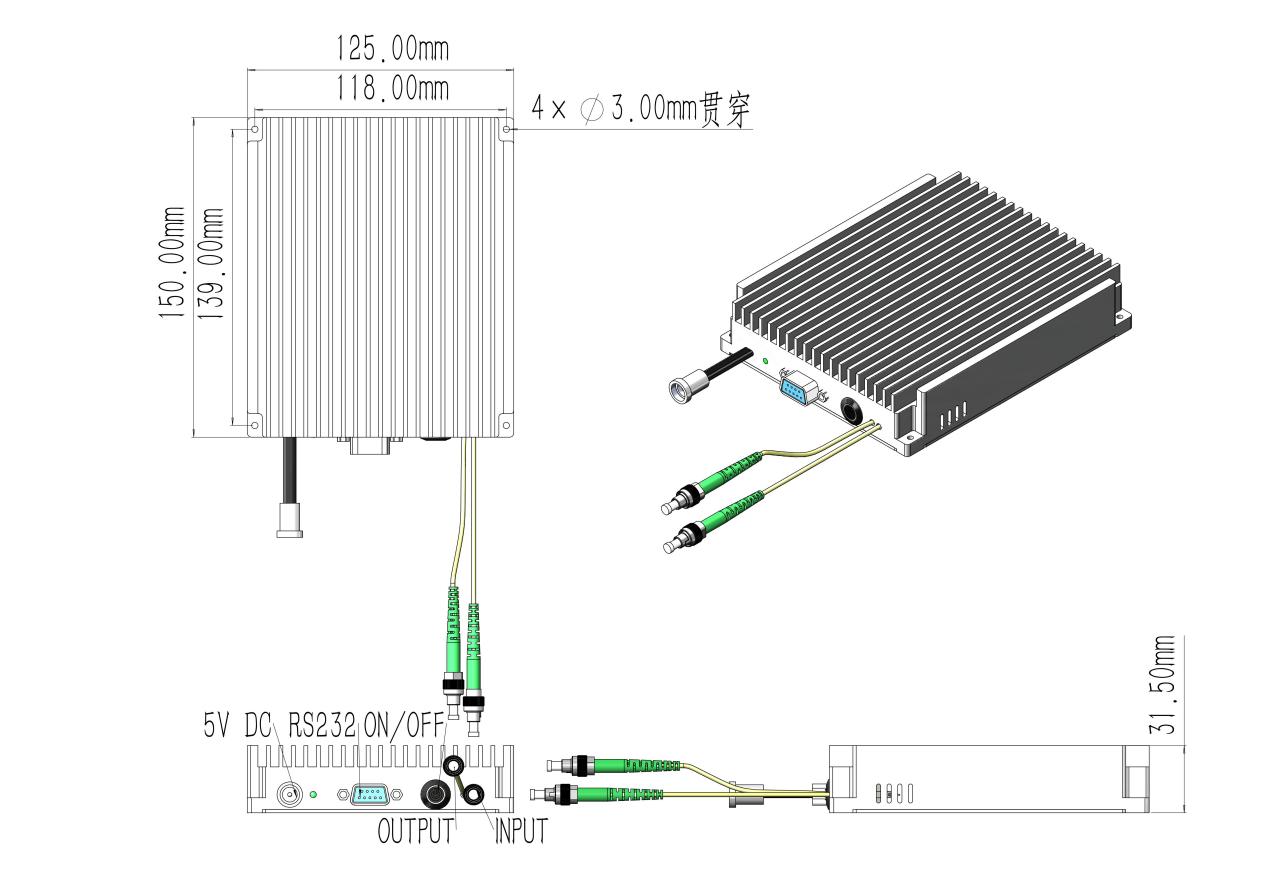

| M31 模块 |
|
