Product manual：

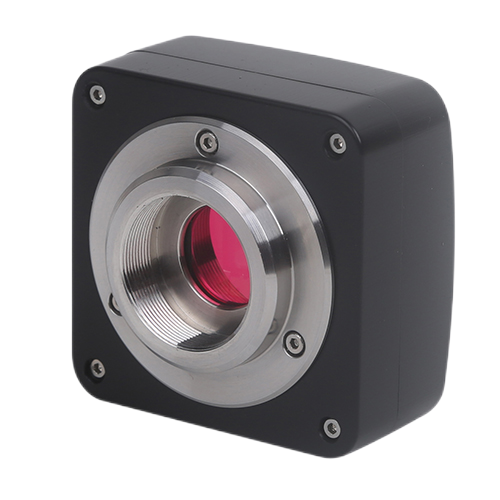

Product Features

· C-interface CMOS camera using Aptina CMOS sensor

· The resolution spans from 0.35M to 14M, among others

· There is a certain capacity storage chip integrated on the board to ensure synchronous data transmission, high frame rate, and stability

· USB 2.0 interface ensures high transfer rate

· Ultra Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

UCMOS14000KPA

TP614000A

14M/MT9F002(C)

1/2.3“(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

1.8@4096x3288

10@2048x1644

27@1024x822

1x1

2x2

4x4

0.4ms~2000ms

UCMOS12000KPA

TP612000A(2022)

12M/IMX577(C)

1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3@3840x3040

11@1920x1516

47@960x758

1x1

2x2

4x4

0.4ms~2000ms

UCMOS10000KPA

TP610000A(2022)

10M/IMX577(C)

1/2.3“ (5.56x4.26)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3.3@3584x2748

12@1792x1374

53@896x684

1x1

2x2

4x4

0.4ms~2000ms

UCMOS09000KPB

TP609000B(2022)

9M/Special(C)

1/2.4“(5.41x4.05)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3.5@3488x2616

13@1744x1308

55@872x654

1x1

2x2

4x4

0.4ms~2000ms

UCMOS08000KPB

TP608000B(2022)

8M/Special(C)

1/2.5“(5.06x3.79)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

4@3264x2448

15@1600x1200

62@800x600

1x1

2x2

4x4

0.4ms~2000ms

UCMOS05100KPA

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lux

73dB

40dB

7.0@2592x1944

27.7@1296x972

100.5@648x486

1x1

2x2

4x4

0.2ms~2000ms

UCMOS04100KPA

TP604100A(2023)

4.1M/IMX347(C)

1/1.8“ (7.795x4.408)

2.9x2.9

2376mv with 1/30s

0.15mv with 1/30s

8.5@2688x1536

11.5@2048x1536

15@1536x1536

34@1344x768

1x1

1x1

1x1

1x1

0.1ms~2000ms

UCMOS04100KPB

TP604100B(20230725)

4.1M/IMX664(C)

1/1.8“ (7.795x4.408)

2.9x2.9

5970mv with HCG mode

0.13mv with 1/30s

8.5@2688x1520

34@1344x760

1x1

2x2

0.1ms~2000ms

UCMOS03100KPB

TP603100B(2022)

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

11.5@2048x1536

29.5@1024x768

1x1

2x2

0.2ms~2000ms

UCMOS01300KPA

TP601300A

1.23M/SC1235(C)

1/3“ (4.80x3.60)

3.75x3.75

4.5V/lux-sec

74dB

38dB

15@1280x960

15@1280x720

1x1

1x1

0.14ms~2000ms

UCMOS10000KPA

TP610000A

10M/MT9J003(C)

1/2.3“ (5.98x4.59)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3584x2748

8@1792x1374

27@896x684

1x1

2x2

4x4

0.4ms~2000ms

UCMOS09000KPB

TP609000B

9M/Special(C)

1/2.4“(5.83x4.37)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3488x2616

8@1744x1308

27@872x654

1x1

2x2

4x4

0.4ms~2000ms

UCMOS08000KPB

TP608000B

8M/Special(C)

1/2.5“(5.45x4.09)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3264x2448

8@1600x1200

27@800x600

1x1

2x2

4x4

0.4ms~2000ms

UCMOS05100KPA

TP605100A

5.1M/MT9P006(C)

1/2.5“ (5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

5@2592x1944

18@1280x960

60@640x480

1x1

2x2

4x4

0.294ms~2000ms

UCMOS03100KPA

TP603100A

3.1M/MT9T001(C)

1/2“ (6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

8@2048x1536

22@1024x768

43@680x510

1x1

2x2

3x3

0.244ms~2000ms

UCMOS02000KPB

TP602000B

2.0M/Special(C)

1/2.6“(5.12x3.84)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

16@1600x1200

50@800x600

1x1

2x2

0.128ms~2000ms

UCMOS01300KMA

TM601300A

1.3M/MT9M001(M)

1/2“ (6.66x5.32)

5.2x5.2

2.1 V/lux-sec

68.2dB

45dB

20@1280x1024

1x1

0.14ms~500ms

UCMOS00350KPA

TP600350A

0.35M/MT9V011(C)

1/4“ (3.58x2.69)

5.6x5.6

1.9V/lux-sec

60dB

45dB

30@640x480

80@320x240

1x1

2x2

0.111ms~192ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

USB

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 2.0 high-speed interface

Monitor: 17 "or above

CD-ROM

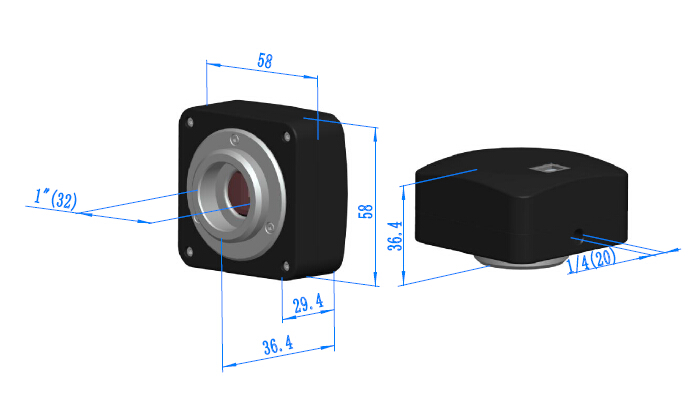

Schematic diagram of the external dimensions of UCMOS series cameras. The camera housing is machined from a sturdy aluminum alloy, which is aesthetically pleasing and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Schematic diagram of the external dimensions of UCMOS series cameras

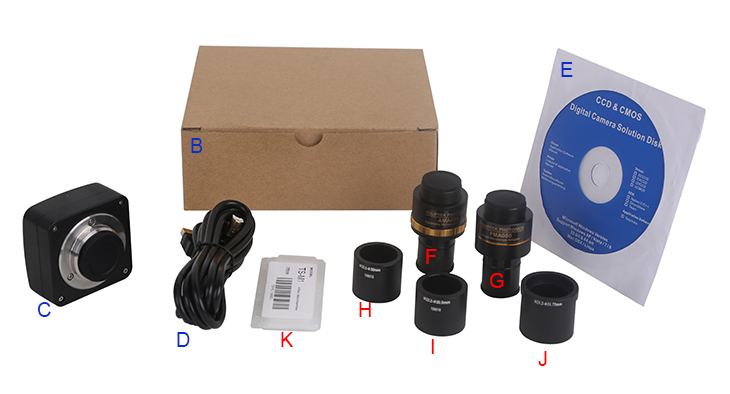

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.5~0.55kg/small box)

C

One UCMOS series camera

D

High speed USB 2.0 A to B gold-plated head data cable/2.0m

E

CD (Drivers and Applications, Ø 12cm)

Optional Accessories

F

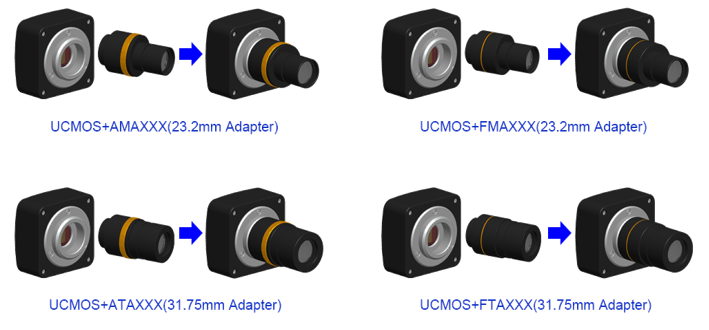

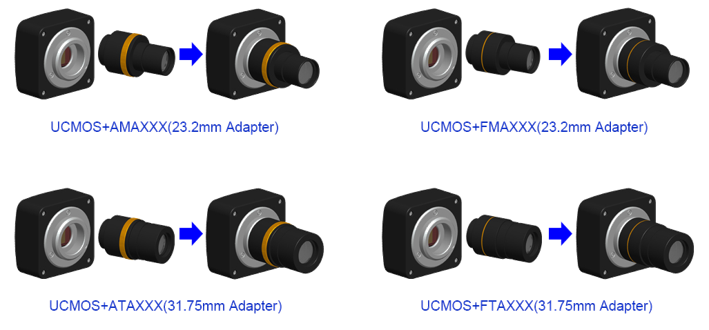

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
