- Arbitrary output spectrum - Software controlled - Solid state, high speed - Dynamically programmable - High stability - Excellent extinction ratio

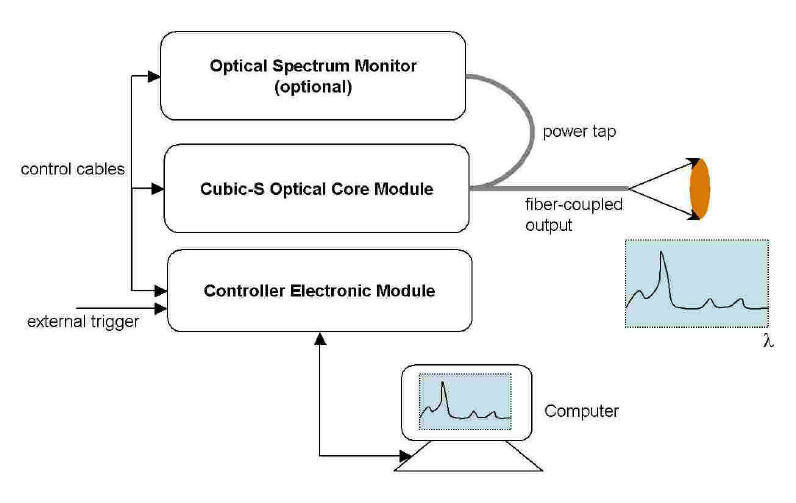

| As illustrated in Figure-1, Goptica Cubic-S is composed of the following modules: (1) An Optical Core Module; (2) A Controller Electronic Module; (3) An optional Spectrum Monitor; and (4) Control Software in the computer.
The Optical Core Module consists of 19 wavelength bands approximately evenly spaced between 395nm and 700nm. Light from different wavelength bands are combined in to a single output. The intensity of each band can be individually controlled to generate any custom-specified spectrum. Tuning resolution is10-bit and response time is 20ms.
The ‘spectrum tailored’ light is output from a 1000 micron-core, 0.22NA multimode fiber. Total output power can be as high as 10mW. Various optical adaptors (optional) are provided, which can be used to couple the output light into fiber-optic or liquid light guides.
Goptica Cubic-S is controlled through a powerful PC-based user interface. A software development kit (SDK) is also included so that users may integrate the light source into their own applications.
Also available is a spectrum monitoring option that allows users to monitor and control the output spectrum in real time.
|
