Uniformly illuminated precision LED spotlight - up close

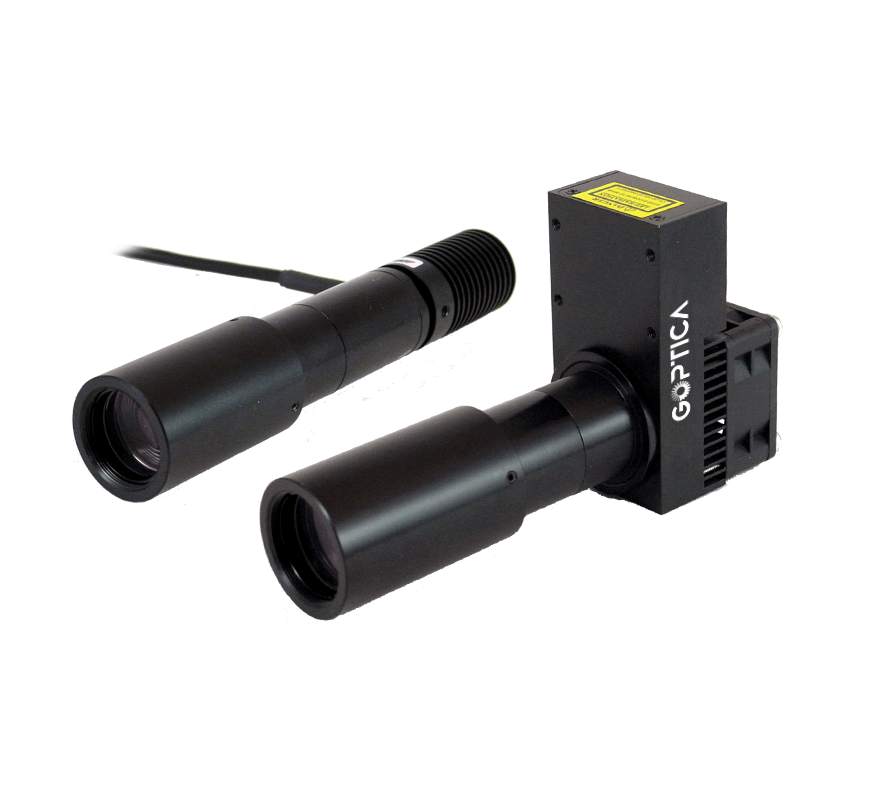

The Gewu Optical Precision LED Spotlight consists of the most advanced high-power LED emitter and a proprietary high NA multi-element non spherical optical system. The result is a high-power, uniform illumination point with highly clear edges.

Goptica's PLS series precision LED spotlight is a universal light source that can be used in situations that require uniform high-intensity illumination. The projection lens at the front end of the spotlight can slide and lock to focus the illumination pattern at different working distances. Using a standard projection lens, the spot diameter is linearly proportional to the working distance.

The LED emitter is directly installed on the metal base of the light source, and the base is also equipped with an integrated heat sink. This configuration can minimize the thermal resistance between the LED emitter and the heat sink, thereby achieving better heat dissipation.

The multi chip LED emitter (i.e. Type B) has been added to the product portfolio. Some of the 7W to 15W LEDs have a total light power exceeding 500mW, which is twice the power of a single-chip LED. This higher power B-type model (7W and above) is equipped with a cooling fan and has different external dimensions compared to the A-type model. Please carefully check the installation diagram. The power supply for the cooling fan is included in the price of the B-type precision LED spotlight.

The precision LED spotlight includes a 2-meter-long cable with two bare wire terminals at the end of the cable. The light source can be driven by a Goptica LED controller or other LED controllers and current sources.

Important note: (1) LEDs can only be driven by a constant current source and cannot be driven by a voltage source (such as a battery or AC/DC power supply); (2) Before applying current to the LED, be sure to verify the rated current of the LED and always ensure that no current exceeding the rated current of the LED is applied.

caracteristic

application

- Uniform illumination points and clear edges

- High output power

- Multi element non spherical optical component

- Wide range of available wavelengths

- Adjustable focal length

- Multiple installation functions suitable for laboratory and OEM applications

- Integrated heat sink

- General Purpose Light Source

- Machine vision

- BioPhotonics

- Semiconductor Equipment

- UV cure

Product specifications and parameters

Product manual:

Minimum working distance: 75mm

Maximum working distance: 100mm

Spot diameter: 10mm at minimum working distance. The maximum working distance is 17mm.

Type A and Type B PLS

Part number	Type (A or B) 1	Wavelength (nm)	Current (mA)	Voltage (V)	Typical output power (mW) 2
PLS-0340-030-02-S	A	340	350	4.3	11
PLS-0365-030-04-S	A	365	1000	3.65	180
PLS-0365-030-13-S	B	365	3500	3.85	720
PLS-0380-030-03-S	A	380	1000	3.2	65
PLS-0385-030-04-S	A	385	1000	3.65	250
PLS-0385-030-07-S	B	385	500	15	300
PLS-0385-030-11-S	B	385	700	15.5	375
PLS-0385-030-13-S	B	385	3500	3.75	900
PLS-0390-030-03-S	A	390	1000	3.1	140
PLS-0395-030-03-S	A	395	1000	3.1	150
PLS-0400-030-S	A	400	350	3.5	50
PLS-0400-030-03-S	A	400	1000	3.1	150
PLS-0400-030-04-S	A	400	1000	3.5	380
PLS-0400-030-17-S	B	400	1000	16.6	400
PLS-0405-030-03-S	A	405	1000	3	180
PLS-0410-030-03-S	A	410	1000	3	175
PLS-0415-030-03-S	A	415	1000	3	120
PLS-0430-030-02-S	A	430	500	3.8	100
PLS-0455-030-S	A	530	1000	3.0	260
PLS-0470-030-S	A	470	1000	3.9	110
PLS-0470-030-14-S	B	470	3000	4.6	650
PLS-0470-030-15-S	B	470	1000	15	450
PLS-0471-030-02-S	A	471	350	3	75
PLS-0490-030-01-S	A	490	350	3.5	80
PLS-0505-030-S	A	505	1000	3.9	65
PLS-0505-030-12-S	B	505	1000	12.2	185
PLS-0530-030-S	A	530	1000	2.85	100
PLS-0530-030-15-S	B	530	1000	15	200
PLS-0540-030-14-S	B	540 broadband	3000	4.6	260
PLS-0560-030-02-S	A	560 broadband	700	2.9	95
PLS-0590-030-S	A	590	1000	3.9	35
PLS-0590-030-05-S	B	590	500	9.5	130
PLS-0617-030-02-S	A	617	700	2.3	80
PLS-0617-030-10-S	B	617	700	9.6	200
PLS-0625-030-S	A	625	1000	3.9	90
PLS-0625-030-07-S	B	625	700	9.6	155
PLS-0656-030-S	A	656	1000	3.9	180
PLS-0656-030-07-S	B	656	700	9.6	420
PLS-0680-030-S	A	680	600	2.7	20
PLS-0700-030-01-S	A	700	500	2.1	27
PLS-0720-030-01-S	A	720	600	2.2	39
PLS-0740-030-03-S	A	740	1000	2.5	100
PLS-0740-030-10-S	B	740	1000	9.5	300
PLS-0780-030-S	A	780	800	2.5	60
PLS-0810-030-02-S	A	810	800	2.2	65
PLS-0850-030-03-S	A	850, 3W	1000	3	220
PLS-0870-030-01-S	A	870	700	1.9	60
PLS-0910-030-02-S	A	910	1000	1.9	60
PLS-0940-030-S	A	940	700	1.5	50
PLS-0980-030-01-S	A	980	500	1.4	16
PLS-6500-030-S	A	Glacier white 6,500K	1000	3.6	100
PLS-6500-030-15-S	B	Glacier white 6,500K	1000	15	400
PLS-5500-030-S	A	Cool white 5,500K	1000	3.9	85
PLS-5500-030-12-S	B	Cool white 5,500K	1000	12	400
PLS-4000-030-S	A	Warm white 4,000K	1000	3.9	85
PLS-3000-030-S	A	Warm white 3,000K	1000	2.8	70
PLS-3000-030-12-S	B	Warm white 3,000K	1000	12	320

1.The installation diagrams for Type A and Type B LED light sources are different. The former does not include cooling fans, while the latter includes. When ordering LED controllers for B-type LEDs, please ensure to upgrade the AC/DC power adapter from "standard" 12V to 24V (P/N: ACC-SLC-24VU). For some LED controllers, it is not recommended to mix A-type and B-type LEDs on the same controller. Please check the controller specifications to confirm.

2.Due to variations in manufacturing processes and operating parameters such as temperature and current, the actual output of any given LED may differ. The specifications are for reference only.

H-type PLS

Part number	Wavelength (nm)	Current (A)	Current (mA)	Typical output power (mW) 1
PLS-0365-030-76-S	365	18	4.2	2200
PLS-0405-030-65-S	405	18	3.6	1400
PLS-0405-030-89-S	405	24	3.7	1700
PLS-0415-030-65-S	415	18	3.6	1700
PLS-0470-030-50-S	470	13	3.8	1850
PLS-0470-030-61-S	470	18	3.4	2150
PLS-0470-030-92-S	470	27	3.4	2500
PLS-0525-030-60-S	525	13	4.6	715
PLS-0525-030-79-S	525	18	4.3	850
PLS-0560-030-68-S	560 broadband	18	3.8	2800
PLS-0560-030-84-S	560 broadband	22	3.8	3100
PLS-0625-030-38-S	625	13	2.9	1450
PLS-0625-030-42-S	625	18	2.3	1800
PLS-0730-030-77-S	730	18	5.9	2100
PLS-0780-030-65-S	780	18	3.6	1250
PLS-0850-030-68-S	850	18	3.75	4400
PLS-6500-030-33-S	Glacier white 6,500K	9	3.7	1100
PLS-6500-030-65-S	Glacier white 6,500K	18	5.9	2000

1.Due to variations in manufacturing processes and operating parameters such as temperature and current, the actual output of any specific LED may differ. The specifications are for reference only.

Discontinued components

Part number	Type (A or B) 1	Wavelength (nm)	Current (mA)	Voltage (V)	Output power (mW) 2
PLS-0365-030-S	A	365	500	3.8	50
PLS-0365-030-07-S	B	365	500	15	250
PLS-0365-030-11-S	B	365	700	15.8	310
PLS-0365-030-48-S	H	365	12000	3.9	1100
PLS-0385-030-S	A	385	500	3.8	50
PLS-0400-030-05-S	A	400	1000	4.1	120
PLS-0405-030-50-S	H	405	13000	3.8	1350
PLS-0420-030-S	A	420	500	3.8	35
PLS-0420-030-03-S	A	420	1000	3	160
PLS-0420-030-12-S	B	420	1000	12	500
PLS-0425-030-03-S	A	425	1000	3	160
PLS-0590-030-10-S	B	590	1000	10	140
PLS-0617-030-S	A	617	1000	3.9	80
PLS-0657-030-S	A	657	350	2.4	50
PLS-0740-030-S (Replaced by PLS-0740-030-03-S)	A	740	1000	2.5	100
PLS-0850-030-S	A	850, 2W	1000	2.1	85

2.Due to variations in manufacturing processes and operating parameters such as temperature and current, the actual output of any given LED may differ. The specifications are for reference only.
