A lightguide adapter can be used to couple light from a collimated LED source into a lightguide. Currently, Mightex offers the following lightguide adapters:
- LCS-LGA23-0515: Lightguide adapter for 23mm-diameter DUV LED collimator source. For light guide with ferrule diameter of 5mm (typical 3mm-core light guide) and ferrule length of 15mm or more. Transmission range 200nm – 2200nm.
- LCS-LGA22-0515: Lightguide adapter for 22mm-diameter LED collimator source and beam combiner. For light guide with ferrule diameter of 5mm (typical 3mm-core light guide) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
- LCS-LGA22-0715: Lightguide adapter for 22mm-diameter LED collimator source and beam combiner. For light guide with ferrule diameter of 7mm (typical 5mm-core light guide) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
- LCS-LGA22-0Q15, Lightguide adapter for 22mm LED collimator source and beam combiner. For light guide with ferrule diameter of 0.25″(6.35mm) and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
- LCS-LGA22-1115: Lightguide adapter for 22mm LED collimator source and beam combiner. For light guide with ferrule diameter of 11.1mm and ferrule length of 15mm or greater. Transmission range 350nm – 2000nm.
Below are some examples of how to use the lightguide adapters:
(1) With a collimated LED source

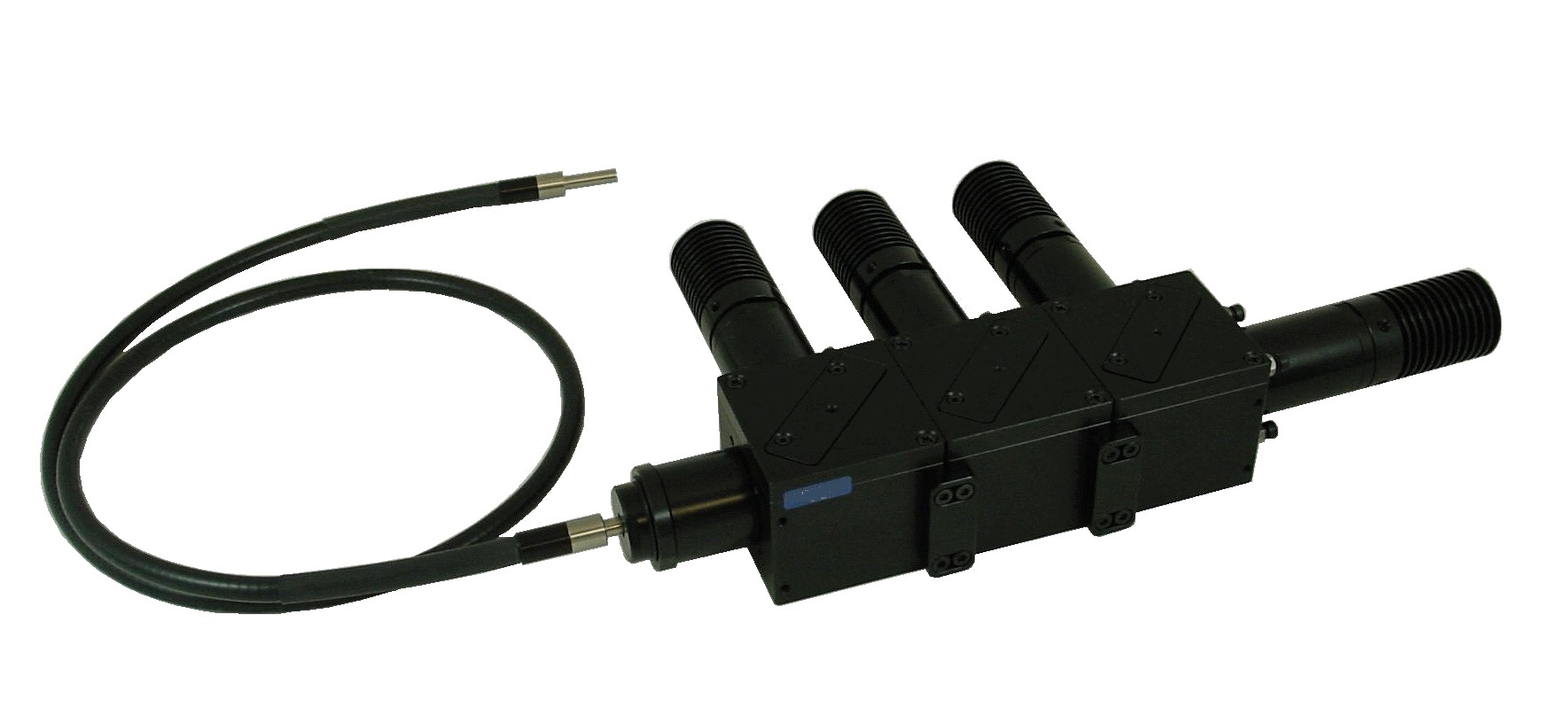

(2) With multi-wavelength beam combiners and collimated LED source
(3) With a WheeLED wavelength -switchable LED source
