  • High Power Fiber-Coupled LED Light Sources (UV, VIS and NIR)

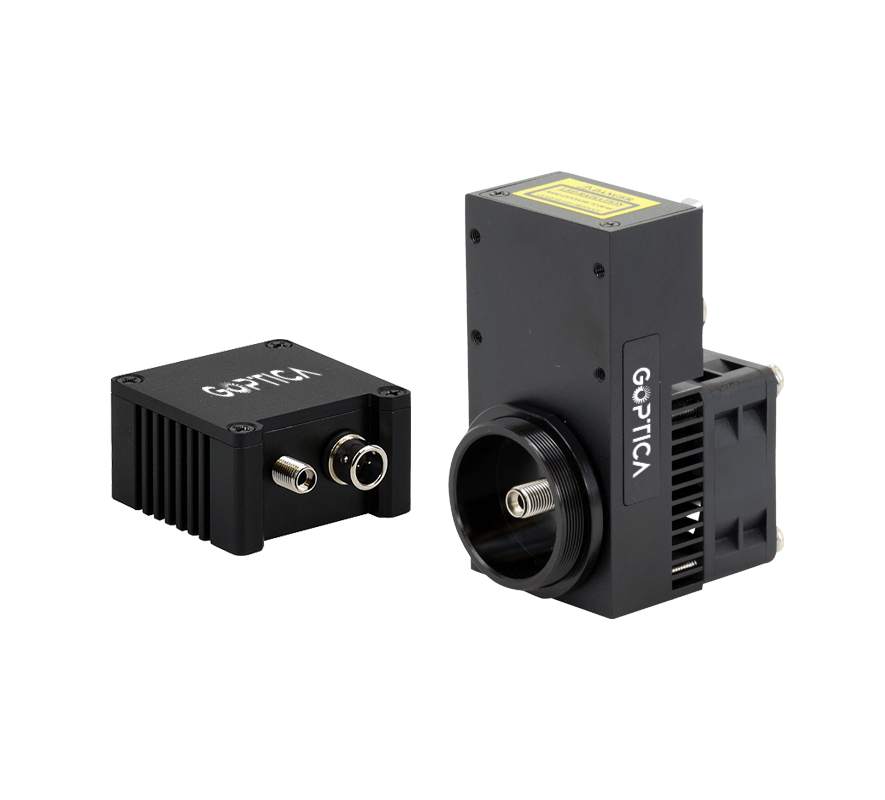

    Goptica FCS-series fiber-coupled LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). FCS series also features a locking electrical connector for secured connection. FCS series are designed as a universal light source for general lab use and OEM applications. The one-piece machined housing features multiple mounting holes. All Goptica LED drivers such as the SLC series or other LED drivers and current sources can be used to drive the light sources.


    To drive a FCS LED source, one can use any one of the wide range of LED controllers Goptica has to offer:

    - Software controlled LED controllers; or

    - Manual LED drivers.

    IMPORTANT: For deep UV LED sources with an operating current rating of <50mA, it is strongly recommended that the following LED controllers be used to drive the LEDs:

    - Software controlled LED controllers, Model# SLC-FA04-US; or

    - Manual LED driver, Model# SLA-0100-2.


    IMPORTANT : (1) LED’s can ONLY be driven by a constant-current source, and NOT a voltage source (e.g. a battery, or a AC/DC power supply etc.); (2) Please always verify LED’s current rating first before applying current to the LED, and please always make sure NOT to apply current that is above the LED’s current rating.


    FEATURESAPPLICATIONS

    - High-power UV/VIS/NIR/white fiber-coupled LED’s

    - Interchangeable fiber with SMA connector

    - No moving parts in optical path

    - Multiple mounting features for lab and OEM applications

    - Optional LED controllers

    - Compact, machined metal housing with integrated heat sink

    - Locking electrical connector

    - Microscopy

    - Fluorescence

    - Sensors

    - Semiconductor equipment

    - Testing instruments

    - Medical instruments

    - Machine vision



  • Specifications

    Product Manual:格物PDF.png

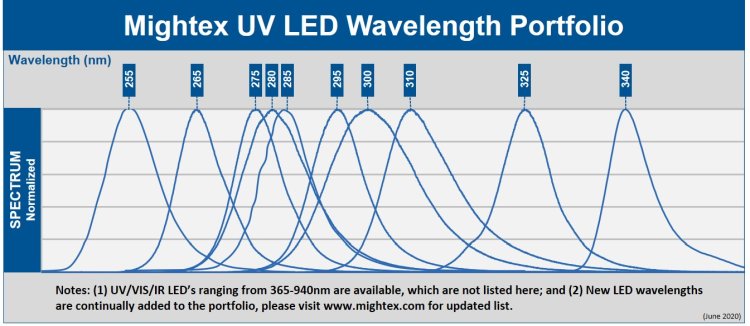

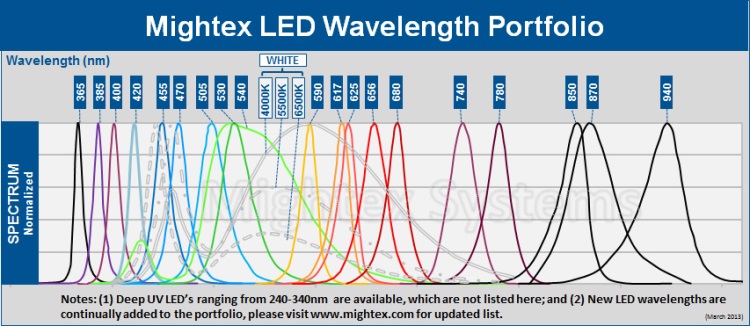

    Specifications

    Type-A FCS(passive cooling, no cooling fan)

    Wavelength CodeDescriptionWavelength (nm)Iop(mA)Vop(V)Typical Radiant Flux (mW) 1
    (with a 400µm 0.22NA fiber)    		Typical Radiant Flux (mW)
    (with a 400µm 0.39NA fiber)
    0000Cool White5,500K10003.93.26.4
    0001Warm White4,000K10003.93.26.4
    0002Glacier White6,500K10003.63.26.4
    0003Warm White3,000K10002.82.85.6
    0265-001Deep UV2653506.3400µWN/A
    0275-001Deep UV2756006700µWN/A
    0280-002Deep UV2808006.5600µWN/A
    0310-001Deep UV3106005.8360µWN/A
    0325-001Deep UV3253505.4220µWN/A
    0340-002Deep UV3403504.30.61.1
    0365-001UV 365nm36510003.654.38.6
    0380UV 380nm38010003.22.85.6
    0385-001UV 385nm38510003.655.811.6
    0395UV 395nm39510003.16.212.4
    0400-002UV 400nm, 3W40010003.16.112.2
    0405UV 405nm405100037.515
    0410410nm410100037.314.6
    0415415nm415100037.214.4
    0430430nm4305003.82.95.8
    0455455nm45510003.01836
    0470470nm47010003.9714
    0471471nm47135032.14.2
    0490490nm4903503.53.26.4
    0505505nm50510003.93.57
    0530530nm53010002.85714
    0560560nm broadband5607002.95.511
    0590590nm59010003.21.22.4
    0617-001617nm, 2W6177002.36.513
    0625625nm625100036.513
    0656656nm65610003.16.513
    0680680nm6806002.71.42.8
    0700700nm7005002.10.61.2
    0720720nm7206002.20.91.8
    0740740nm74010002.93.67.2
    0780NIR 780nm7808002.52.24.4
    0810NIR 810nm8108002.21.53
    0850-001NIR 850nm, 3W85010003612
    0870NIR 870nm8707001.91.42.8
    0910NIR 910nm91010001.91.53
    0940NIR 940nm94010002.448


    1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


    Type-B FCS (with a cooling fan)

    Wavelength CodeDescriptionPeak Wavelength (nm)Iop(mA)Vop(V)Typical Radiant Flux (mW) 1
    (with a 400µm 0.22NA fiber)    		Typical Radiant Flux (mW)
    (with a 400µm 0.39NA fiber)
    0470-101Blue47030004.61938
    0530-100Green53024004.9815
    0540-100Broadband Green54030004.61020
    0625-100Red62524002.9918

    1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


    Type-H Super High-Power FCS (with a cooling fan)

    Wavelength CodeDescriptionPeak Wavelength (nm)Iop(A)Vop(V)Typical Radiant Flux (mW) 1
    (with a 1000µm 0.22NA fiber)    		Typical Radiant Flux (mW)
    (with a 1000µm 0.39NA fiber)
    0365-201UV365184.2200140
    0405-201UV405183.6170220
    0415-200Blue-Violet 415nm, 65W415183.6275350
    0470-200Blue, 50W470133.8180280
    0470-201Blue, 60W470183.4220330
    0470-202Blue, 90W470273.4260390
    0525-200Green, 60W525134.6100160
    0525-201Green, 80W525184.4120190
    0560-200560 broadband, 70W560183.8180280
    0625-200Red, 38W625132.9200310
    0625-201Red, 42W625182.3250370
    0730-200NIR730185.9110170
    0780-200NIR780183.6200300
    0850-200NIR850183.75220340
    6500-200Glacier White, 30W6500K93.7120180
    6500-201Glacier White, 65W6500K183.7190280

    1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


    Discontinued Parts

    Wavelength CodeDescriptionWavelength (nm)Iop(mA)Vop(V)Typical Radiant Flux (mW) 1
    (with a 400µm 0.22NA fiber)    		Typical Radiant Flux (mW)
    (with a 400µm 0.39NA fiber)
    0240Deep UV240251010µW18µW
    0255Deep UV255306.545µW80µW
    0260Deep UV260306.545µW80µW
    0265Deep UV2653506.3100µWN/A
    0275Deep UV275306.290µW160µW
    0280-000Deep UV280305.890µW160µW
    0280-001Deep UV2805005.8400µWN/A
    0285Deep UV285305.890µW160µW
    0285-001Deep UV2855005.8450µWN/A
    0295Deep UV295305.575µW135µW
    0295-001Deep UV2956005.8500µWN/A
    0300Deep UV3005006300µWN/A
    0310-000Deep UV310305.590µW160µW
    0325-000Deep UV32530560µW110µW
    0340-000Deep UV34030560µW110µW
    0340-001Deep UV3405004.30.61.1
    0365-000UV 365nm3655003.85.811.6
    0365-200UV 365nm36512,000460180
    0385-000UV 385nm3855003.85.811.6
    0390UV 390nm39010003.15.811.6
    0400-000UV 400nm, 1W4003503.50.81.6
    0400-001UV 400nm, 4W40010004.13.57
    0405-200UV 405nm, 50W405130003.870210
    0420420nm 2W4205003.82.65.2
    0420420nm 3W420100037.214.4
    0425425nm425100036.713.4
    0470-100470nm47030004.61121
    0617-000617nm, 3W61710003.96.513
    0657657nm6573502.412
    0850-000850nm, 2W85010002.148

    1. Due to variations in the manufacturing process and operating parameters such as temperature and current, the actual output of any given LED may vary. Specifications are intended to be used as a guideline.


    Electrical Pin Layout (Type-A)
