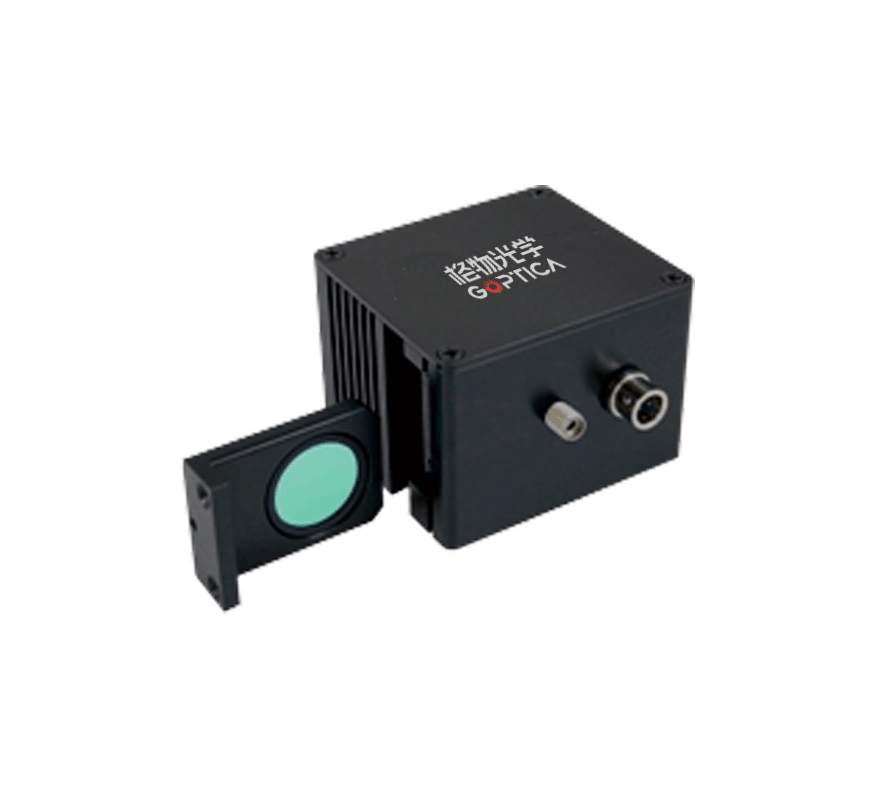

Goptica FFC-series filtered LED light sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve maximum optical output power. Optical output is coupled into a fiber through a standard SMA fiber adaptor port (SMA fiber patch cords are sold separately). Users may insert an optical filter into the light source to tailor output spectrum and intensity. Example applications include fluorescence excitation with a bandpass filter, wavelength selection from a white LED, attenuating intensity with a neutral density filter, and polarized output with a polarizer. Filters are not included in standard FFC products. Maximum filter diameter is 1”(25.4mm) and minimum diameter is 12mm. Maximum filter thickness is 5mm. Filters with diameters of 1” or 25mm can be directly loaded into the filter holder. Smaller filters may need an adapter.
|
