Spectral multi-channel LED light source

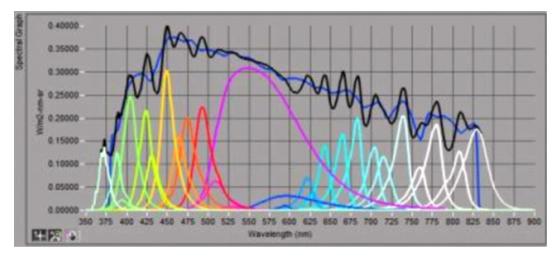

Goptica's spectral tunable multi-channel LED light source system is a simulator for achieving high-quality light sources. Output any color temperature light source with high color rendering index (CRI) and low metamerism index (MI). Under the premise of ensuring the same light quality, the spectral adjustable multi-channel LED light source system can achieve overall brightness adjustment and individual channel single-type LED brightness adjustment. The luminous intensity of each channel within the light source can be adjusted arbitrarily to freely design the required light source, providing adjustable wavelengths from ultraviolet, visible to infrared. With a lifespan several times longer than that of traditional fluorescent lamps, the elaborately designed heat dissipation system ensures the excellent stability of the light source.
|
|  |
| Typical applications |
|
• Calibration of ambient light sensors
• Calibration of automotive cameras • CMOS image sensor testing • Lens test • Mobile phone camera calibration • Photodiode response test
• RGB sensor testing • Spectral/light source simulation • Professional and industrial photography |
|  |
Product parameters
| Number of LED channels | 30-40 channels |
| Spectral range | 300-1100nm |
| Driving mode | Constant current drive, current regulation for brightness output |
| Luminance resolution | Greater than 8-bit adjustment resolution |
| Preheating time | 5 min |
| LED lifespan | 10000 hours |
| Output light source type | Spectral curves of standard light sources such as standard daylight D65, D50 and A light sources, manually input spectral curves |
| Color rendering index | The color rendering index CIE Ra both reached 98, and the metamerism index MIvis both reached grade A (<0.25)
|
| Adjustable range of color temperature | Color temperature CCT: 2000-10000K, or monochrome output |
| Radiation output | The full-band integral radiation luminance can reach 120W/(m2sr)@ (400nm~900nm) |
| Brightness stability | <±0.5%
|
| Color temperature stability | <±100K |
| Uniformity | ＞ 98% |
| Output measurement | Calibration can be traced back to the National Institute of Metrology (NIM) of China, and a metrological calibration report is provided |
