Multimode fiber-coupled laser (643nm)
 |
|
This laser adopts semiconductor laser chips. The professionally designed driver and temperature control circuit ensure the safe operation of the laser through temperature control. The output power and spectrum are stable, and it features multi-mode fiber output.
Product brochure： |
|
Feature
· The spot quality is excellent
· Spectral and power stability
· Desktop and modular packaging
|
|
Application
· Laser spot indication · Laser imaging · Device testing
|
|
Product parameter
Optical Parameter | Units | Typical Values | Notes |
Wavelength | nm | 405~940（in the attached list） |
|
| Wavelength accuracy | nm | ±5 |
|
Working Mode | - | Continuous-wave |
|
Maximum Output Power | mW | 150 | By wavelength |
OP regulation range | - | 10~100% |
|
S-term FS(15 min) | dB | ≤ ±0.02 | ~≤±0.5% |
L-term FS(8 h) | dB | ≤ ±0.05 | ~≤±1.2% |
Tail Fiber Type | - | 105/125μm multimode optical fiber |
|
Connector Type | - | FC/APC |
|
| Polarization | - | Random
|
|
| Laser grade | - | Class 3 |
|
Electrical&environmental | Basic | Module |
Control Mode | Button | RS232 |
Communication Interface | Optional
| DB9 Female |
Power Supply | AC100~240V , <30W | DC5V3A or DC12V3A |
Dimensions | 260(W)×280(D)×120(H)mm | 125(W)×150(D)×20(H)mm |
Operating temperature | -5~+35° |
Operating humidity range | 0~70% |
Ordering Information
FL | Wavelength(nm) | Pout(mW) | Tail Fiber Type |
Package Type |
| 643 | 150 | MM= Multimode Fiber | M=Module B=Basic |
|

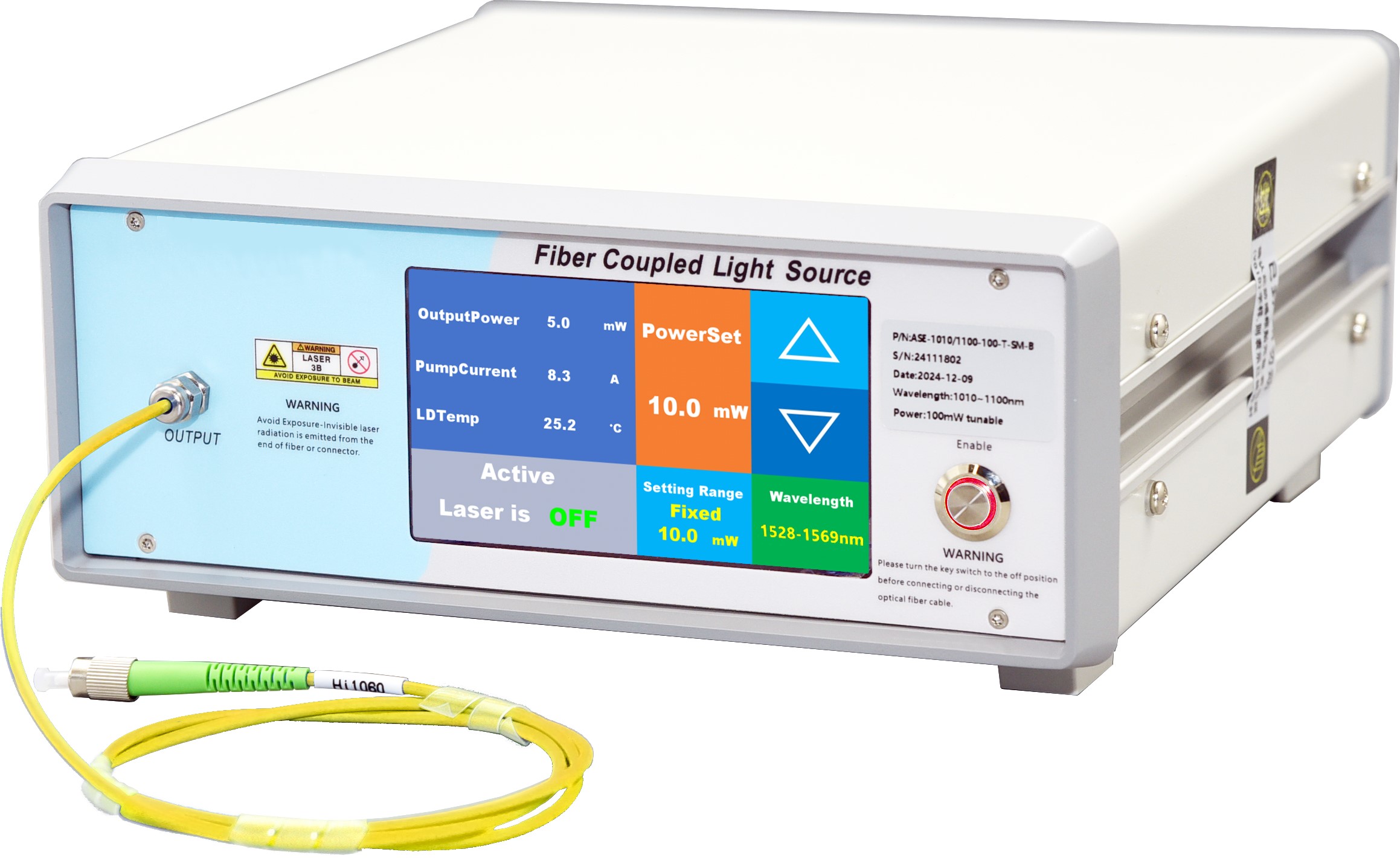

Product Picture |
