Single Mode Fiber Coupled Laser(1018nm)
 |
This laser adopts semiconductor laser chips. The professionally designed drive and temperature control circuit ensures the safe operation of the laser, and the output power and spectrum are stable. It is suitable as a seed laser for high-power lasers and can also be used for the production and testing of optical devices. It is available in desktop or modular packaging.
Product Manual： |
|
| Feature
· High output power · Spectral stability · Single-mode optical fiber output |
Application
· Seed laser · Optical testing · Research on nonlinear optics
|
|
Product parameters
Optical Parameter | Units | Typical Values | Notes |
Wavelength | nm | 1018 |
|
| Wavelength accuracy | nm | ±1 |
|

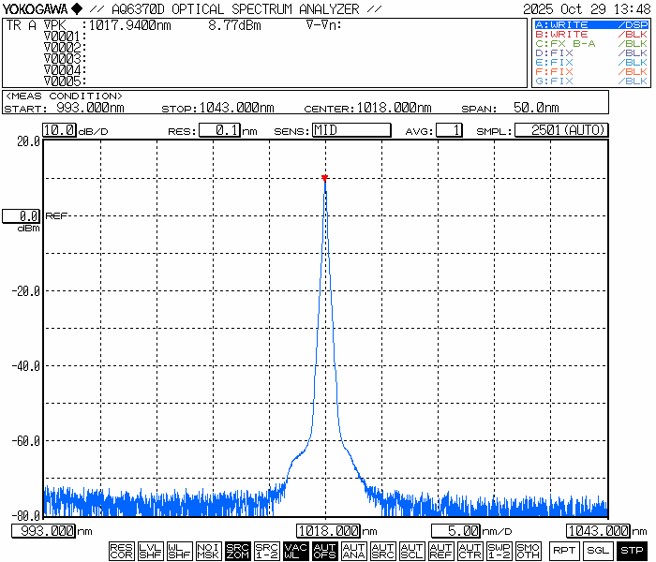

| Spectral width | nm | ＜0.5 |
|
Working Mode | - | CW | Continuous-wave |
Max Output Power | dBm | 30/33/37 |
|
| W | 1/2/5 |
|
OP regulation range | - | 10~100% |
|
S-term FS(15 min) | dB | ≤ ±0.05 | Equivalent≤±1% |
L-term FS(8 h) | dB | ≤ ±0.1 | Equivalent≤±2% |
Polarization state | - | Random |
|
Polarization extinction ratio PER | dB | - |
|
| Type of optical fiber | - | Hi1060 |
|
| Optical fiber connector | - | FC/APC | Only for output testing |
Electrical and environmental parameters | Desktop |
Control mode | Touch screen /RS232 serial port communication |
Communication interface | DB9 Female |
Power supply | AC100~240V , <150W |
Size or code | B3 |
Operating temperature and humidity range | -5~+35°；0~70% |
Ordering information
FL | Working wavelength(nm) | Output power(mW) | Output the type of pigtail fiber |
Encapsulation form |
| 1018 | 30/33/37 | SM | B3=Desktop |
|
