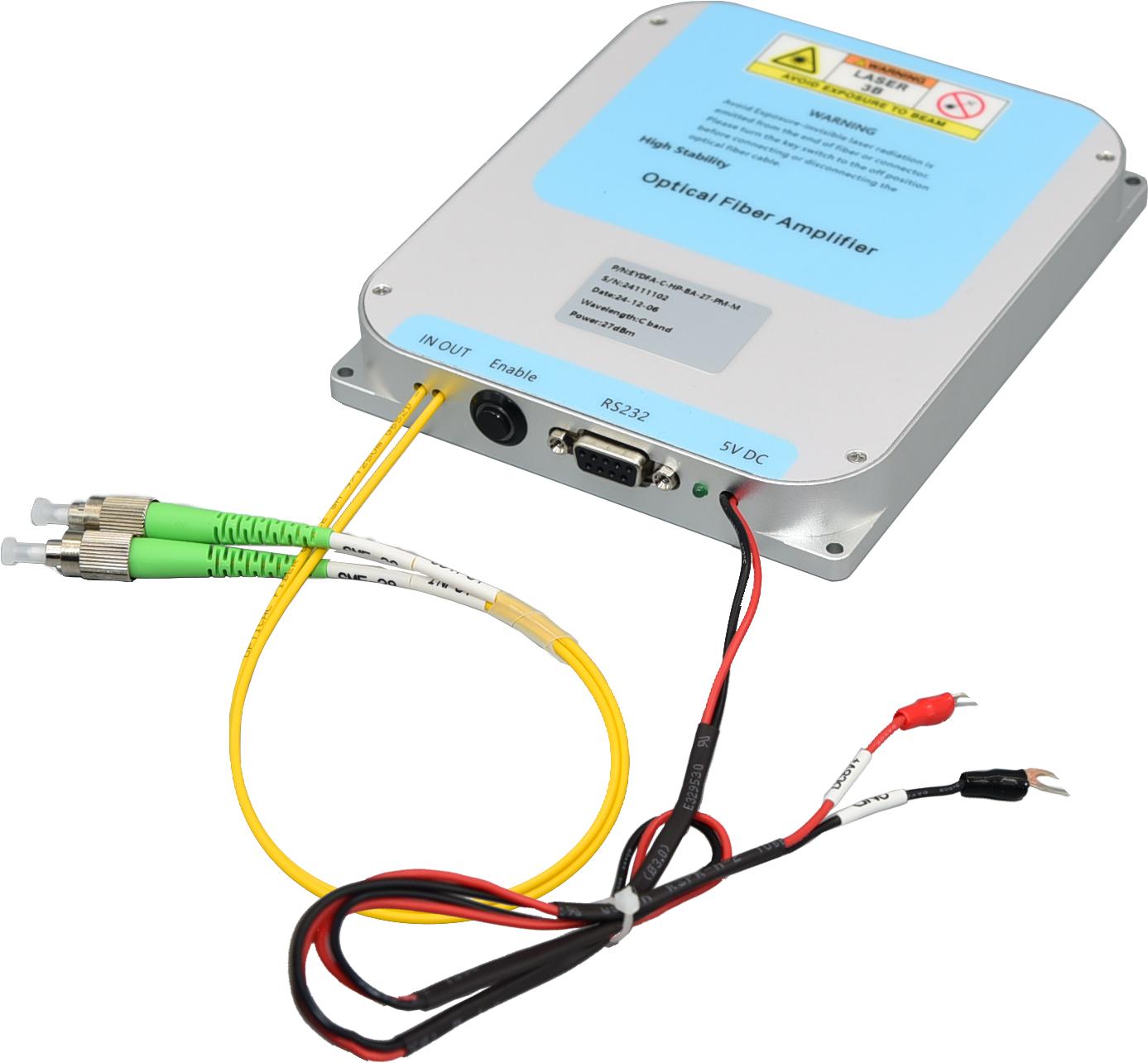

• Semiconductor Optical Amplifier-1.jpg

           Semiconductor Optical Amplifier (SOA) is specifically designed for power amplification of optical signals across O-band, S-band, C-band and other relevant wavelength ranges. It offers a typical small-signal gain of ≥25 dB, along with key features including high gain, a wide operating wavelength range, low power consumption, and low polarization-dependent loss. SOA is suitable for applications in lidar, coherent detection, optical fiber sensing, optical communication,and other field, and can also be customized according to customers' application requirements.

    Semiconductor Optical Amplifier-2.jpg


    Features
    Applications
    Wide Spectrum Range
    Fiber Sensing
    High Output Power
    Fiber Laser
    Low noise figure
    Laboratory


    Optical Parameters

    Unit

    Typical Value

    Remarks

      Operating Wavelength λ

    nm

    1310


      Bandwidth(-3dB)

    nm

    ≥100

    @Pin=-10dBm,1310nm

      Input Signal Power

    dBm

    -25~+5


      Small-Signal Gain

    dB

    25

    @Pin=-25dBm,1310nm

      Saturation Output Power

    dBm

    ≥13

    @Pin=5dBm,1310nm

      Noise Figure

    dB

    ≤8


      Output Isolation

    dB

    ≥30


      Optical Power Monitoring

    -

    Input/Output power


      Fiber Type/Fiber Connector

    -

    SMF-28

    PM1550

    FC/APC Connector

      Polarization Dependent Gain

    dB

    ≤1

    -


      Polarization Mode Dispersion

    ps

    ≤0.5

    -


      Polarization Extinction Ratio

    dB

    -

    ≥23


      Control mode

    -

    ACC/APC



    General Parameters

    Benchtop

    Module

    Control function

    Touchscreen/RS232 serial port

    RS232 serial port communication

    Remote Control Port

    DB9 Female

    DB9 Female

    Power Supply

    AC 100~240V ,30W

    DC 5V,15W

    Dimensions

    B1

    M20

    Operating Temperature

    -5 ~ 35°C

    Operating Relative Humidity

    0~70%


    Ordering Information/ Product Code

    SOA

    Wavelength/nm

    Output Power/dBm

    Fiber

    Packaging


    1550

    13=13dBm

    SM=SMF-28

    PM=PM1550

    M20=Module

    B1=Benchtop

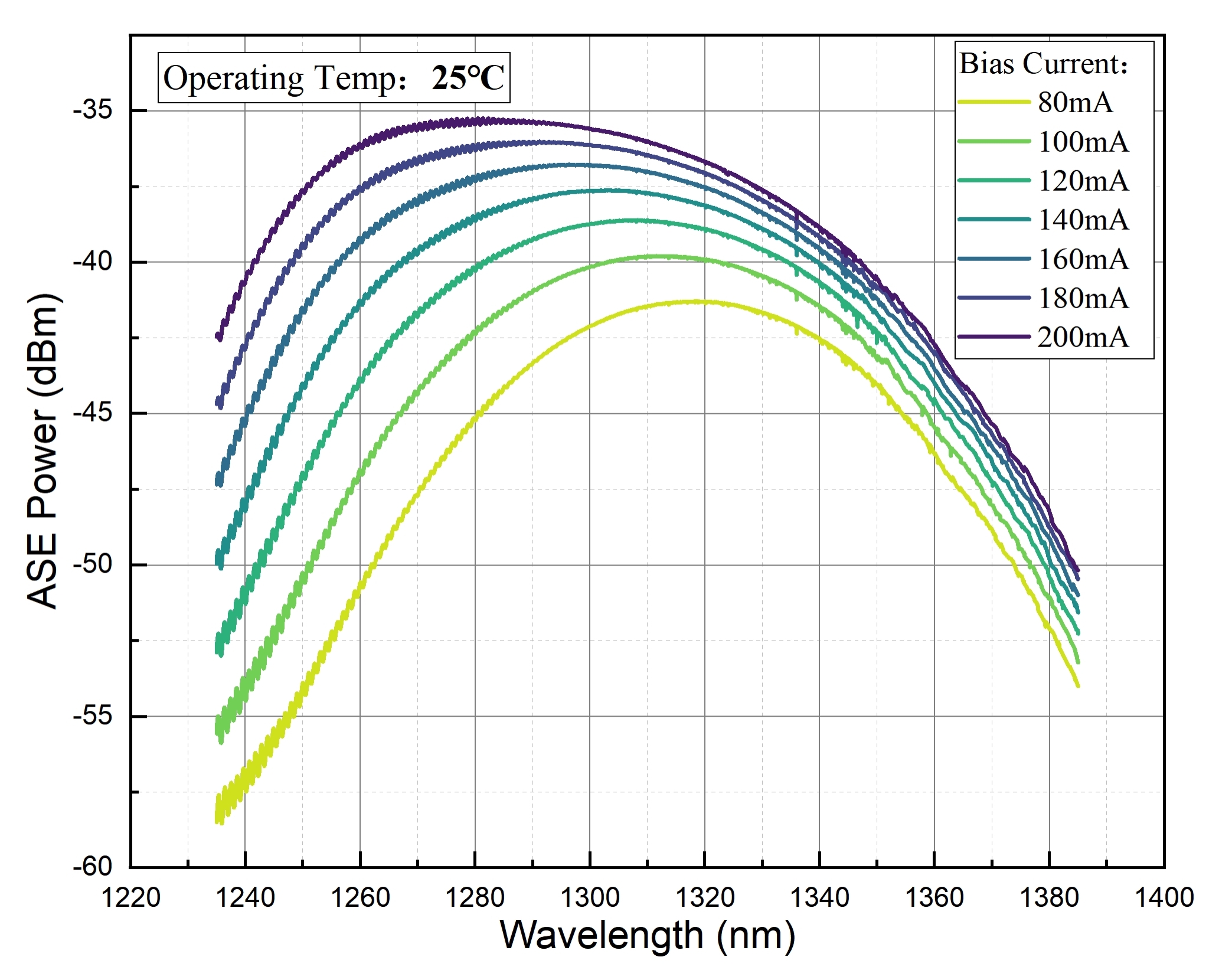

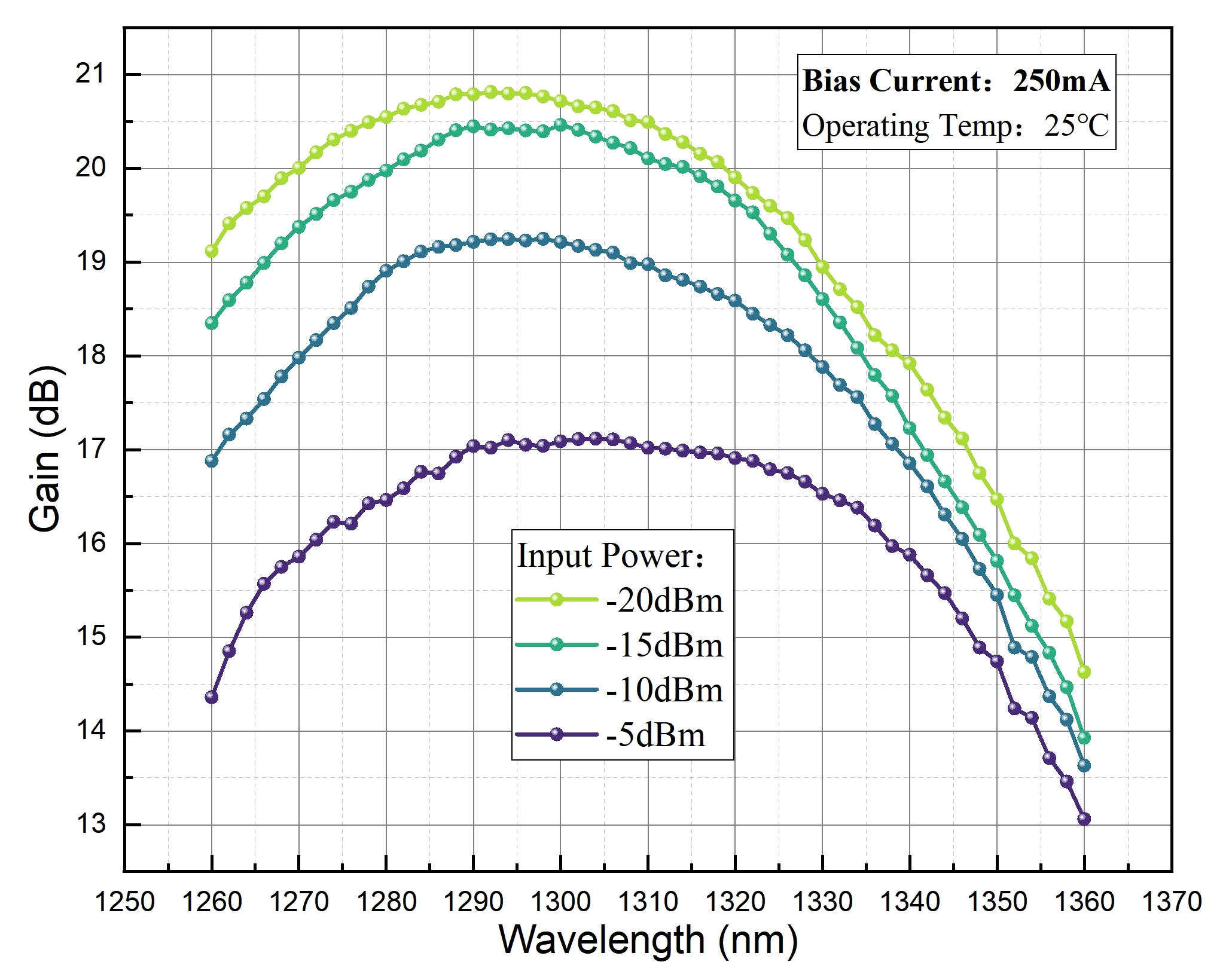

    ASE spectraOptical Gain Spectra
    Semiconductor Optical Amplifier-3.jpgSemiconductor Optical Amplifier-4.jpg

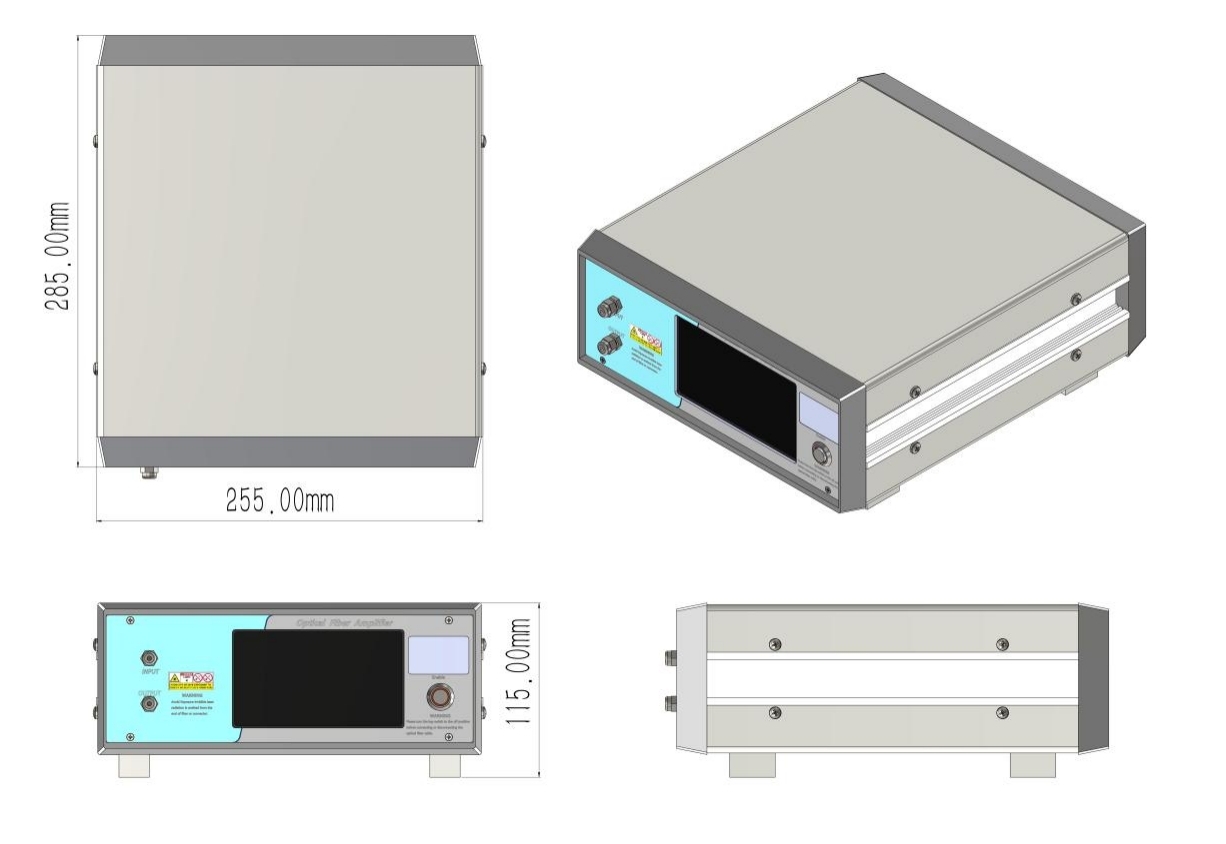

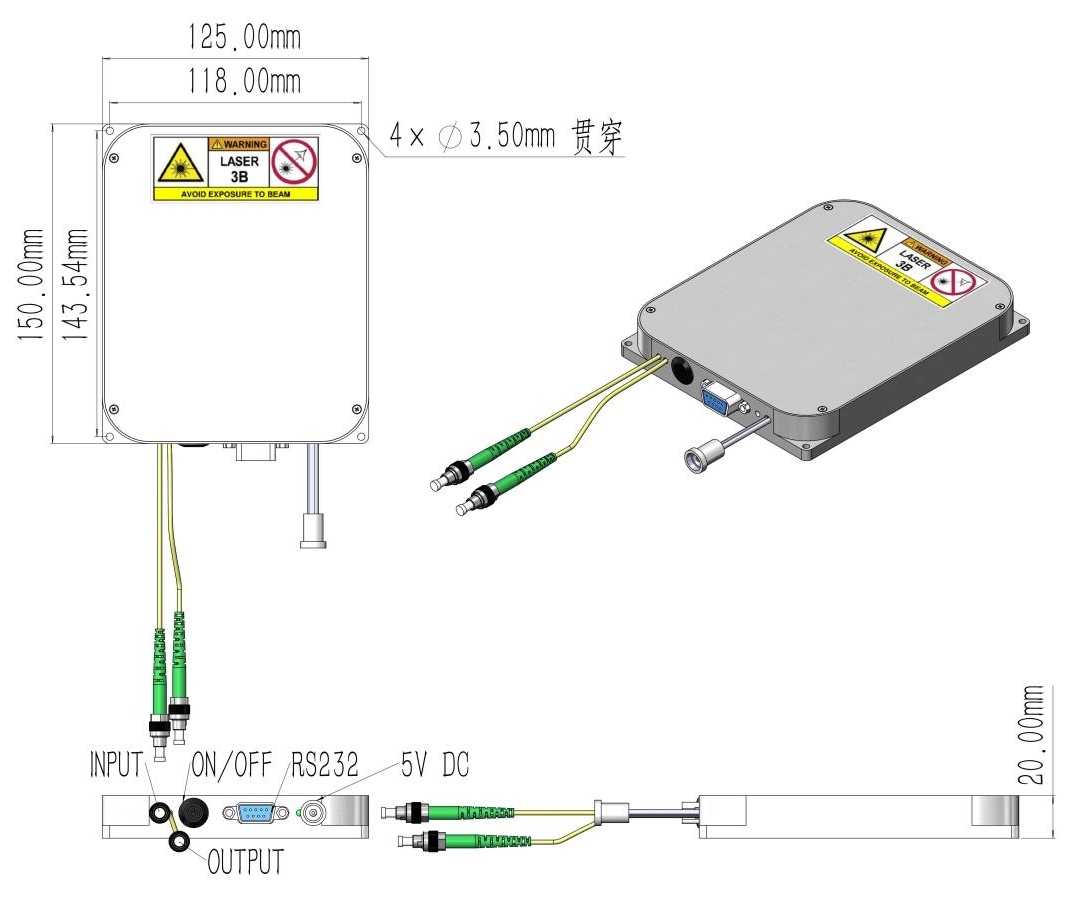

    Product Dimension Drawing


    Semiconductor Optical Amplifier-5.jpgSemiconductor Optical Amplifier-6.jpg
    M20 Module M20Bench-top:B1
