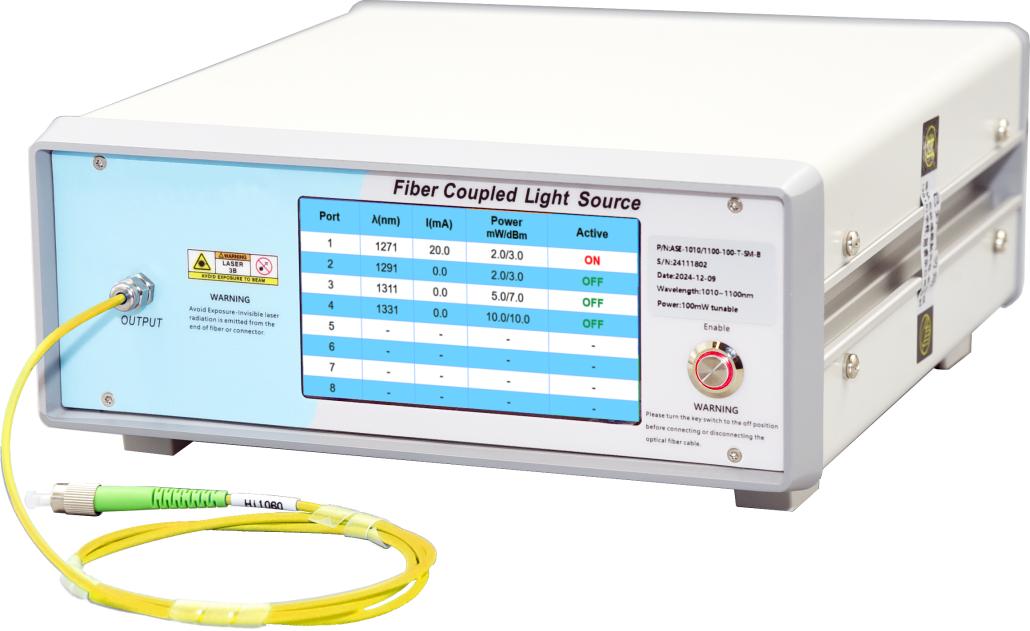

• 格物-多通道光纤光源

          Multi-channel benchtop light sources are commonly used equipment in scientific research and production testing. They can provide multi-channel output with multiple laser wavelengths or single-channel output with multiple wavelengths. Its wavelength covers multiple wavelengths including visible light and near-infrared from 405 to 1650nm, with stable spectrum and power. This device features a rich selection of wavelengths, independent adjustment of parameters for each channel, convenient operation and high safety. With these advantages, multi-channel benchtop light sources are widely used in fields such as optical fiber sensing, optical device testing, biomedical imaging, semiconductor inspection, and machine vision inspection, meeting the demands of various scenarios for stable multi-channel spectra.



    产品手册:



    特性应用
    3 channels/Adjustable functions/High stabilityOptical fiber sensing /IL testing /RL testing


    光学指标

    单位

    典型值

    备注

      激光器数量

    -

    4


      输出光纤通道数

    -

    1或4


      波长

    nm

    1271/1291/1311/1331


      波长公差nm±2

      光谱宽度

    nm

    ≤0.1


      输出光功率

    mW

    ≥10


      功率调节范围

    -

    2~10


      短期稳定度(15分钟)

    dB

    ≤ ±0.02

    等效≤±0.5%

      长期稳定度(8小时)

    dB

    ≤ ±0.05

    等效≤±1.2%

      偏振态

    -

    随机


      光纤和连接头

    -

    SMF-28

    FC/APC

    电气和环境参数

    产品封装形式

    台式

    控制方式

    触屏/RS232串口通信

    通信接口

    DB9 Female

    供  电

    100~240V AC, <30W

    尺  寸(mm)

    255(W)×322(D)×115(H)

    工作温度范围

    -5~+35°C

    工作湿度范围

    0~70%

    订购信息/型号  MC-FL-3-3-1310/1310/1310-20-SM-B2

    产品类型

    波长通道数

    输出光纤通道数

    波长(nm)

    功率(mW)

    输出尾纤类型

    封装形式

    MC-FL

    4

    1/4

    1271/1291/1311/1331

    10

    SM=单模非保偏

    B2=台式

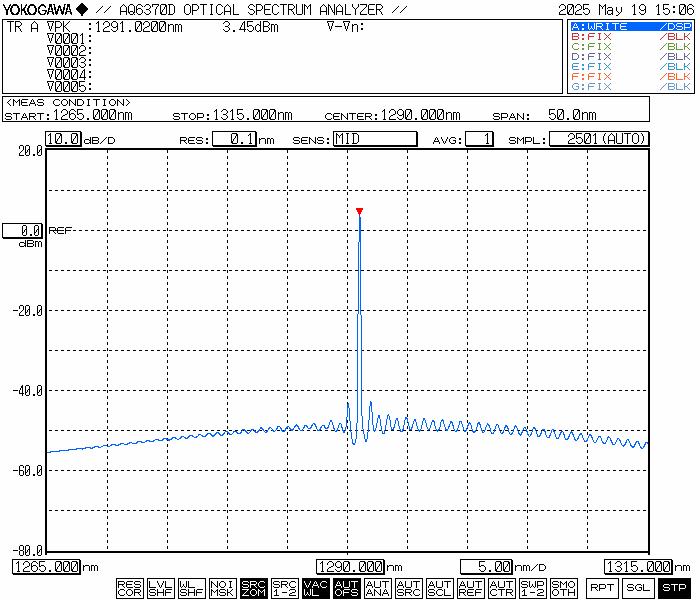

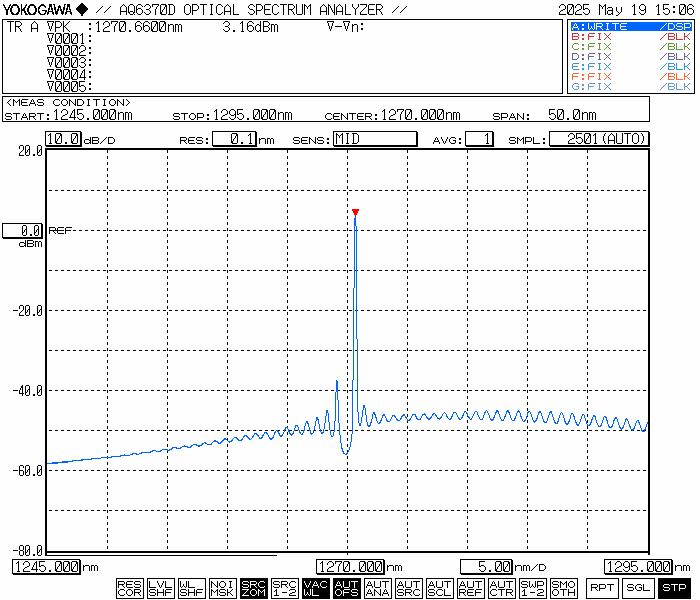

    Typical wavelength spectrum



    1271nm
    1291nm




    1311nm
    13371nm

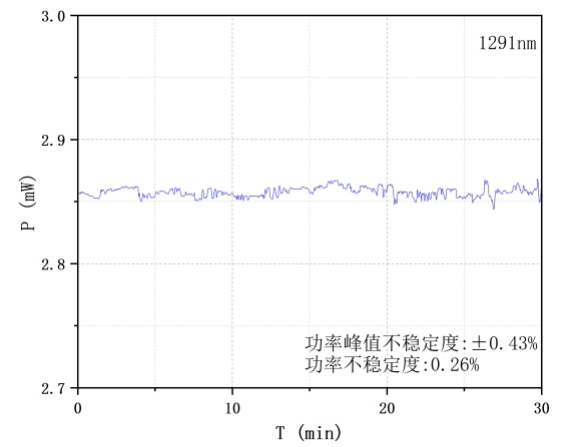

    Typical optical power stability test

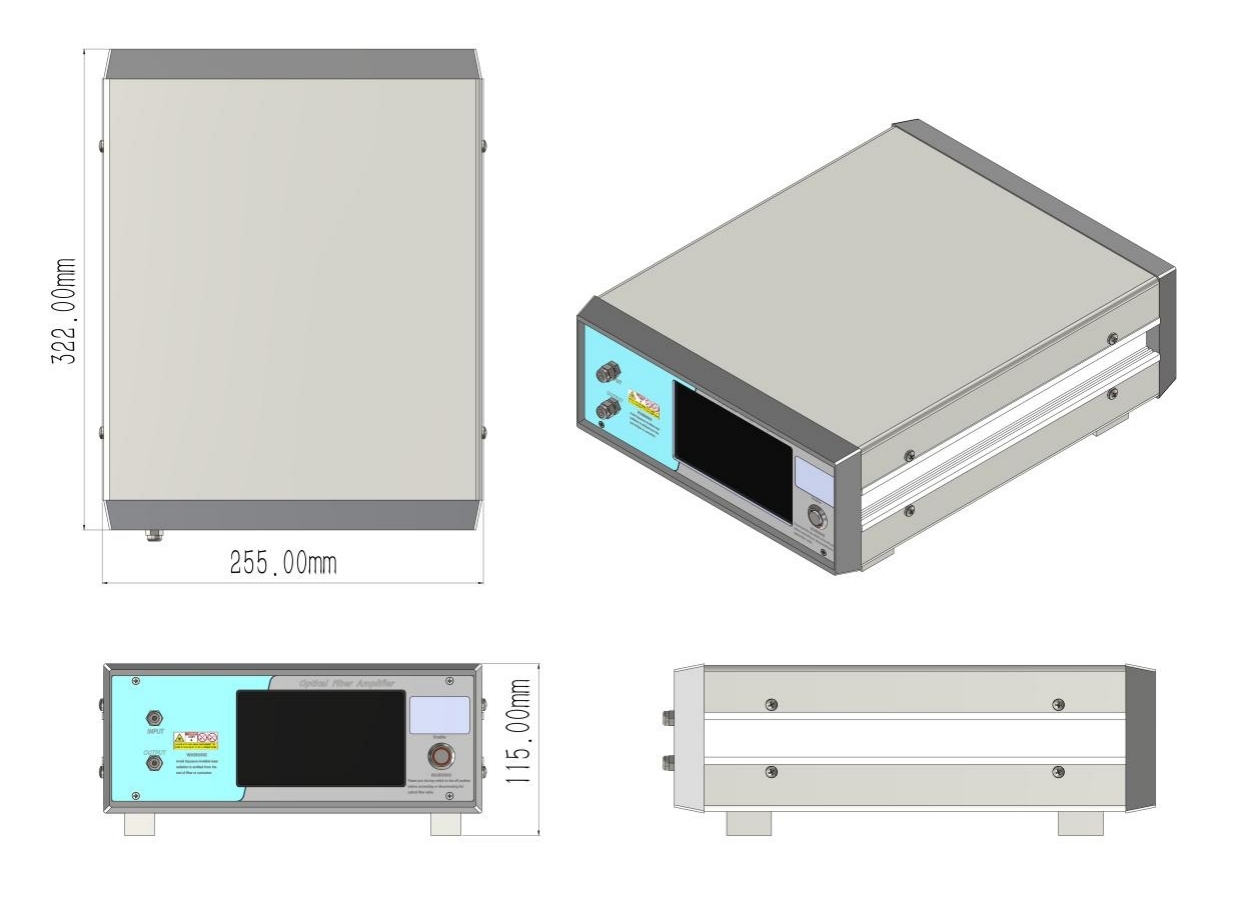

    Dimensions 255(W)×322(D)×115(H)mm
