C-LOX3 Series - Multi-channel Inertial Motor Drive Controller
|
The C-L0X.3B model controller of Gewu Optics supports PMIN series piezoelectric actuator control, and with servo, can achieve closed-loop motor motion. The C-L0X.3B model controller adopts a grating ruler acquisition control method for motor displacement control. The upper computer can modify the grating ruler acquisition parameters through fiber optic communication to change the displacement distance of the motor; By modifying the output frequency, functions such as controlling motor speed can be achieved. The C-L0X.3B model controller adopts a modular design, which can achieve universal expansion as needed.
Product manual：
|
| Characteristic： |
|
- Communication interface： 1)Supports RS485, Modbus RTU protocol; 2)Supports Ethernet data communication and TCP/IP protocol. - Controller interface： - Connect to a subdivision board with a grating ruler subdivision module through the DB37 interface Perform motor closed-loop control.
|
|

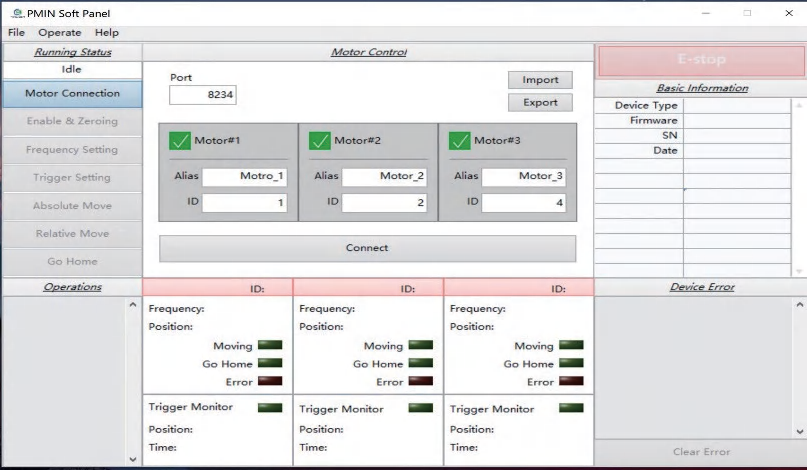

| Host computer DEMO： |
|
|

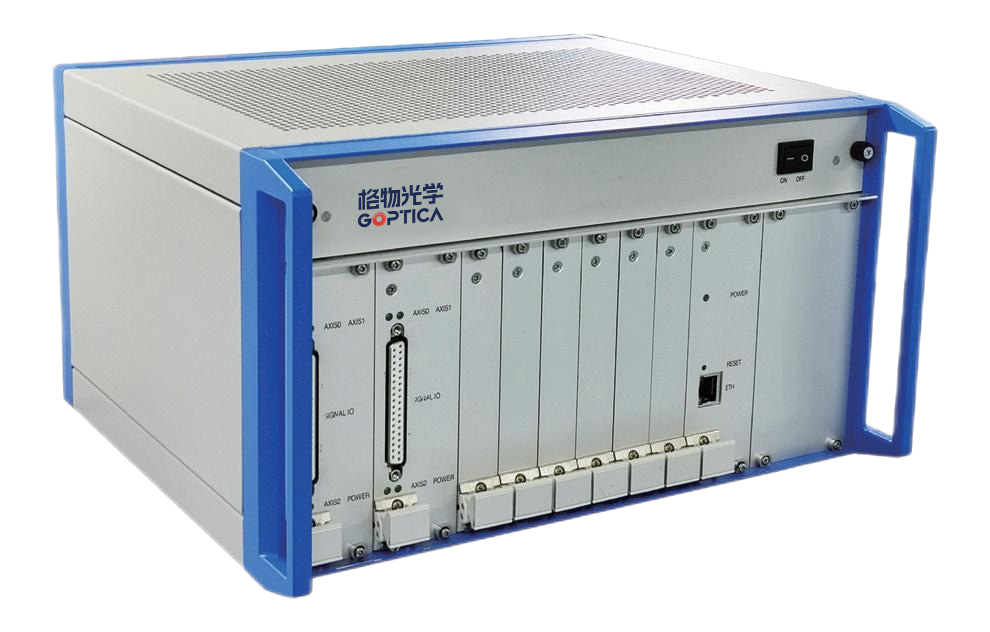

Product Picture |
Product Model |
Drawings And Specifications |
Operation |
