Multi wavelength fiber coupled LED light source (up to 8 wavelengths)

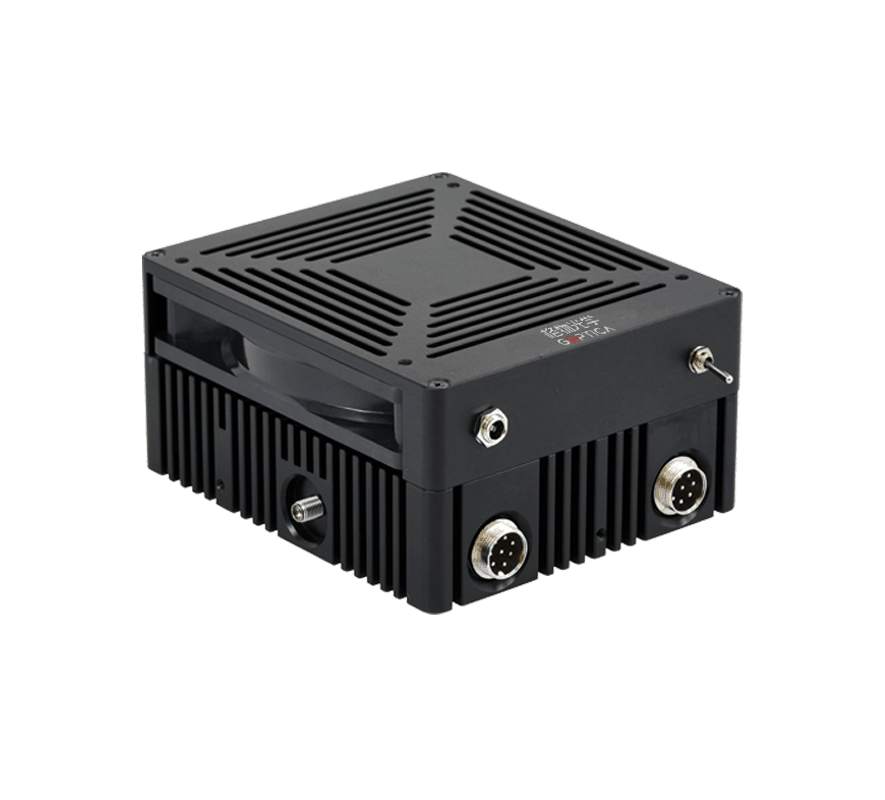

The Gewu Optical Multi wavelength Fiber Coupled Light Source adopts the latest LED technology and Goptica's proprietary beam combination and coupling optical devices. Up to eight (8) LEDs are coherently combined into a multimode fiber with the highest efficiency. Each LED can be powered individually or simultaneously, making the WFC series a new type of light source with adjustable spectra.

The light source offers two configurations: standard configuration and high-power configuration. The standard configuration uses a neutral beam combiner. The standard configuration has the advantages of low cost and the most flexible wavelength planning. In the standard configuration, any wavelength and white color can be combined. However, for applications that require the highest possible output power, a high-power configuration should be chosen, where an efficient dichroic beam splitter is used to combine different wavelengths. Due to the fact that not all possible dichroic beam splitters are in stock, certain wavelength combinations may require customization. Please contact us and provide your detailed wavelength plan to obtain a quote for customized high-power configurations.

There are multiple LED wavelengths to choose from, ranging from 365nm to 940nm, with white color. The selected LED is installed in the light source chassis in the factory. Fiber optic coupling is performed through standard SMA ports, so customers can use different fibers with LED light sources according to their specific application requirements. SMA connector fiber jumpers have various core diameters and numerical apertures.

The 4-channel light source includes a 5-foot cable, and the 8-channel light source includes two such cables. Each cable has an 8-pin locking connector at one end that can be plugged into a light source, and four pairs of bare wire terminals at the other end. Each pair of terminals should be connected to a separate channel of the LED controller. Users can use Mightex multi-channel LED controllers or other constant current sources to drive installed LEDs individually or simultaneously. The light source is equipped with a cooling fan with a built-in heat sink. When two or more wavelengths are operating at full power, the fan should be turned on to maintain the low temperature of the LED junction to prevent damage to the LED due to overheating. Contains a separate power source to drive the cooling fan.

The Goptica 4-channel multi wavelength light source can be ordered with 2 and 4 wavelengths, while the 8-channel light source can be ordered with 6 and 8 wavelengths. In standard configuration (8-channel light source not supported due to low efficiency), the output power of each wavelength decreases with the increase of the total number of wavelengths, while in high-power configuration, the output power does not change significantly with the number of wavelengths.

Do you need to customize multi wavelength fiber coupled LED light sources?
Please send an email to sales@goptica.com

Important note: (1) LEDs can only be driven by a constant current source and cannot be driven by a voltage source (such as a battery or AC/DC power supply); (2) Before applying current to the LED, be sure to verify the rated current of the LED and always ensure that no current exceeding the rated current of the LED is applied.

Features

Application

- Combine 2, 4, 6, or 8 LEDs into a single fiber optic output

- No moving parts in the optical path

- Interchangeable optical fibers with SMA connectors

- Independent and simultaneous control of LEDs

- Efficient dichroic beam combiner

- Wide range of available wavelengths: UV/VIS/NIR and white light

- Cooling fan can achieve maximum strength stability

- Optional multi-channel LED controller

- Photogenetics

- Universal light source

- Microscope Illuminator

- Fast spectrum tuning

Product specifications and parameters

Product manual:

High power configuration

Wavelength code	Wavelength (nm)	Iop(mA)	Vop(V)	Typical radiation flux (mW) (1)
Wavelength code	Wavelength (nm)	Iop(mA)	Vop(V)	2 wavelengths	4wavelengths	6 or 8 wavelengths
0365	365	1000	3.65	3.6 (7.2)	3.2 (6.4)	2.9 (5.8)
0380	380	1000	3.2	2.3 (4.6)	1.9 (3.8)	1.7 (3.4)
0385	385	1000	3.65	4.8 (9.6)	4.3 (8.6)	3.9 (7.8)
0390	390	1000	3.1	4.8 (9.6)	4.3 (8.6)	3.9 (7.8)
0395	395	1000	3.1	5.1 (10.2)	4.1 (8.2)	3.7 (7.4)
0400	400	1000	3.8	4.4 (8.8)	4.0 (8.0)	2.0 (4.0)
0405	405	1000	3	6.2 (12.4)	5.0 (10.0)	4.5 (9.0)
0410	410	1000	3	6.2 (12.4)	5.0 (10.0)	4.5 (9.0)
0415	415	1000	3	6.1 (12.2)	4.9 (9.8)	4.4 (8.8)
0420(discontinued)	420	500	3.8	1.6 (3.2)	1.4 (2.8)	1.3 (2.6)
0420(discontinued)	420	1000	3.8	4.1 (8.2)	3.4 (6.8)	3.1 (6.2)
0425	425	1000	3	5.3 (10.6)	4.3 (8.6)	3.8 (7.6)
0455	455	1000	3.9	5.6 (11.2)	5.1 (10.2)	4.5 (9.0)
0470	470	1000	3.9	6.0 (12.0)	5.4 (10.8)	4.9 (9.8)
0490	490	350	3.5	3.0 (6.0)	2.4 (4.8)	2.0 (4.0)
0505	505	1000	3.9	2.8 (5.6)	2.2 (2.2)	1.7 (3.4)
0530	530	1000	3.9	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
0560	560	700	3.9	1.5 (3.0)	1.3 (2.6)	1.0 (2.0)
0590	590	700	2.2	1.3 (2.6)	1.2 (2.4)	1.1 (2.2)
0617	617	1000	3.9	5.2 (10.4)	4.7 (9.4)	4.2 (8.4)
0625	625	1000	3.9	6.1 (12.2)	5.5 (11.0)	5.0 (10.0)
0656	656	1000	2.7	5.2 (10.4)	4.7 (9.4)	4.2 (8.4)
0680	680	600	2.7	1.0 (2.0)	0.8 (1.6)	0.5 (1.0)
0700	700	500	2.1	0.4 (0.8)	0.2 (0.4)	90µW (180µW)
0720	720	600	2.2	0.6 (1.2)	0.4 (0.8)	0.2 (0.4)
0740	740	1000	2.9	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
0780	780	800	2.5	1.6 (3.2)	1.1 (2.2)	0.7 (1.4)
0810	810	800	2.2	1.0 (2.0)	0.8 (1.6)	0.5 (1.0)
0850(discontinued)	850, 2W	1000	2.1	3.2 (6.4)	2.9 (5.8)	2.6 (5.2)
0850	850, 3W	1000	3	4.8 (9.6)	4.3 (8.6)	3.9 (7.8)
0870	870	700	2	2.4 (4.8)	2.2 (4.4)	1.9 (3.8)
0940	940	1000	2.1	3.2 (6.4)	2.9 (5.8)	2.6 (5.2)
0980	980	500	1.4	0.3 (0.6)	0.1 (0.2)	80µW (160µW)
6500	glacier white 6,500K	1000	3.6	-	-	-
5500	cool white 5,500K	1000	3.9	-	-	-
4000	warm white 4,000K	1000	3.9	-	-	-

Due to variations in manufacturing processes and operating parameters such as temperature and current, the actual output of any specific LED may differ. The specifications are for reference only.

Standard configuration

Wavelength configuration	Wavelength (nm)	Iop(mA)	Vop(V)	Radiation flux 1(mW)
Wavelength configuration	Wavelength (nm)	Iop(mA)	Vop(V)	2wavelengths	4wavelengths
0365	365	1000	3.65	1.7	0.8
0380	380	1000	3.2	1.1	0.4
0385	385	1000	3.65	2.3	1.1
0390	390	1000	3.1	2.1	0.8
0395	395	1000	3.1	2.3	1.1
0400	400	1000	3.8	1.1	0.5
0405	405	1000	3	2.8	1
0410	410	1000	3	2.8	1
0415	415	1000	3	2.7	0.9
0420(discontinued)	420	500	3.8	0.8	0.4
0420	420	1000	3.8	1.8	0.5
0425	425	1000	3	2.4	0.9
0455	455	1000	3.9	2.7	1.3
0470	470	1000	3.9	2.9	1.4
0490	490	350	3.5	1.4	0.6
0505	505	1000	3.9	1.4	0.6
0530	530	1000	3.9	0.8	0.4
0560	560	700	3.9	0.7	0.3
0590	590	1000	3.9	0.6	0.3
0617	617	1000	3.9	2.5	1.2
0625	625	1000	3.9	2.5	1.2
0656	656	1000	2.7	2.5	1.2
0680	680	600	2.7	0.5	0.2
0700	700	500	2.1	0.2	90µW
0720	720	600	2.2	0.3	0.1
0740	740	1000	2.9	1.2	0.7
0780	780	800	2.5	0.7	0.3
0810	810	800	2.2	0.5	0.2
0850	850	1000	2.1	1.5	0.7
0870	870	700	2	1.1	0.5
0940	940	1000	2.1	1.5	0.7
0980	980	500	1.4	0.1	70µW
6500	glacier white 6,500K	1000	3.6	1.2	0.6
5500	cool white 5,500K	1000	3.9	1.2	0.6
4000	warm white 4,000K	1000	3.9	1.2	0.6

1. Due to variations in manufacturing processes and operating parameters such as temperature and current, the actual output of any specific LED may differ. The specifications are for reference only.
