U3CCD Series CCD Cameras

  • The U3CCD series camera is a high-performance USB 3.0 interface CCD camera, and its photosensitive chip uses Sony ExView HAD CCD chip. Its pixels range from 2.8 million to 12 million.

    The Sony ExView HAD CCD adopts a technology that can convert unconverted near-infrared light into image signals, expanding the imaging spectrum from visible light to near-infrared light, greatly improving the sensitivity of the sensor. When using the ExView HAD CCD chip, high brightness photos can also be obtained in dark environments. Moreover, the photoelectric conversion previously performed in the deep layers of the silicon wafer will leak out the scattered light to the vertical CCD part, which can also be received by the sensor, so the noise of the sensor is greatly reduced.

    The data transmission of U3CCD series cameras is achieved through the USB 3.0 fast transfer protocol interface, ensuring fast and stable video.

    The U3CCD series cameras are randomly equipped with advanced video and image processing software ToupView, providing multi platform SDKs such as Windows/Linux/OSX, and supporting native C/C++, C #/VB.net, Directshow, Twain control API.

    The above characteristics of U3CCD series cameras can be used for capturing ordinary bright field, weak light, or fluorescence field microscopic images.

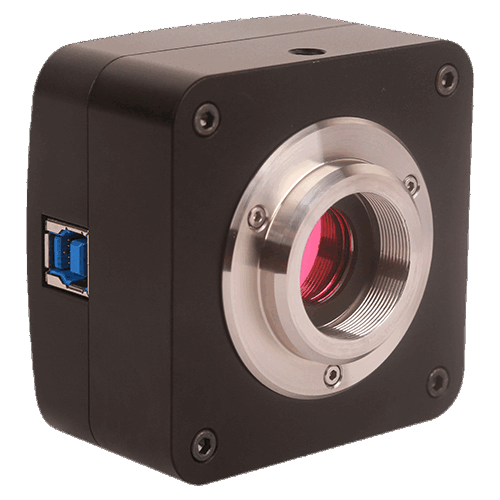

    格物光学7-U3CCD 系列 CCD相机-1.png



                                                                     Product manual:     产品手册.png



    Product Features

    · C-interface CCD camera using SONY ExView technology

    · Integrated CNC aluminum alloy shell

    · FPGA controls precise exposure for up to 1 hour, ensuring the capture of weak fluorescence images

    · USB 3.0 5Gbit/s interface ensures high video transmission speed





    · Ultra Fine color engine ensures precise color reproduction

    · Provide advanced video and image processing application software ToupView with the camera

    · Provide Windows/Linux/macOS/Android multi platform standard SDK





    Parameter

    Name

    Sensor model and size

    Pixel(μm)

    G light sensitivity

    dark current

    FPS/Resolution

    Sampling average

    Time of exposure

    U3CCD12000KPA

    NP112000A(New)

    12M/ICX834AQG(C)

    1“ (13.15x8.77)

    3.1x3.1

    420mv with 1/30s

    15.2mv with 1/30s

    3.6@4248x2836

    3.6@2124x1418

    1x1

    2x2

    0.06ms~1000s

    U3CCD12000KMA

    NM112000A(New)

    12M/ICX834ALG(M)

    1“ (13.15x8.77)

    3.1x3.1

    420mv with 1/30s

    12mv with 1/30s

    (F8.0)

    3.6@4248x2836

    3.6@2124x1418

    1x1

    2x2

    0.06ms~1000s

    U3CCD09000KPA

    NP109000A(New)

    9.0M/ICX814AQG(C)

    1“ (12.47x9.98)

    3.69x3.69

    580mv with 1/30s

    12mv with 1/30s

    4.4@3388x2712

    4.4@1694x1356

    1x1

    2x2

    0.06ms~1000s

    U3CCD09000KMA

    NM109000A(New)

    9.0M/ICX814ALG(M)

    1“ (12.47x9.98)

    3.69x3.69

    660mv with 1/30s

    12mv with 1/30s

    (F8.0)

    4.4@3388x2712

    4.4@1694x1356

    1x1

    2x2

    0.06ms~1000s

    U3CCD06000KPA

    NP106000A

    6.0M/ICX694AQG(C)

    1“ (12.48x9.99)

    4.54x4.54

    880mv with 1/30s

    8mv with 1/30s

    7.5@2748x2200

    14@2748x1092

    1x1

    0.06ms~1000s

    U3CCD06000KMA

    NM106000A

    6.0M/ICX694ALG(M)

    1“ (12.48x9.99)

    4.54x4.54

    1000mv with 1/30s

    8mv with 1/30s

    7.5@2748x2200

    14@2748x1092

    1x1

    0.06ms~1000s

    U3CCD02800KPA

    NP102800A

    2.8M/ICX674AQG(C)

    2/3“ (8.81x6.63)

    4.54x4.54

    800mv with 1/30s

    4mv with 1/30s

    15@1938x1460

    17@1610x1212

    18@1930x1092

    1x1

    0.05ms~1000s

    U3CCD02800KMA

    NM102800A

    2.8M/ICX674ALG(M)

    2/3“ (8.81x6.63)

    4.54x4.54

    950mv with 1/30s

    4mv with 1/30s

    15@1938x1460

    17@1610x1212

    18@1930x1092

    1x1

    0.05ms~1000s

    U3CCD01400KPB

    NP101400B(New)

    1.4M/ICX825AQA(C)

    2/3“ (8.88x6.70)

    6.45x6.45

    2000mv with 1/30s

    4.8mv with 1/30s

    25@1376x1040

    1x1

    0.07ms~1000s

    U3CCD01400KMB

    NM101400B(New)

    1.4M/ICX825ALA(M)

    2/3“ (8.88x6.70)

    6.45x6.45

    2000mv with 1/30s

    4.8mv with 1/30s

    25@1376x1040

    1x1

    0.07ms~1000s

    C: Color; M: Black and white;



    Hardware configuration

    Spectral response range

    380-650nm(with infrared cut-off filter)

    White balance

    ROI white balance/manual Temp-Tint adjustment

    Color restoration technology

    Ultra-Fine Color Processing Engine

    Capture/Control SDK

    Windows/Linux/macOS/Android Multi platform SDK(native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.)

    Depth of Position

    8 Bit / 14 Bit

    Recording method

    Images and videos

    Cooling method*

    Natural cooling

    Camera working environment

    Working temperature (Celsius)

    -10~ 50

    Storage temperature (Celsius)

    -20~ 60

    Working humidity

    30~80%RH

    Storage humidity

    10~60%RH

    Power supply

    The camera is powered through the USB 3.0 interface

    Software operating environment

    Operating system

    Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)

    OS X (Mac OS X)

    Linux

    Computer configuration

    CPU:Intel Core 2 2.8GHz or higher

    Memory: 2GB or larger

    USB interface: USB 3.0 high-speed interface, compatible with USB 2.0 interface

    Monitor: 17 "or above

    CD-ROM



    External dimensions

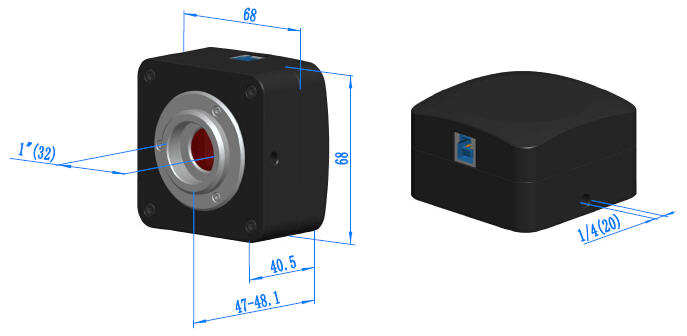

    Schematic diagram of the external dimensions of U3CCD series cameras. The camera housing is made of hard aluminum alloy mechanically processed and oxidized by CNC machining, and the overall appearance of the camera is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT or double-sided AR film, which mainly filters out infrared light waves in imaging and protects the camera sensor.


    格物光学7-U3CCD 系列 CCD相机-2.png

    Schematic diagram of the external dimensions of U3CCD series cameras



    Packing List

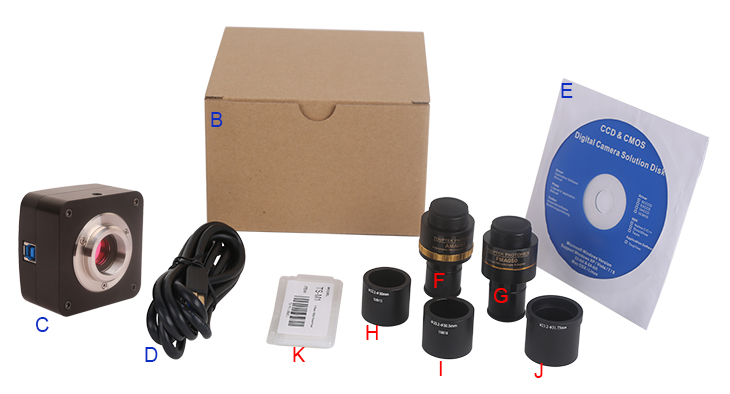

    格物光学7-U3CCD 系列 CCD相机-3.png


    Standard Packaging List

    A

    Packaging box specifications: L: 52cm W: 32cm H: 32cm (20pcs, 12-17Kg/carton), not shown in the above picture

    B

    Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.7~0.75 kg/box)

    C

    One U3CCD series camera

    D

    High speed USB 3.0 A to B gold-plated head data cable/2.0m

    E

    CD(Drivers and Applications, Ø 12cm

    Optional Accessories

    F

    Adjustable focus eyepiece tube adapter

    Dia.23.2mm eyepiece tube to C interface

    (Please choose one based on your camera or microscope)

    108001/AMA037

    108002/AMA050

    108003/AMA075

    108004/AMA100

    Dia.31.75mm eyepiece tube to C interface

    (Please choose one based on your camera or telescope)

    108008/ATA037

    108009/ATA050

    108010/ATA075

    108011/ATA100

    G

    Fixed eyepiece tube adapter

    Dia.23.2mm eyepiece tube to C interface

    (Please choose one based on your camera or microscope)

    108005/FMA037

    108006/FMA050

    108007/FMA075

    108008/FMA100

    Dia.31.75mm eyepiece tube to C interface

    (Please choose one based on your camera or telescope)

    108011/FTA037

    108012/FTA050

    108013/FTA075

    108014/FTA100

    Attention: For options F and G, please first determine your camera model (C interface, microscope camera or telescope camera), and the engineers at Gewu Optics will help you choose the appropriate microscope or telescope adapter based on your application;

    H

    108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

    I

    108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

    J

    108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

    L

    Micrometer

    106011/TS-M1(X=0.01mm/100Div.);

    106012/TS-M2(X,Y=0.01mm/100Div.);

    106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

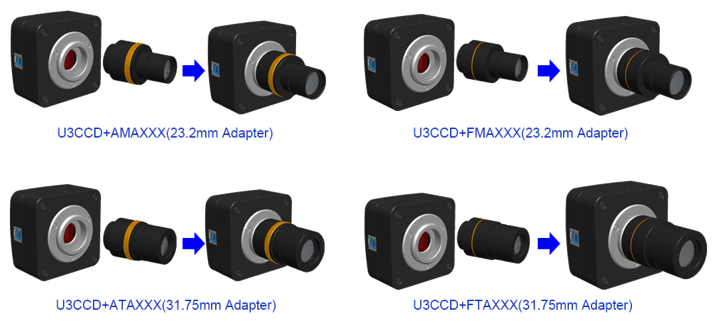

    Convert into microscope or telescope electronic eyepiece

    Extend

    Legend

    C-interface camera


    格物光学7-U3CCD 系列 CCD相机-5.png


    Machine vision; Medical imaging;

    Semiconductor equipment; Testing instruments;

    Document scanner; 2D code scanner;

    Web camera or video surveillance;

    Microscopic imaging;

    Microscope electronic eyepiece

    格物光学7-U3CCD 系列 CCD相机-6.png

    Telescope electronic eyepiece
