Product manual：

Product Features

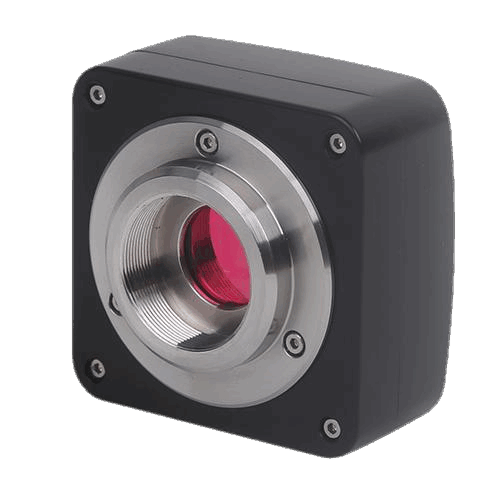

· C-interface CMOS USB2.0 camera with Sony Exmor CMOS back illuminated sensor

· Adopting column parallel A/D conversion technology to achieve ultra-low noise and low power consumption

· Hardware resolutions range from 1.2M to 8.3M, among others

· Real time 8/12 bit switching, any ROI size

· Zinc aluminum alloy precision CNC shell

· USB 2.0 interface ensures high transfer rate

· Ultra-Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

ECMOS08300KPA

EP608300A

8.3M/IMX274(C)

1/2.5”(6.22x3.50)

1.62x1.62

236mv with 1/30s

0.1mv with 1/30s

4@3840x2160

16@1920x1080

1x1

2x2

0.244ms~15s

ECMOS06600KPA

EP606600A

6.6M/IMX326(C)

1/2.9”(4.98x3.50)

1.62x1.62

236mv with 1/30s

0.1mv with 1/30s

5@3072x2160

6@2592x1944

6@3072x1728

7@2160x2160

1x1

1x1

1x1

1x1

0.244ms~15s

ECMOS05300KPA

EP605300A

5.3M/IMX178(C)

1/1.9“ (7.37x4.15)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

5.5@3072 x1728

35@1280x720

1x1

2x2

0.105ms~15s

ECMOS05000KPA

EP605000A

5.0M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mv with 1/30s

0.13mv with 1/30s

6.4@2592 x1944

26.7@1296x972

1x1

2x2

0.1ms~15s

ECMOS03100KPA

EP603100A

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

11.5@2048x1536

18.3@1920x1080

18.1@1600x1200

29.5@1024x768

1x1

1x1

1x1

2x2

0.105ms~15s

ECMOS02000KPA

EP602000A

2.0M/IMX290(C)

1/2.8“(5.56x3.13)

2.9 x2.9

1300mv with 1/30s

0.15mv with 1/30s

17@1920x1080

1x1

0105ms~15s

ECMOS01200KPA

EP601200A

1.2M/IMX224(C)

1/3“(4.80x3.60)

3.75 x3.75

2040mv with 1/30s

0.15mv with 1/30s

27@1280x960

54@640x480

1x1

2x2

0.105ms~15s

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/ Vista / 7 / 8 /10 /11(32 & 64 bit)

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 3.0 high-speed interface or USB 2.0 interface

Monitor: 17 "or above

CD-ROM

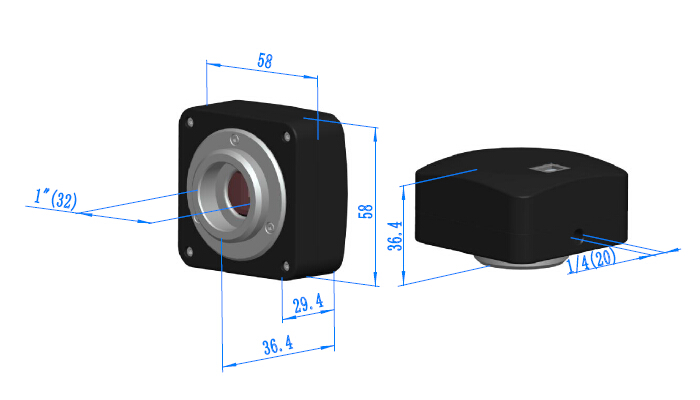

Schematic diagram of the external dimensions of ECMOS series cameras. The camera housing is made of hard zinc aluminum alloy processed by CNC machining, which is beautiful and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT or dual AR film, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Outline dimension diagram of ECMOS series camera

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.5~0.55kg/small box)

C

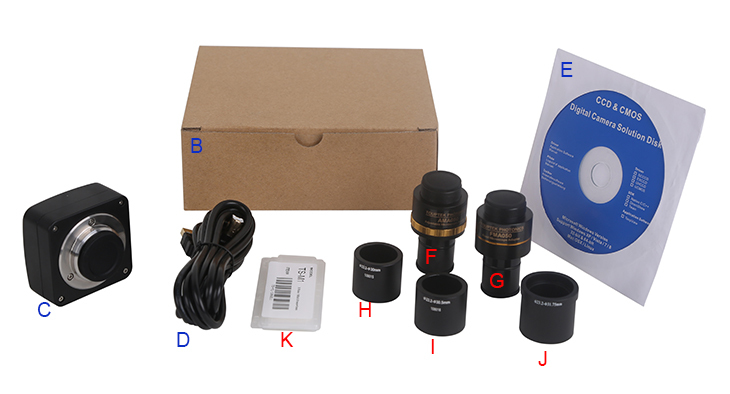

One ECMOS series camera

D

High speed USB 2.0 A to B gold-plated head data cable/2.0m

E

CD (Drivers and Applications, Ø 12cm)

Optional Accessories

F

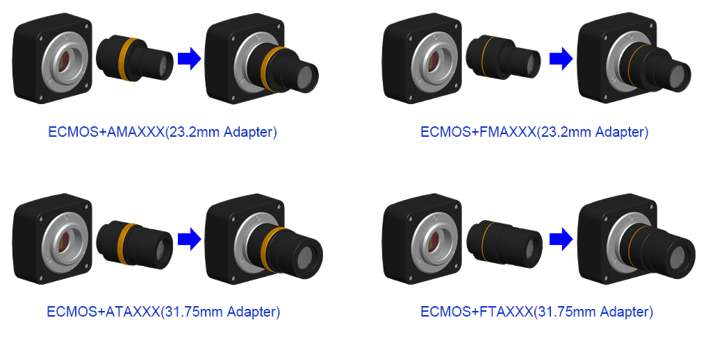

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)

106012/TS-M2(X,Y=0.01mm/100Div.)

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
