Product manual：

Product Features

· C-interface CMOS camera using Aptina CMOS sensor

· Resolution spans from 1.2M to 14M and other types

· The board is integrated with a large capacity storage chip to ensure synchronous data transmission, high frame rate, and stability

· Efficient heat dissipation structure ensures low-noise images

· USB 2.0 interface ensures high transfer rate

· Ultra-Fine color engine ensures precise color reproduction

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/macOS/Android multi platform standard SDK

LCMOS14000KPA

LP614000A

14M/MT9F002(C)

1/2.3”(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

2.7@4096x3288

10@2048x1644

35@1024 x822

1x1

2x2

4x4

0.4ms~2000ms

LCMOS12000KPA

LP612000A(2022)

12M/IMX577(C)

1/2.1“ (5.95x4.71)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3@3840x3040

11@1920x1516

47@960x758

1x1

2x2

4x4

0.4ms~2000ms

LCMOS10000KPA

LP610000A(2022)

10M/IMX577(C)

1/2.3“ (5.56x4.26)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3.3@3584x2748

12@1792x1374

53@896x684

1x1

2x2

4x4

0.4ms~2000ms

LCMOS09000KPA

LP609000A(2022)

9M/Special(C)

1/2.4“(5.41x4.05)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

3.5@3488x2616

13@1744x1308

55@872x654

1x1

2x2

4x4

0.4ms~2000ms

LCMOS08000KPA

LP608000A(2022)

8M/Special(C)

1/2.5“(5.06x3.79)

1.55x1.55

250mv with 1/30s

0.25mv with 1/30s

4@3264x2448

15@1600x1200

62@800x600

1x1

2x2

4x4

0.4ms~2000ms

LCMOS05100KPA

LP605100A(2022)

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lux

73dB

40dB

7.0@2592x1944

27.7@1296x972

100.5@648x486

1x1

2x2

4x4

0.2ms~2000ms

LCMOS03100KPB

LP603100B(2022)

3.1M/IMX123(C)

1/2.8“ (5.12x3.84)

2.5x2.5

600mv with 1/30s

0.15mv with 1/30s

11.5@2048x1536

29.5@1024x768

1x1

2x2

0.2ms~2000ms

LCMOS01300KPA

LP601300A

1.3M/MT9M111(C)

1/3“(4.60x3.70)

3.6x3.6

2.1V/lux-sec

68.2dB

45dB

15@1280x1024

26@640x512

48@320x256

1x1

2x2

4x4

0.14ms~2000ms

LCMOS01200KPB

LP601200B

1.2M/AR0130(C)

1/3“(4.80x3.60)

3.75 x3.75

5.5v/lux-sec

85.3dB

44dB

28@1280x960

30@640x480

1x1

2x2

0.4ms~2000ms

LCMOS10000KPA

LP610000A

10M/MT9J003(C)

1/2.3“ (5.98x4.59)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

3.7@3584x2748

13@1792x1374

35@896 x684

1x1

2x2

4x4

0.4ms~2000ms

LCMOS09000KPB

LP609000B

9M/Special(C)

1/2.4“(5.83x4.37)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

3.9@3488x2616

15@1744x1308

47@872 x654

1x1

2x2

4x4

0.4ms~2000ms

LCMOS08000KPB

LP608000B

8M/Special(C)

1/2.5“(5.45x4.09)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

4.4@3264x2448

17@1600x1200

55@800x600

1x1

2x2

4x4

0.4ms~2000ms

LCMOS05100KPA

LP605100A

5.1M/MT9P001(C)

1/2.5“(5.70x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

6.8@2592x1944

18@1280x960

55@640x480

1x1

2x2

4x4

0.294ms~2000ms

LCMOS03100KPA

LP603100A

3.1M/MT9T001(C)

1/2“(6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

11.5@2048x1536

32@1024x768

45@680x510

1x1

2x2

3x3

0.244ms~2000ms

LCMOS03100KPB

LP603100B

3.1M/IMX036(C)

1/2.8"(5.12x3.84)

2.5x2.5

200mv with 1/30s

0.5mv with 1/30s

12@2048x1536

48@1024x768

48@680x510

1x1

2x2

3x3

0.244ms~2000ms

LCMOS02000KPB

LP602000B

2.0M/Special(C)

1/2.6“(5.12x3.84)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

16@1600x1200

40@800x600

1x1

2x2

0.244ms~2000ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

ROI white balance/manual Temp-Tint adjustment

Color restoration technology

Ultra-Fine Color Processing Engine

Capture and Control API

Windows/Linux/macOS/Android Multi Platform SDK

（Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain etc.）

Depth of Position

8 Bit

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through a USB interface

Software operating environment

Operating system

Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)

OS X (Mac OS X),Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 2.0 high-speed interface

Monitor: 17 "or above

CD-ROM

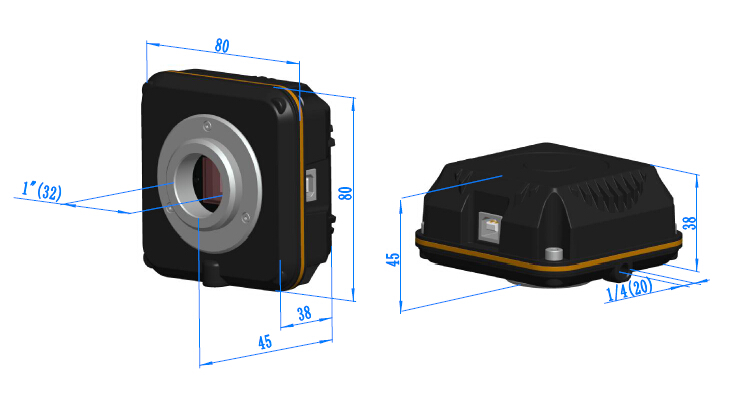

Schematic diagram of the external dimensions of LCMOS series cameras. The camera housing is made of hard aluminum alloy precision die-casting, which is beautiful and atmospheric. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Schematic diagram of the external dimensions of LCMOS series cameras

A

Packaging box specifications: L: 40cm W: 36cm H: 36cm (16pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L:16.4cm W:16.4cm H:9.6cm (0.7~0.8Kg/ box)

C

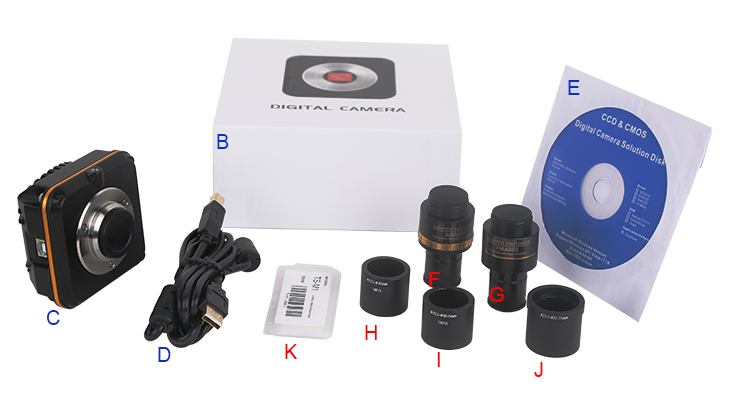

One LCMOS series camera

D

High speed USB 2.0 A to B gold-plated head data cable/2.0m

E

CD (driver and application software, Ø 12cm)

Optional Accessories

F

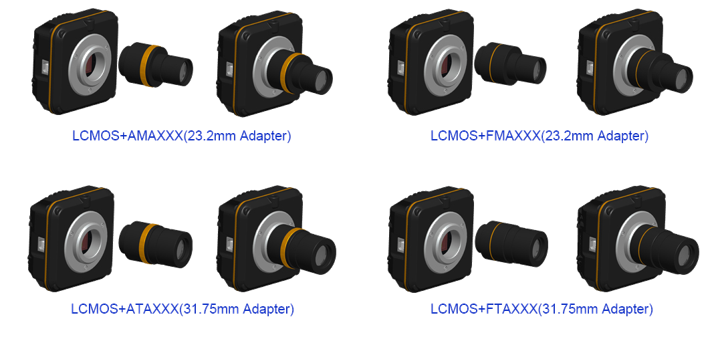

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
