Product Features

· C-interface CMOS cameras using Sony or Anson CMOS sensors

· Resolution ranges from 2.1 million to 12 million

· USB 2.0 interface determines high-speed data transmission

· Hardware integrated large capacity storage chip ensures synchronous data transmission, high frame rate, and stability

· Compliant with Microsoft USB Video Class protocol and supports third-party software extensions

· Built in hardware ISP image processing engine with high color reproduction

· Supports automatic exposure and manual exposure switching, with precise control of exposure time,

  The target area of exposure can be adjusted in real-time

· Support automatic/manual/ROI white balance

· Support color adjustment function, color mode selection, real-time removal of bad pixels, and image flipping function

· Support histogram function, flat field correction function, dark field correction function, video ROI function

· High performance MJPEG compression algorithm, combined with ToupView/ToupLite's unique decoding and image restoration algorithms,

  Obtained the highest frame rate in the industry for USB2.0 cameras; C2CMOS 5MP and 8MP frame rates can reach 30fps;

  12MP can reach 15fps

· Compliant with CE and FCC protocols

· CNC casing

· Provide advanced video and image processing application software ToupView/ToupLite with the camera

· Provide Windows/Linux/OSX multi platform SDK

C2CMOS12000KPA

CP212000A(2020)

12M/IMX577(C)

1/2.3“ (5.95x4.71)

1.55x1.55

250LSB

70dB

43dB

20@3840x3040

20@1920x1520

20@960x760

1x1

1x1

1x1

0.1-2000 ms

C2CMOS08300KPA

CP208300A

8.3M/IMX274(C)

1/2.5“ (6.22x3.50)

1.62x1.62

236mV

70dB

43dB

30@3840x2160

30@1920x1080

30@1280x720

30@960x540

1x1

1x1

1x1

0.1-2000 ms

C2CMOS05100KPA

CP205100A

5.1M/AR0521(C)

1/2.5“ (5.70x4.28)

2.2x2.2

18.8ke-/lus

73dB

40dB

30@2592x1944

30@1280x960

30@640x480

1x1

1x1

1x1

0.1-1000 ms

C2CMOS05100KPB

CP205100B

5.1M/IMX335(C)

1/2.8“ (5.18x3.89)

2.0x2.0

505mV

70dB

43dB

26@2592x1944

26@1280x960

26@640x480

1x1

1x1

1x1

0.1-2000 ms

C2CMOS03100KPA

CP203100A

3.1M/Aptina(C)

1/2.5“ (5.73x4.3)

2.8x2.8

18.8ke-/lus

73dB

40dB

30@2048x1536

30@1024x768

1x1

1x1

0.1-1000 ms

C2CMOS02100KPA

CP202100A

2.1M/IMX307(C)

1/2.8“ (5.73x4.3)

2.9x2.9

1300mV

73dB

43dB

38@1920x1080

38@960x540

1x1

1x1

0.1-2000 ms

Spectral response range

380-650nm（with infrared cut-off filter）

White balance

Automatic white balance/ROI white balance/manual Temp Tit adjustment

Color restoration technology

Ultra Fine hardware color processing engine

Capture/Control SDK

Windows/Linux/Mac OS Multi Platform SDK

data interface

USB2.0

MJPEG

Recording method

Images and videos

Cooling method*

Natural cooling

Camera working environment

Working temperature (Celsius)

-10 ~ 50

Storage temperature (Celsius)

-20 ~ 60

Working humidity

30~80%RH

Storage humidity

10~60%RH

Power supply

The camera is powered through the USB 2.0 interface

Software operating environment

operating system

Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64  bit)

OS X (Mac OS X)

Linux

Computer configuration

CPU：Intel Core 2 2.8GHz or higher

Memory: 2GB or larger

USB interface: USB 2.0 high-speed interface

Monitor: 17 "or above

CD-ROM

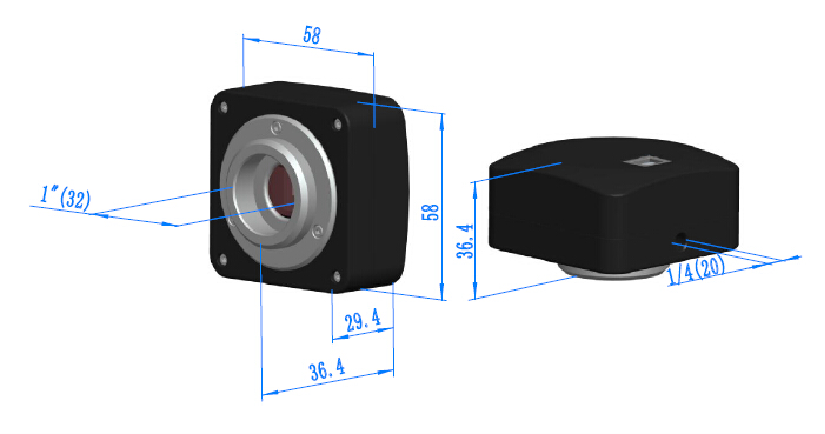

Schematic diagram of the external dimensions of C2CMOS series cameras. The camera housing is machined from a sturdy aluminum alloy, which is aesthetically pleasing and elegant. The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.

Outline dimension diagram of C2CMOS series camera

A

Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture

B

Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.5~0.55kg/small box)

C

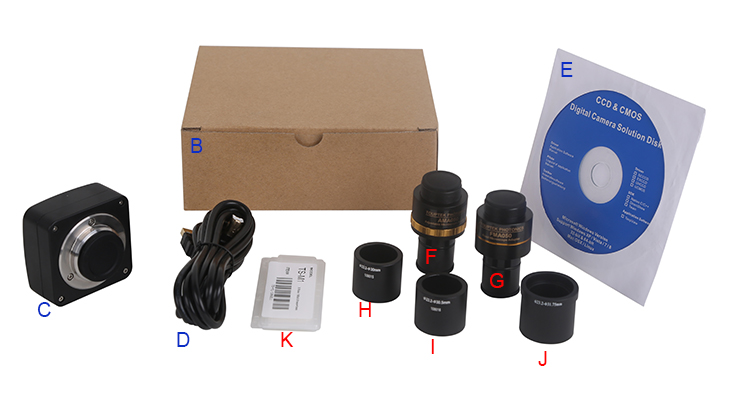

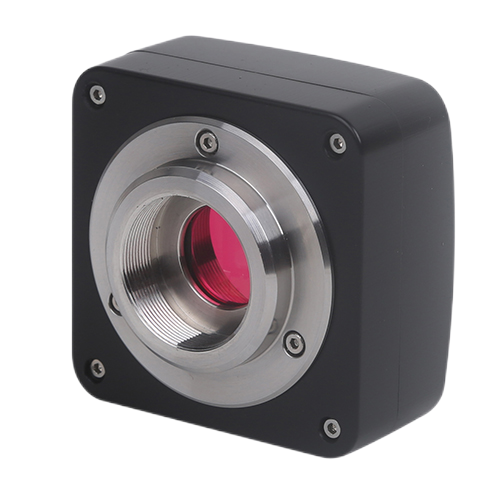

One C2CMOS series camera

D

High speed USB 2.0 A to B gold-plated head data cable/2.0m

E

CD (Drivers and Applications, Ø 12cm)

Optional Accessories

F

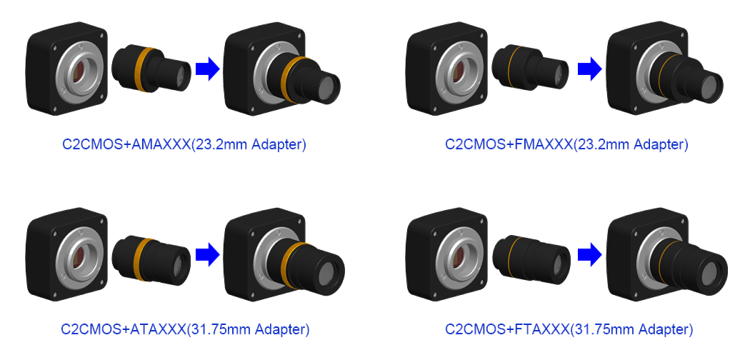

Adjustable focus eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108001/AMA037

108002/AMA050

108003/AMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or telescope)

108008/ATA037

108009/ATA050

108010/ATA075

G

Fixed eyepiece tube adapter

Dia.23.2mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108005/FMA037

108006/FMA050

108007/FMA075

Dia.31.75mm eyepiece tube to C interface

(Please choose one based on your camera or microscope)

108011/FTA037

108012/FTA050

108013/FTA075

Attention: For options F and G, please first confirm your camera model (C interface, microscope camera or telescope camera),

Engineers from Goptica Optics will assist you in selecting the appropriate microscope or telescope adapter based on your application;

H

108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring

I

108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube

J

108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube

K

Micrometer

106011/TS-M1(X=0.01mm/100Div.)；

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

C-interface camera

Machine vision; Medical imaging;

Semiconductor equipment; Testing instruments;

Document scanner; 2D code scanner;

Web camera or video surveillance;

Microscopic imaging;

Microscope electronic eyepiece

Telescope electronic eyepiece
