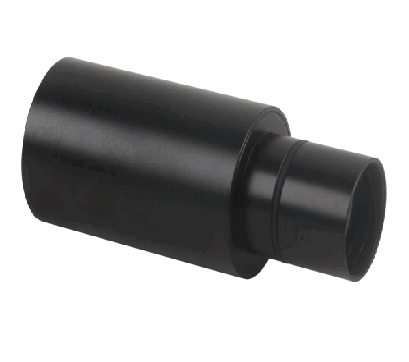

The SPCMOS series camera is an embedded magnifying glass microscope eyepiece tube CMOS camera. The magnifying glass plays a role in reducing the mirror image of the object in the microscope, in order to match the size of the microscope image with the sensor chip. The front end of the camera adopts a standard 23.2mm eyepiece tube size, which can be directly inserted into the eyepiece tube to obtain the middle image of the microscope objective.
In the SPCMOS series camera abbreviation, S represents an economic version with simple and compact structure (23.2mm Dia eye piece tube CMOS camera), P stands for Plus, which is a distinction made based on the SCMOS of relative spectrum optoelectronics.
The SPCMOS series cameras use USB 2.0 as the data transmission interface protocol.
The SPCMOS series is suitable for converting ordinary student monocular and binocular microscopes into digital microscopes. Paired with 23.2 to 30mm and 23.2 to 30.75mm, it can also be used for stereo microscopes. By converting stereo microscopes into digital ones, it has a wide range of applications.
Product manual：
Product Features
· 23.2mm diameter, embedded magnifying glass microscope eyepiece tube camera, better field of view matching, compact structure
· Using Aptina CMOS sensors;
· Automatic white balance and automatic exposure; Brightness, contrast, color, and saturation are adjustable
· USB2.0 interface ensures high transfer rate
· Ultra-Fine color engine ensures precise color reproduction
· Provide advanced video and image processing application software ToupView/ToupLite with the camera
· Provide Windows/Linux/OSX multi platform SDK
Name
Sensor model and size
Pixel (μm)
G light sensitivity
dynamic range
SN ratio
FPS/Resolution
Sampling average
time of exposure
SPCMOS05000KPA
SP505000A
5.0M/Aptina(C)
1/2.5“ (5.70x4.28)
2.2x2.2
NA
2@2592x1944
3@2048x1536
5@1600x1200
7.5@1280x1024
N/A
Auto
SPCMOS03000KPA
SP503000A
3.0M/Aptina(C)
1/2.7“ (4.51x3.38)
SPCMOS02000KPA
SP502000A
2.0M/Aptina(C)
1/3.2“ (4.48x3.36)
2.8x2.8
7.5@1280x960
20@800x600
SPCMOS01300KPA
SP501300A
1.3M/Aptina(C)
1/3“ (4.60x3.70)
3.6x3.6
12.5@1024x768
12.5@800x600
SPCMOS00350KPA
SP500350A
0.35M/Aptina(C)
1/4“ (3.58x2.69)
5.6x5.6
30@640x480
SPCMOS05100KPB
SP505100B
5.1M/IMX335(C)
1/2.8“ (5.18x3.89)
2.0x2.0
505mV
70dB
43dB
26@2592x1944
26@1280x960
26@640x480
1x1
0.1-2000 ms
C： Color; M： Monochrome or black and white;
Hardware configuration
Spectral response range
380-650nm（with infrared cut-off filter）
Exposure range and method
Electronic Roller Shutter (ERS), Automatic
White balance
Color restoration technology
Peak quantum efficiency
Read noise
extinction ratio
拖尾噪声(Smear）
Capture/Control SDK
DirectShow, Twain
Recording method
Images and videos
Data format
MJPEG
Camera working environment
Working temperature (Celsius)
-10 ~ 50
Storage temperature (Celsius)
-20 ~ 60
Working humidity
30~80%RH
Storage humidity
10~60%RH
Power supply
The camera is powered through a USB interface
Software operating environment
operating system
Microsoft® Windows®XP/Vista / 7 / 8 /10 /11(32 & 64 bit)
Computer configuration
CPU：Intel Core 2 2.8GHz or higher
Memory: 2GB or larger
USB interface: USB 2.0 high-speed interface
Monitor: 17 "or above
CD-ROM

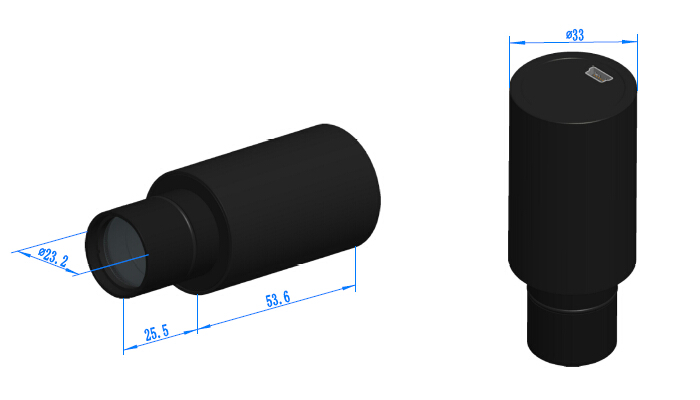

Outline dimension diagram of SPCMOS series camera. The camera housing is made of hard aluminum alloy machined and then blackened. The size of the eyepiece tube electronic eyepiece is: Dia.33 X 79mm.The front end of the camera sensor is equipped with high-quality IR-CUT, which mainly filters out infrared light waves in imaging while protecting the camera sensor. Compared to other brands of cameras, the camera from Gewu Optics has no moving parts to ensure that the camera is sturdy, reliable, and durable, and there is no imaging blur caused by shaking of moving parts.
SPCMOS series eyepiece tube camera size diagram

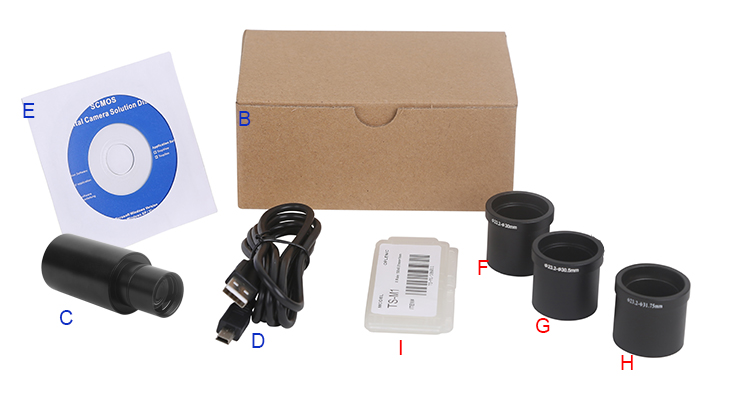

Packing List
Standard packing list
A
Packaging box specifications: L: 52cm W: 32cm H: 33cm (20pcs, 12-17Kg/carton), not shown in the above picture
B
Packaging box specifications: L: 15cm W: 15cm H: 10cm (0.26-0.27Kg/small box)
C
One SPCMOS series camera
D
High speed USB 2.0 A male to B male Mini gold-plated head data cable/2.0m
E
CD (Drivers and Applications, Ø 8cm)
Optional Accessories
F
108015 (Dia.23.2mm to 30.0mm ring)/for 30mm diameter eyepiece tube adapter ring
G
108016 (Dia.23.2mm to 30.5mm ring)/for adapter ring of 30.5mm diameter eyepiece tube
H
108017 (Dia.23.2mm to 31.75mm ring)/for adapter ring of 31.75mm diameter eyepiece tube
I
Micrometer
106011/TS-M1(X=0.01mm/100Div.)；
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
