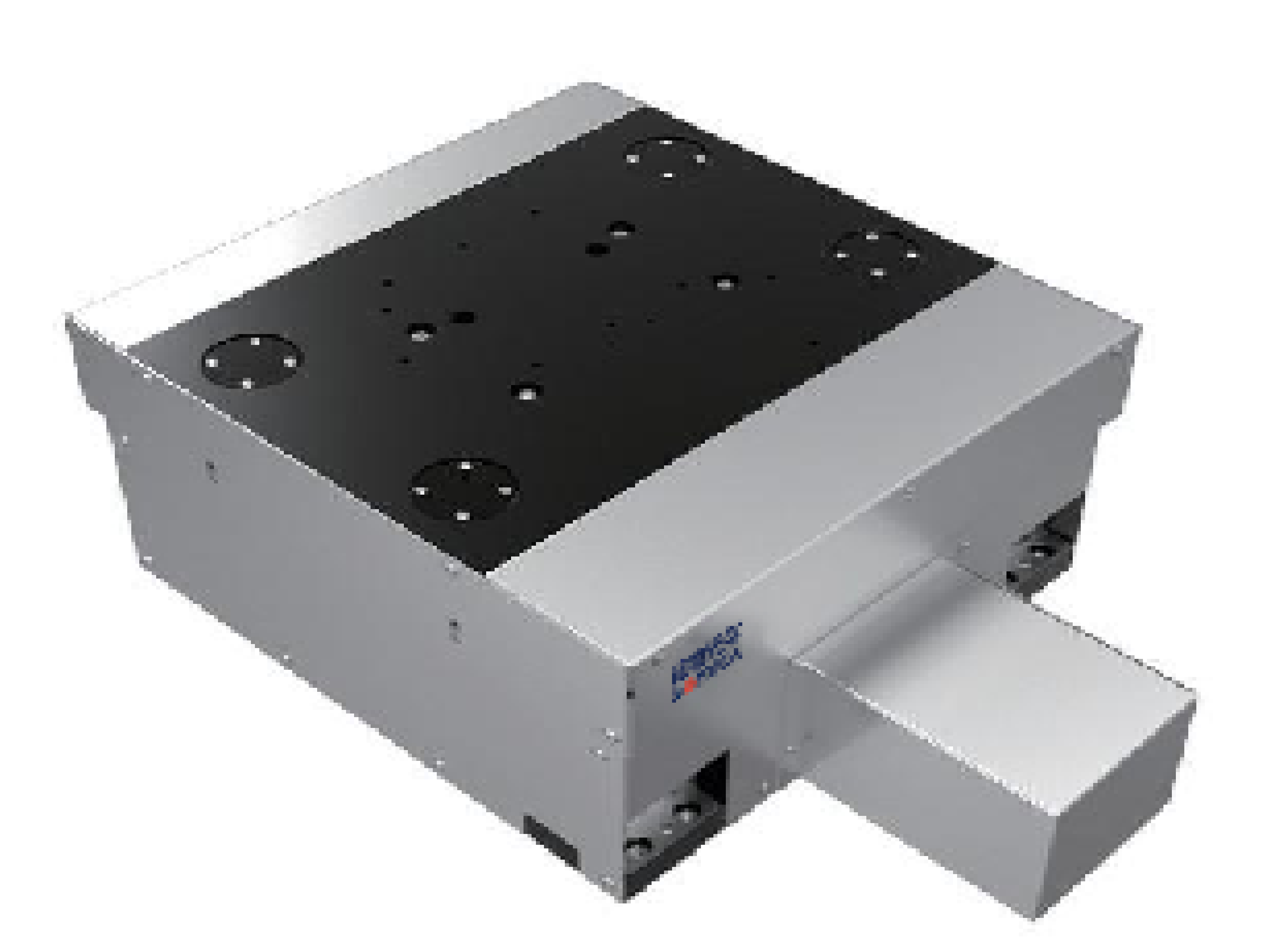

Heavy Vertical Positioning Station
|
The MZH400-25 series heavy-duty vertical positioning platform of Goptica Optics adopts an innovative wedge-shaped mechanism design concept, with compact and flat contour dimensions. Through high stiffness guide columns and high-precision screw structures, the platform has very high positioning accuracy, repeated positioning accuracy, and large load capacity. It can be widely applied in fields such as semiconductors, flat panel displays, and fiber optic alignment.
Product manual：  |

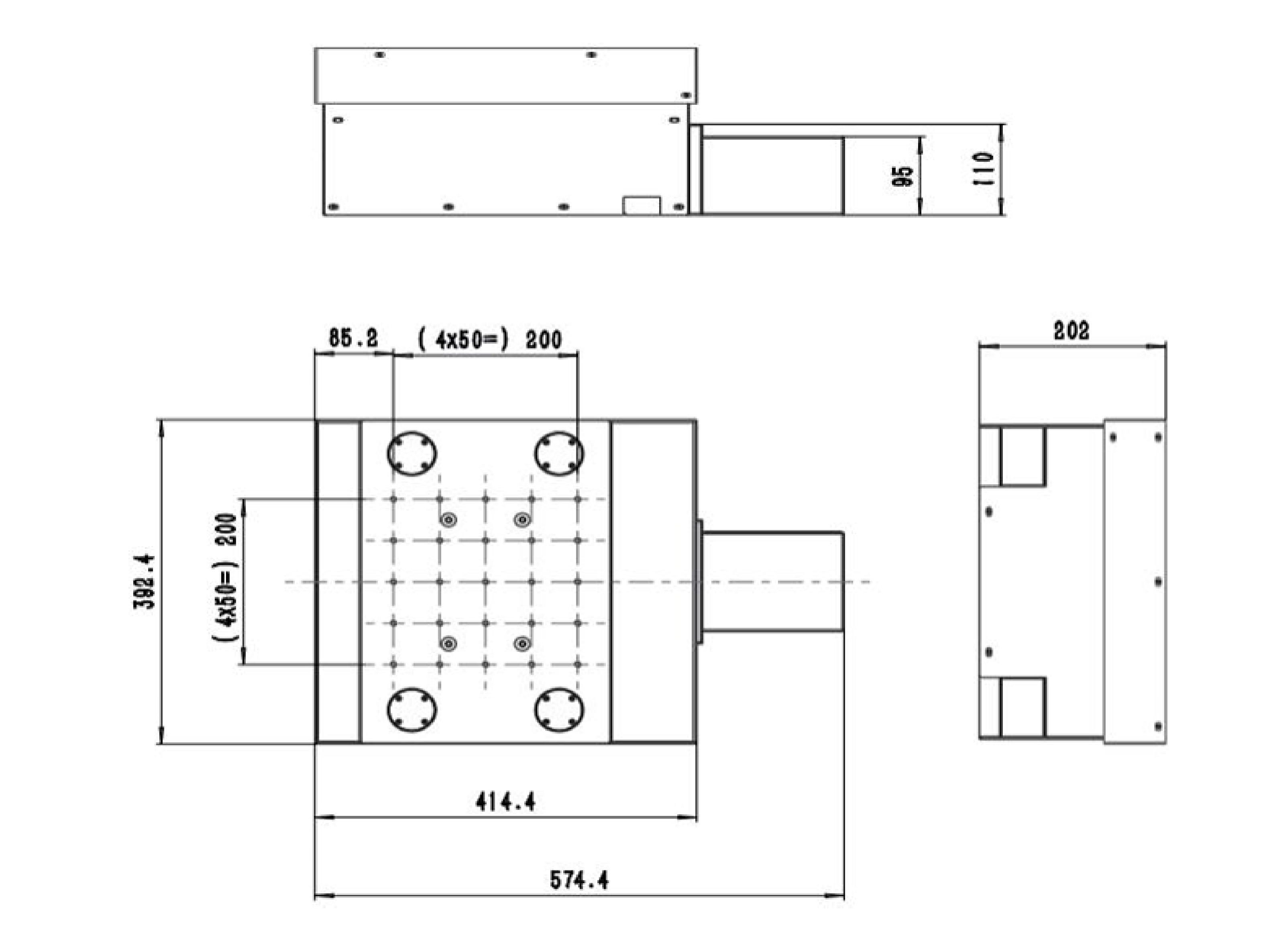

| Features： | Mechanical dimension diagram： |
- High rigidity, high-precision guide column design - High precision screw guide design - High load capacity and anti eccentricity ability - Fully closed-loop servo design |
|
Specifications and Parameters
| MZM400-25 |
| 行程/Travel | 25mm |
| 最大速度/Maximum Speed | 20mm/s |
| 加速度/Maximum Acceleration | 50m/s^2 |
| 精度/Accuracy | ±1μm |
| 双向重复精度/Bidirectional Repeatability | ±0.5μm |
| 直线度/Straightness | ±3μm |
| 俯仰/Pitch | 100 μrad |
| 横滚/Roll | 100 μrad |
| 偏摆/Yaw | 100 μrad |
| 正交性/orthogonality | 100 μrad |
| 机械特征/Mechanical Specifications |
| 驱动负载（无负载）/Moving Mass (without payload) | 23Kg |
| 最大负载/Max Load Capacity | 50Kg |
| 平台质量/Stage Mass | 44Kg |
| 外观尺寸(mm)/Dimension(mm) | 561mm X 392.4mm X 202mm |
| 平台材料/Material | aviation aluminum, black anodized |
Overloaded vertical positioning station options: In the MZH400-25 product series, options are configured that can be selected according to the user's actual application. The optional content includes options such as itinerary and encoder.
| Table 1 Travel Options |
| -10 | 10mm stroke displacement platform, equipped with voice coil motor and limit |
| -20 | 20mm stroke displacement platform, equipped with voice coil motor and limit |
| -30 | 30mm stroke displacement platform, equipped with voice coil motor and limit |
Table 2 Encoder Options |
| -S1 | Incremental analog optical linear encoder，1Vpp |
| -S2 | Incremental digital optical linear encoder，RS422 |
| -S3 | Absolute optical linear encoder，BISS |
|
