Planar Two-dimensional Precision Displacement Table
|
The PL90 series planar two-dimensional precision displacement table from Goptica adopts the XY integrated and orthogonal design concept, with ultra-thin contour dimensions that can achieve high-precision and high stiffness linear motion in the horizontal X/Y axis with 2 degrees of freedom. It can be widely applied in fields such as semiconductors, flat panel displays, fiber optic alignment, and biomedicine.
Product manual：  |

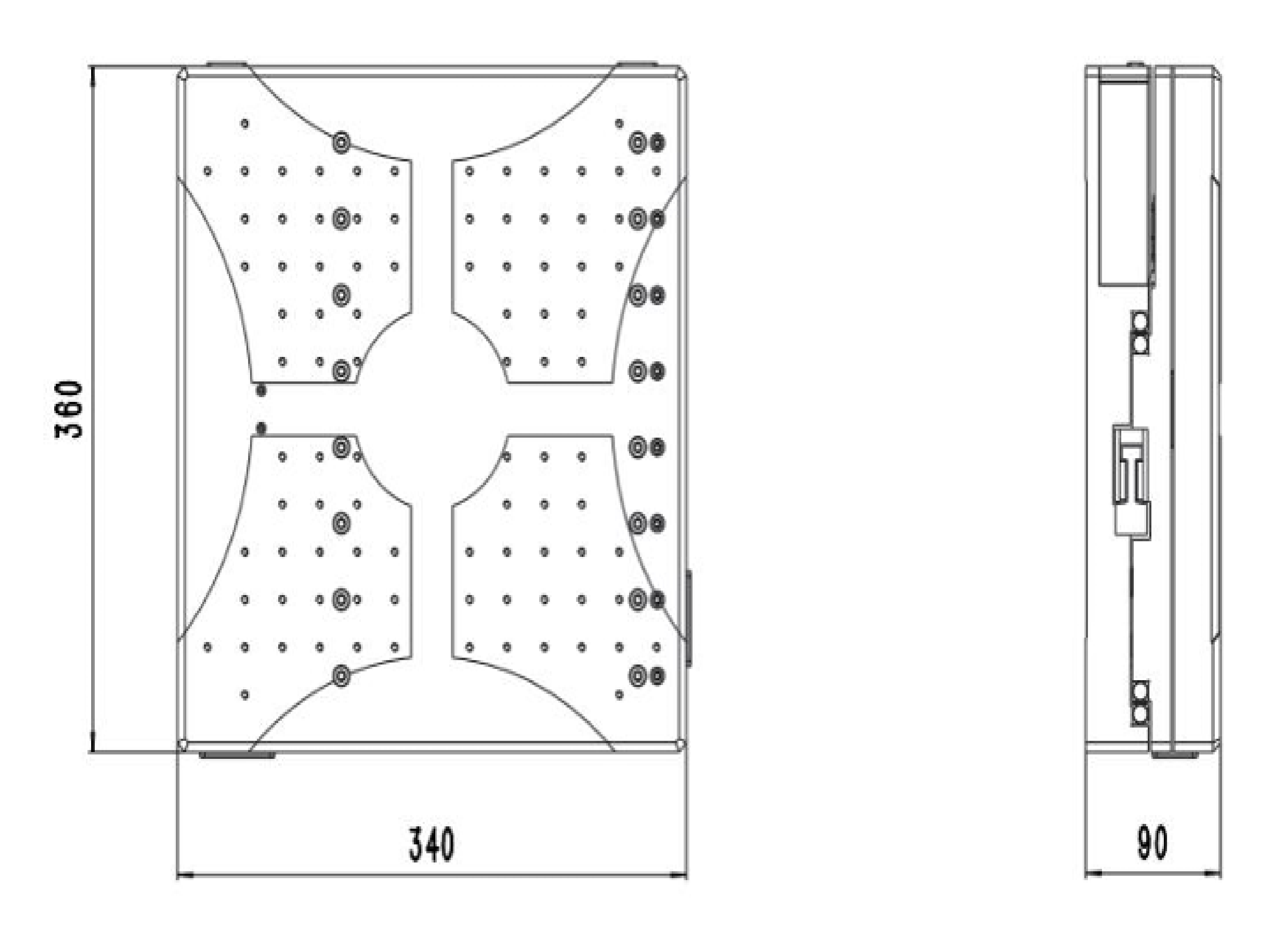

| Features： | Mechanical dimension diagram： |
- High dynamic response, non-contact linear motor drive - High precision linear optical encoder feedback - Design of high stiffness anti creep cross roller guide rail - Excellent positioning accuracy and dynamic performance
|
|
Customized information
Option for flat two-dimensional precision displacement table: In the PL90 series product series, there are options that can be selected according to the user's actual application. The optional content includes options such as travel, encoder, high-precision calibration, etc.
| Table 1 Size Options |
| -100 | 100mm stroke displacement platform, equipped with linear motor and limit |
| -200 | 200mm stroke displacement platform, equipped with linear motor and limit |
| -300 | 300mm stroke displacement platform, equipped with linear motor and limit |
Table 2 Encoder Options |
| -S1 | Incremental analog optical linear encoder, 1Vpp |
| -S2 | Incremental digital optical linear encoder, RS422 |
| -S3 | Absolute optical linear encoder, BISS |
|
