PAPL Series - Type A5 Piezoelectric Prepressure Actuator

Product manual：
Features：	Application：
- High thrust - High lifespan - High resolution - Resistant to tangential stress - Simple structure and compact size - Suitable for high vacuum environments	- Static and dynamic precision positioning - Laser tuning - Fiber optic positioning adjustment - Micro nano technology

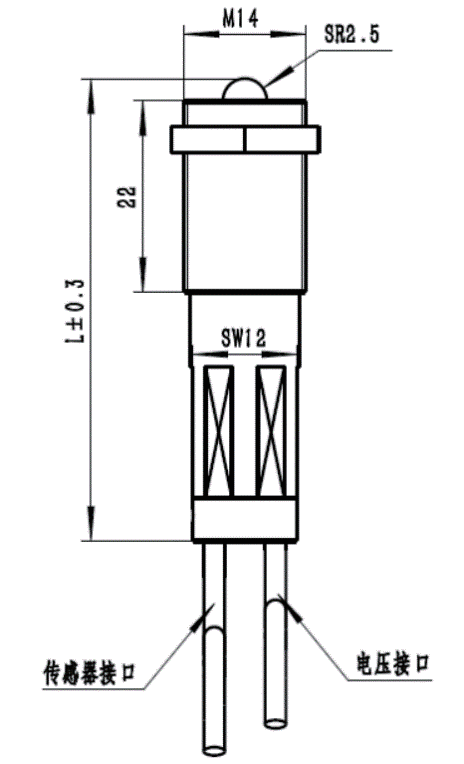

Mechanical dimension diagram：

The default output terminal is a ball head, and other output terminal structures can be customized.

Specifications and Parameters

	PAPL-A5-36S	PAPL-A5-45S	PAPL-A5-60S	PAPL-A5-90S	Tolerance
行程@150v* [μm]/Travel range at 150v	40	50	65	100	±20%
电容** [μF]/Electrical capacitance	3	3.8	5	7.5	±20%
开环分辨率 [nm]/Open loop resolution	0.36	0.45	0.6	0.9	Typical values
集成传感器/Integrated sensor	SGS				/
闭环分辨率*** [nm]/Closed loop resolution	0.72	0.9	1.2	1.8	Typical values
谐振频率 [kHz]/Resonant frequency	12	10	7	4	±20%
刚度 [N/μm]/Stiffness	20	17	12	8	±20%
推力**** [N]/Push force	850	850	850	850	Maximum value
拉力 [N]/Pull force	150	150	150	150	Maximum value
工作电压 [V]/operating voltage	-20~150				/
工作温度 [℃]/operating temperature range	-20~80				/
电压接口/Voltage connection	LEMO FFA.00.250				/
传感器接口/Sensor connection	LEMO FFA.0S.304				/
线长 [m]/Cable length	1.5				0.5%

*Empty load displacement output;

**Capacitance testing conditions: ambient temperature, 1Vpp, 1kHz;

***The closed-loop parameters are only applicable to the closed-loop version of piezoelectric preloading actuators;

****Thrust test: driving voltage 0~150V;

Other specifications can be customized according to customer needs.

PAPL series A5 piezoelectric preloading actuator, open-loop version

Model	Explain
PAPL-A5-36N	A5 type piezoelectric preloading actuator, effective stroke of 40 μ m, open-loop
PAPL-A5-45N	A5 type piezoelectric preloading actuator, effective stroke of 50 μ m, open-loop
PAPL-A5-60N	A5 type piezoelectric preloading actuator, effective stroke of 65 μ m, open-loop
PAPL-A5-90N	A5 type piezoelectric preloading actuator, effective stroke of 100 μ m, open-loop

PAPL series A5 piezoelectric preloading actuator, closed-loop version

Model	Explain
PAPL-A5-36S	A5 type piezoelectric preloading actuator, effective stroke of 40 μ m, strain gauge closed-loop
PAPL-A5-45S	A5 type piezoelectric preloading actuator, effective stroke of 50 μ m, strain gauge closed-loop
PAPL-A5-60S	A5 type piezoelectric preloading actuator, effective stroke of 65 μ m, strain gauge closed-loop
PAPL-A5-90S	A5 type piezoelectric preloading actuator, effective stroke of 100 μ m, strain gauge closed-loop

PAPL series A5 piezoelectric preloading actuator, open-loop, vacuum compatible version

Model	Explain
PAPL-A5-36NU	A5 type piezoelectric preloading actuator, effective stroke of 40 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-45NU	A5 type piezoelectric preloading actuator, effective stroke of 50 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-60NU	A5 type piezoelectric preloading actuator, effective stroke of 65 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-90NU	A5 type piezoelectric preloading actuator, effective stroke of 100 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL series A5 piezoelectric preloading actuator, closed-loop, vacuum compatible version

Model	Explain
PAPL-A5-36SU	A5 type piezoelectric preloading actuator, effective stroke of 40 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-45SU	A5 type piezoelectric preloading actuator, effective stroke of 50 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-60SU	A5 type piezoelectric preloading actuator, effective stroke of 65 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-A5-90SU	A5 type piezoelectric preloading actuator, effective stroke of 100 μ m, closed-loop, vacuum compatible up to 10^-5Pa
