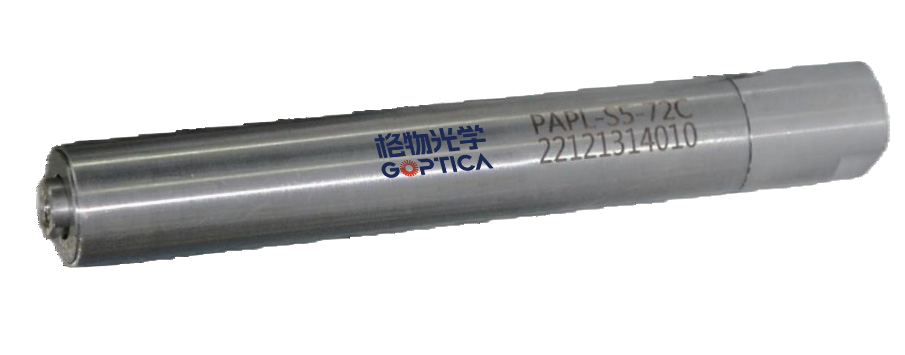

- High thrust

- High lifespan

- High resolution

- Resistant to tangential stress

- Simple structure and compact size

- Suitable for high vacuum environments

- Screw hole interface, optional with flat end and spherical end

- Static and dynamic precision positioning

- Laser tuning

- Fiber optic positioning adjustment

- Micro nano technology

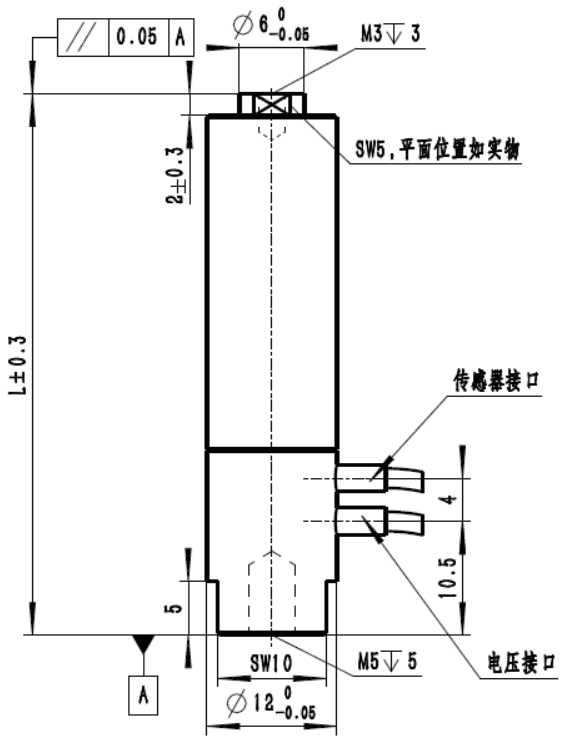

PAPL-B5-18N/S/NU/SU

32

PAPL-B5-36N/S/NU/SU

50

PAPL-B5-54N/S/NU/SU

68

PAPL-B5-72N/S/NU/SU

86

PAPL-B5-90N/S/NU/SU

104

PAPL-B5-108N/S/NU/SU

122

行程@150v* [μm]/Travel range at 150v

18

36

54

72

90

108

±20%

电容** [μF]/Electrical capacitance

1.5

3

4.5

6

7.5

9

±20%

开环分辨率 [nm]/Open loop resolution

0.18

0.36

0.54

0.72

0.9

1.08

Typical values

集成传感器/Integrated sensor

SGS

闭环分辨率*** [nm]/Closed loop resolution

0.36

0.72

1.08

1.44

1.8

2.16

Typical values

谐振频率 [kHz]/Resonant frequency

18

14

10

8.5

7

6

±20%

刚度 [N/μm]/Stiffness

57

27

19

15

12

10

±20%

推力**** [N]/Push force

1000

1000

1000

1000

1000

1000

Maximum value

拉力 [N]/Pull force

50

50

50

50

50

50

Maximum value

工作电压 [V]/Operating voltage

-20~150

工作温度 [℃]/operating temperature range

-20~80

电压接口/Voltage connection

LEMO FFA.00.250

传感器接口/Sensor connection

LEMO FFA.0S.304

线长 [m]/Cable length

1.5

±0.02m

PAPL-B5-18N

B5 type piezoelectric preloading actuator, effective stroke 18 μ m, open-loop

PAPL-B5-36N

B5 type piezoelectric preloading actuator, effective stroke 36 μ m, open-loop

PAPL-B5-54N

B5 type piezoelectric preloading actuator, effective stroke 54 μ m, open-loop

PAPL-B5-60N

B5 type piezoelectric preloading actuator, effective stroke of 60 μ m, open-loop

PAPL-B5-90N

B5 type piezoelectric preloading actuator, effective stroke of 60 μ m, open-loop

PAPL-B5-108N

B5 type piezoelectric preloading actuator, effective stroke of 108 μ m, open-loop

PAPL-B5-18S

B5 type piezoelectric preloading actuator, effective stroke of 18 μ m, strain gauge closed-loop

PAPL-B5-36S

B5 type piezoelectric preloading actuator, effective stroke of 36 μ m, strain gauge closed-loop

PAPL-B5-54S

B5 type piezoelectric preloading actuator, effective stroke 54 μ m, strain gauge closed-loop

PAPL-B5-60S

B5 type piezoelectric preloading actuator, effective stroke of 60 μ m, strain gauge closed-loop

PAPL-B5-90S

B5 type piezoelectric preloading actuator, effective stroke of 90 μ m, strain gauge closed-loop

PAPL-B5-108S

B5 type piezoelectric preloading actuator, effective stroke of 108 μ m, strain gauge closed-loop

PAPL-B5-18NU

B5 type piezoelectric preloading actuator, effective stroke 18 μ m, open-loop, vacuum compatible up to10^-5Pa

PAPL-B5-36NU

B5 type piezoelectric preloading actuator, effective stroke of 36 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B5-54NU

B5 type piezoelectric preloading actuator, effective stroke 54 μ m, open-loop, vacuum compatible up to10^-5Pa

PAPL-B5-60NU

B5 type piezoelectric preloading actuator, effective stroke of 72 μ m, open-loop, vacuum compatible up to10^-5Pa

PAPL-B5-90NU

B5 type piezoelectric preloading actuator, effective stroke of 90 μ m, open-loop, vacuum compatible up to10^-5Pa

PAPL-B5-108NU

B5 type piezoelectric preloading actuator, effective stroke of 108 μ m, open-loop, vacuum compatible up to10^-5Pa

PAPL-B5-18SU

B5 type piezoelectric preloading actuator, effective stroke 18 μ m, closed-loop, vacuum compatible up to10^-5Pa

PAPL-B5-36SU

B5 type piezoelectric preloading actuator, effective stroke of 36 μ m, closed-loop, vacuum compatible up to10^-5Pa

PAPL-B5-54SU

B5 type piezoelectric preloading actuator, effective stroke 54 μ m, closed-loop, vacuum compatible up to10^-5Pa

PAPL-B5-60SU

B5 type piezoelectric preloading actuator, effective stroke of 72 μ m, closed-loop, vacuum compatible up to10^-5Pa

PAPL-B5-90SU

B5 type piezoelectric preloading actuator, effective stroke of 90 μ m, closed-loop, vacuum compatible up to10^-5Pa

PAPL-B5-108SU

B5 type piezoelectric preloading actuator, effective stroke of 108um, closed-loop, vacuum compatible up to10^-5Pa
