- High thrust

- High lifespan

- High resolution

- -Resistant to tangential stress

- Simple structure and compact size

- Suitable for high vacuum environments

- Screw hole interface, optional with flat end and spherical end

- Static and dynamic precision positioning

- Laser tuning

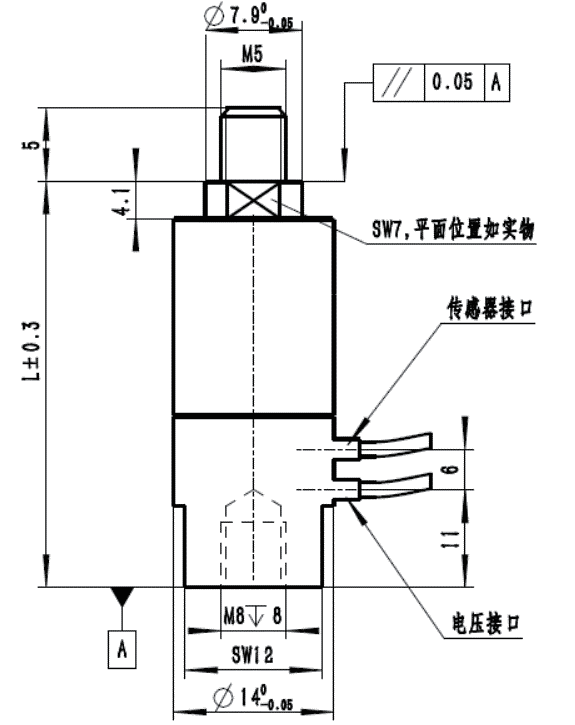

PAPL-B7-18N/S/NU/SU

37

PAPL-B7-36N/S/NU/SU

55

PAPL-B7-54N/S/NU/SU

73

PAPL-B7-72N/S/NU/SU

91

PAPL-B7-90N/S/NU/SU

109

PAPL-B7-108N/S/NU/SU

127

行程@150v* [μm]/Travel range at 150v

18

36

54

72

90

108

±20%

电容** [μF]/Electrical capacitance

3

6

9

12

15

18

±20%

开环分辨率 [nm]/Open loop resolution

0.18

0.36

0.54

0.72

0.9

1.08

Typical values

集成传感器/Integrated sensor

SGS

闭环分辨率*** [nm]/Closed loop resolution

0.36

0.72

1.08

1.44

1.8

2.16

Typical values

谐振频率 [kHz]/Resonant frequency

22

17.5

15

13

11

10

±20%

刚度 [N/μm]/Stiffness

225

107

75

57

44

38

±20%

推力**** [N]/Push force

1000

1000

1000

1000

1000

1000

Maximum value

拉力 [N]/Pull force

300

300

300

300

300

300

Maximum value

工作电压 [V]/Operating voltage

-20~150

工作温度 [℃]/operating temperature range

-20~80

电压接口/Voltage connection

LEMO FFA.00.250

传感器接口/Sensor connection

LEMO FFA.0S.304

线长 [m]/Cable length

1.5

±0.02m

PAPL-B7-18N

B7 type piezoelectric preloading actuator, effective stroke 18 μ m, open-loop

PAPL-B7-36N

B7 type piezoelectric preloading actuator, effective stroke 36 μ m, open-loop

PAPL-B7-54N

B7 type piezoelectric preloading actuator, effective stroke 54 μ m, open-loop

PAPL-B7-60N

B7 type piezoelectric preloading actuator, effective stroke of 60 μ m, open-loop

PAPL-B7-90N

B7 type piezoelectric preloading actuator, effective stroke of 90 μ m, open-loop

PAPL-B7-108N

B7 type piezoelectric preloading actuator, effective stroke of 108 μ m, open-loop

PAPL-B7-18S

B7 type piezoelectric preloading actuator, effective stroke of 18 μ m, strain gauge closed-loop

PAPL-B7-36S

B7 type piezoelectric preloading actuator, effective stroke of 36 μ m, strain gauge closed-loop

PAPL-B7-54S

B7 type piezoelectric preloading actuator, effective stroke 54 μ m, strain gauge closed-loop

PAPL-B7-60S

B7 type piezoelectric preloading actuator, effective stroke of 60 μ m, strain gauge closed-loop

PAPL-B7-90S

B7 type piezoelectric preloading actuator, effective stroke of 90 μ m, strain gauge closed-loop

PAPL-B7-108S

B7 type piezoelectric preloading actuator, effective stroke of 108 μ m, strain gauge closed-loop

PAPL-B7-18NU

B7 type piezoelectric preloading actuator, effective stroke 18um, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-36NU

B7 type piezoelectric preloading actuator, effective stroke of 36 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-54NU

B7 type piezoelectric preloading actuator, effective stroke 54 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-60NU

B7 type piezoelectric preloading actuator, effective stroke of 72 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-90NU

B7 type piezoelectric preloading actuator, effective stroke of 90 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-108NU

B7 type piezoelectric preloading actuator, effective stroke of 108 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-18SU

B7 type piezoelectric preloading actuator, effective stroke 18 μ m, closed-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-36SU

B7 type piezoelectric preloading actuator, effective stroke of 36 μ m, closed-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-54SU

B7 type piezoelectric preloading actuator, effective stroke 54 μ m, closed-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-60SU

B7 type piezoelectric preloading actuator, effective stroke of 72 μ m, closed-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-90SU

B7 type piezoelectric preloading actuator, effective stroke of 90 μ m, closed-loop, vacuum compatible up to 10^-5Pa

PAPL-B7-108SU

B7 type piezoelectric preloading actuator, effective stroke of 108 μ m, closed-loop, vacuum compatible up to 10^-5Pa
