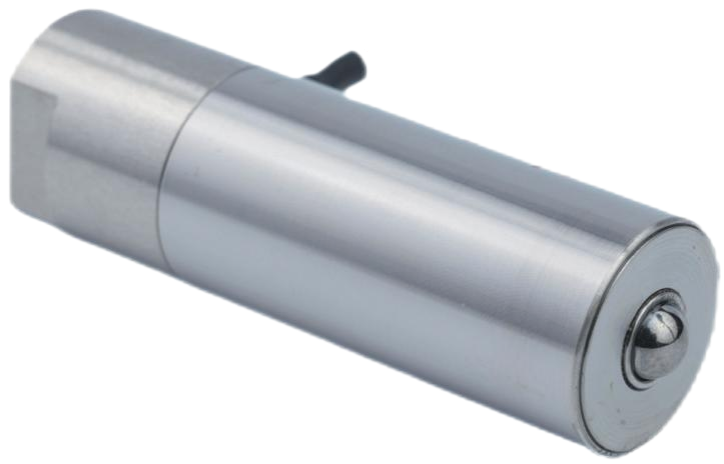

PAPL Series - Type C5 Piezoelectric Prepressure Actuator

Product manual：
Features：	Application：
- High thrust - High lifespan - High resolution - Resistant to tangential stress - Simple structure and compact size - Suitable for high vacuum environments - Integrated spherical end	- Static and dynamic precision positioning - Laser tuning - Fiber optic positioning adjustment - Micro nano technology

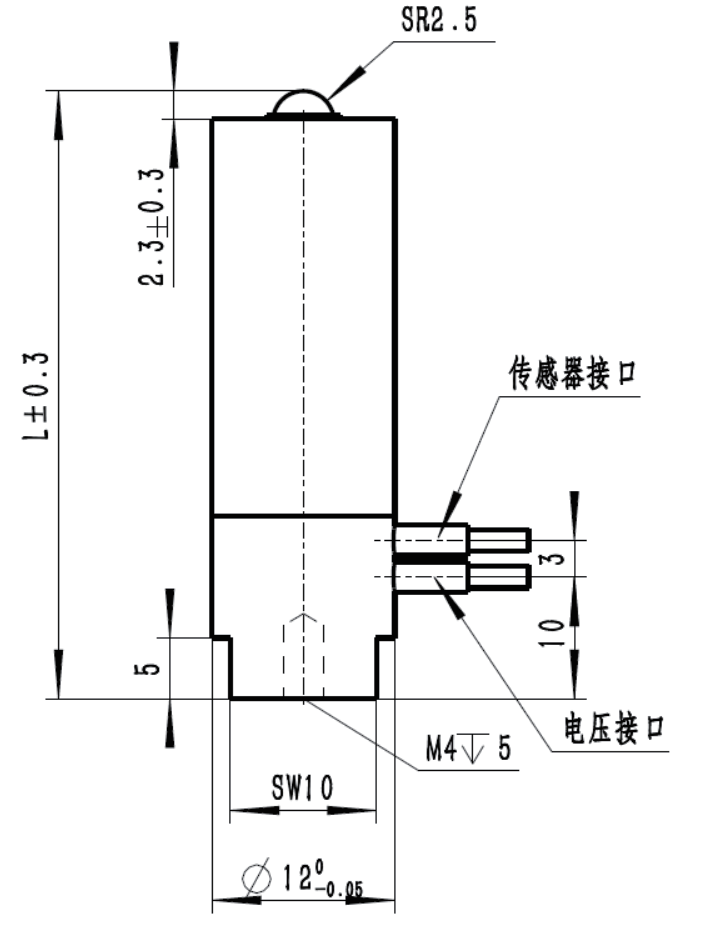

Mechanical dimension diagram：

The default output terminal is a ball head, and other output terminal structures can be customized.

Specifications and Parameters

	PAPL-C5- 18S	PAPL-C5- 36S	PAPL-C5- 54S	PAPL-C5- 60S	PAPL-C5- 90S	PAPL-C5- 108S	tolerance
行程@150v* [μm]/Travel range at 150v	18	36	54	72	90	108	±20%
电容** [μF]/Electrical capacitance	1.5	3	4.6	6	7.5	9	±20%
开环分辨率 [nm]/Open loop resolution	0.18	0.36	0.54	0.72	0.9	1.08	Typical values
集成传感器/Integrated sensor	SGS
闭环分辨率*** [nm]/Closed loop resolution	0.36	0.72	1.08	1.44	1.8	2.16	Typical values
谐振频率 [kHz]/Resonant frequency	18	14	10	8.5	7	6	±20%
刚度 [N/μm]/Stiffness	57	27	19	15	12	10	±20%
推力**** [N]/Push force	1000	1000	1000	1000	1000	1000	Maximum value
拉力 [N]/Pull force	150	150	150	150	150	150	Maximum value
工作电压 [V]/Operating voltage	-20~150
工作温度 [℃]/operating temperature range	-20~80
电压接口/Voltage connection	LEMO FFA.00.250
传感器接口/Sensor connection	LEMO FFA.0S.304
线长 [m]/Cable length	1.5						±0.02m

*Empty load displacement output;

**Capacitance testing conditions: ambient temperature, 1Vpp, 1kHz;

***The closed-loop parameters are only applicable to the closed-loop version of piezoelectric preloading actuators;

****Thrust test: driving voltage 0~150V;

Other specifications can be customized according to customer needs.

PAPL series C5 piezoelectric preloading actuator, open-loop version

Model	Explain
PAPL-C5-18N	C5 type piezoelectric ceramic prestressed actuator, effective stroke 18 μ m, open-loop
PAPL-C5-36N	C5 type piezoelectric ceramic prestressed actuator, effective stroke 36 μ m, open-loop
PAPL-C5-54N	C5 type piezoelectric ceramic prestressed actuator, effective stroke 54 μ m, open-loop
PAPL-C5-60N	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 60 μ m, open-loop
PAPLC5-90N	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 90 μ m, open-loop
PAPL-C5-108N	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 108 μ m, open-loop

PAPL series C5 piezoelectric preloading actuator, closed-loop version

Model	Explain
PAPL-C5-18S	C5 type piezoelectric ceramic prestressed actuator, effective stroke 18 μ m, strain gauge closed-loop
PAPL-C5-36S	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 36 μ m, strain gauge closed-loop
PAPL-C5-54S	C5 type piezoelectric ceramic prestressed actuator, effective stroke 54 μ m, strain gauge closed-loop
PAPL-C5-60S	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 60 μ m, strain gauge closed-loop
PAPL-C5-90S	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 90 μ m, strain gauge closed-loop
PAPL-C5-108S	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 108 μ m, strain gauge closed-loop

PAPL series C5 piezoelectric preloading actuator, open-loop, vacuum compatible version

型Model号	Explain说明
PAPL-C5-18NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke 18 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-36NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 36 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-54NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke 54 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-60NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 72 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-90NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 90 μ m, open-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-108NU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 108 μ m, open-loop, vacuum compatible up to 10^-5Pa

PAPL series C5 piezoelectric preloading actuator, closed-loop, vacuum compatible version

Model	Explain
PAPL-C5-18SU	C5 type piezoelectric ceramic prestressed actuator, effective stroke 18 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-36SU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 36 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-54SU	C5 type piezoelectric ceramic prestressed actuator, effective stroke 54 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-60SU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 72 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-90SU	C5 type piezoelectric ceramic flow prestressed actuator, effective stroke of 90 μ m, closed-loop, vacuum compatible up to 10^-5Pa
PAPL-C5-108SU	C5 type piezoelectric ceramic prestressed actuator, effective stroke of 108 μ m, closed-loop, vacuum compatible up to 10^-5Pa
