B-601.30 Series - Single-axis Piezoelectric Microstep Motor Driver
|

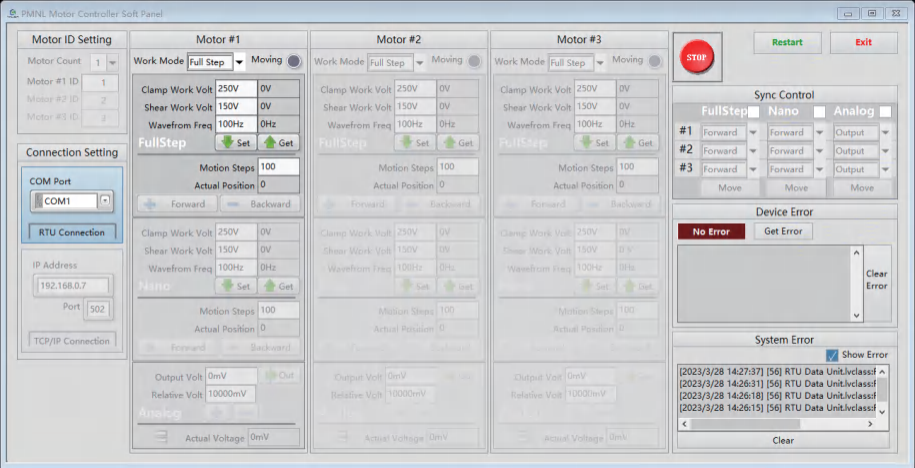

The B-601.30 model drive control chassis of Gewu Optics supports PMNL-Z20-50U piezoelectric ceramic micro step motor control, which includes three control modes: uniform motion control mode, full step motion control mode, and analog control mode. The B-601.30 model drive control chassis adopts a step plus step distance control method for motor displacement control. The displacement distance of the motor can be changed by modifying the step number and step distance through the upper computer; The control of motor speed can be achieved by modifying the output frequency.
Product manual：
|
| Characteristic： |
|
- Output voltage: ± 230V - Three motion modes to choose from: uniform speed, full step distance, and analog mode - Can support closed-loop control - Support waveform generator function
|

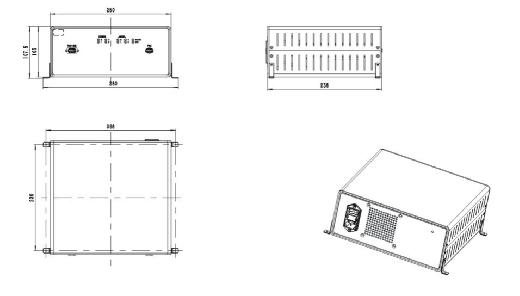

| Mechanical dimension diagram： |
|
|

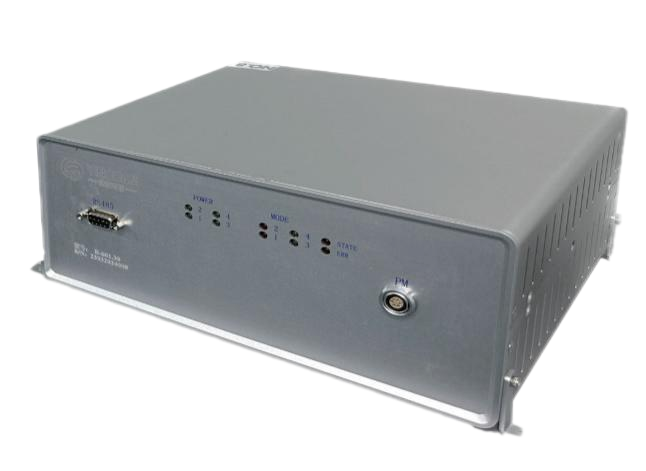

Product Picture |
Product Model |
Drawings And Specifications |
Operation |
