Hollow Planar Two-dimensional Precision Displacement Table
|

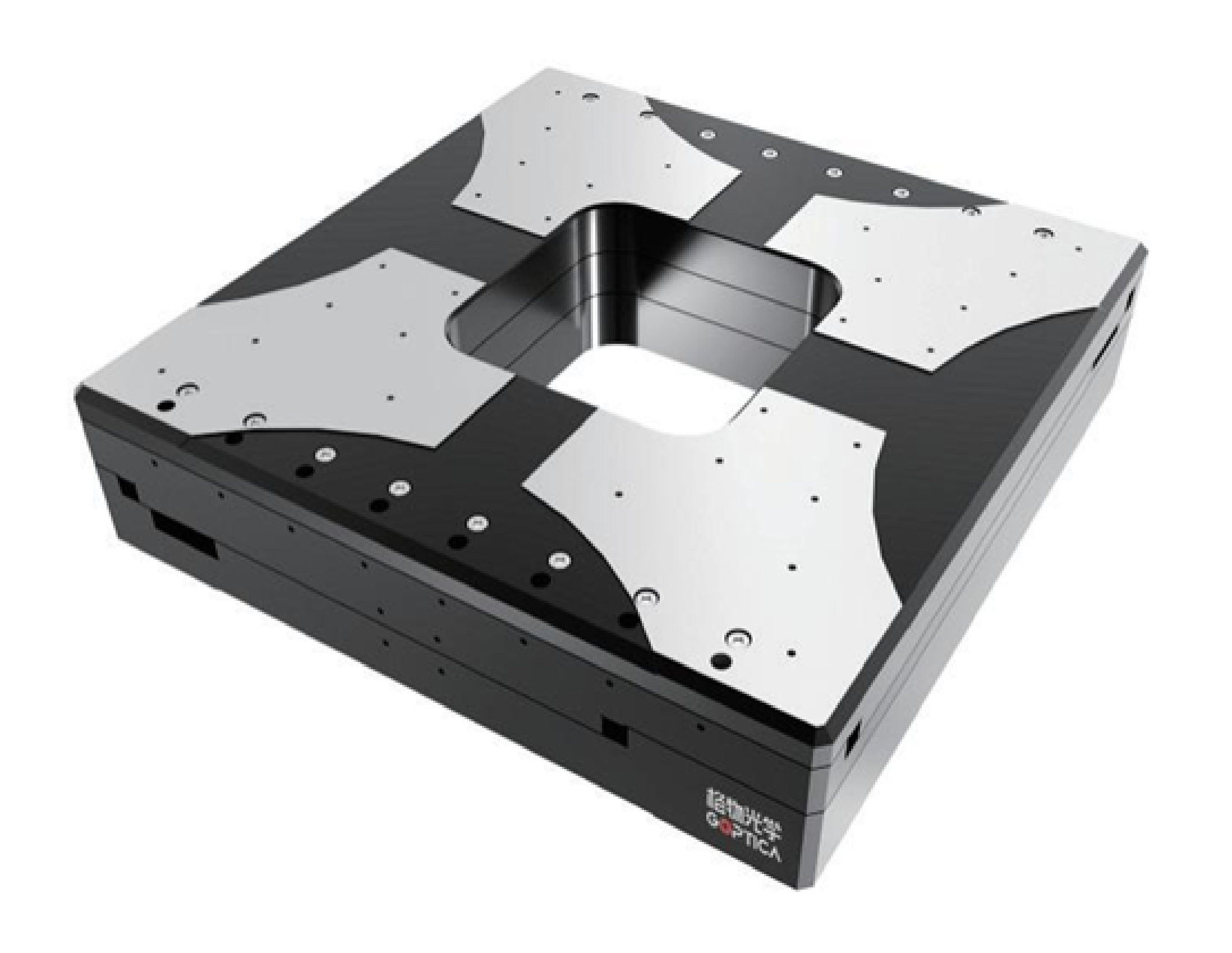

The PLA90 series hollow two-dimensional precision displacement table of Goptica adopts the XY integrated and orthogonal design concept, with ultra-thin contour size and large hollow through-hole size, which can achieve high-precision and high stiffness linear motion in the horizontal X/Y axis with 2 degrees of freedom. It can be widely used in semiconductors, flat panel displays, fiber optic alignment, biomedicine, etc., especially suitable for double-sided processing or genetic testing fields. Product manual：
|

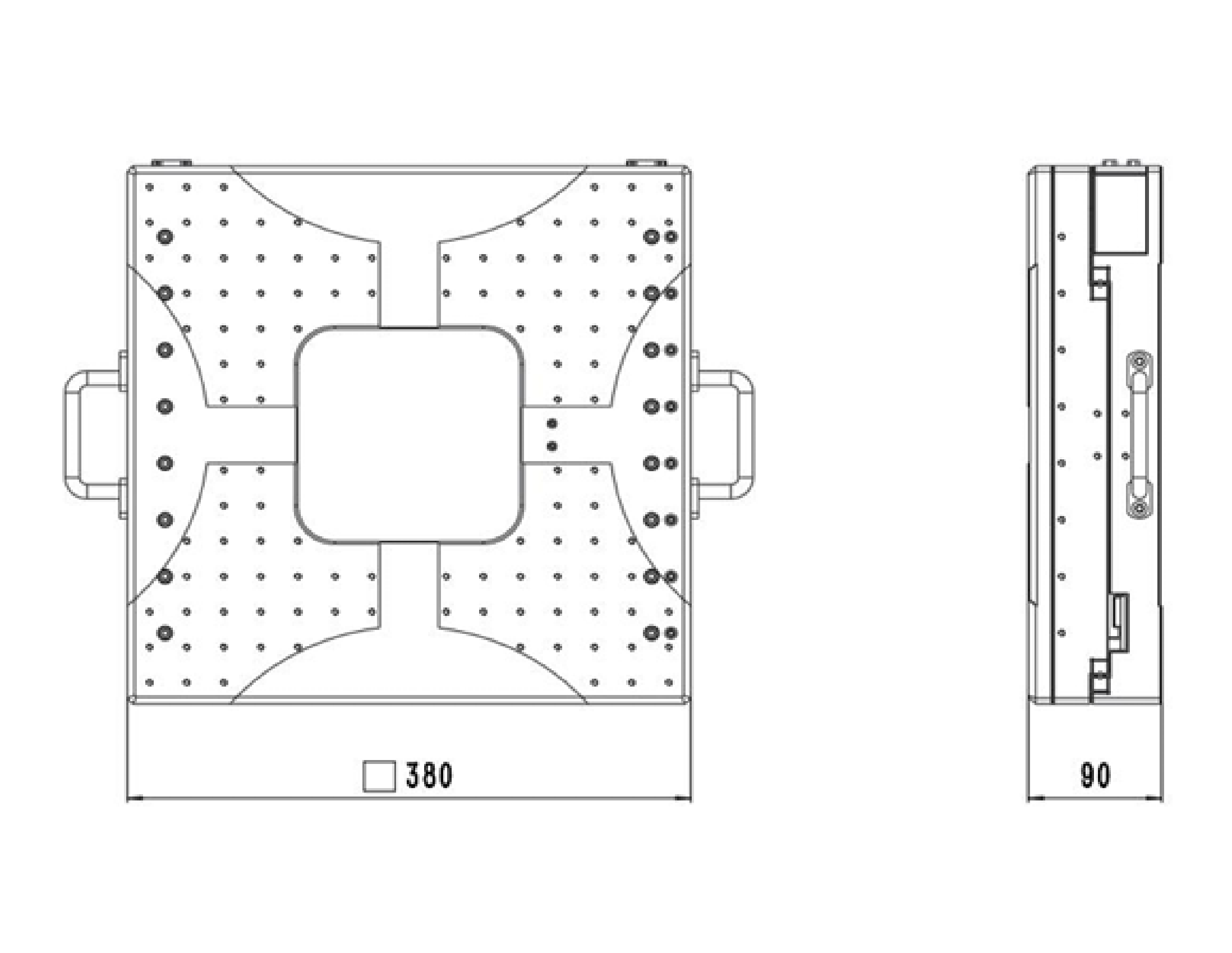

| Features： | Mechanical dimension diagram： |
- High dynamic response, non-contact linear motor drive - High precision optical linear encoder feedback - Design of high stiffness creep resistant intersecting roller guide rail - Excellent positioning accuracy and dynamic performance - Large hollow size design |
|
Customized information
Hollow planar two-dimensional precision displacement table optional: In the PLA90 series product series, optional options are configured that can be selected according to the actual application of the user. The optional content includes options such as travel, encoder, high-precision calibration, etc.
| Table 1 Travel Options |
| -100 | 100mm stroke displacement platform, equipped with linear motor and limit |
| -200 | 200mm stroke displacement platform, equipped with linear motor and limit |
| -300 | 300mm stroke displacement platform, equipped with linear motor and limit |
Table 2 Encoder Options |
| -S1 | Incremental analog optical linear encoder, 1Vpp |
| -S2 | incremental digital optical linear encoder, RS422 |
| -S3 | Absolute optical linear encoder, BISS |
|
