Disk Motor Module

  • 格物光学-盘式电机模组.png

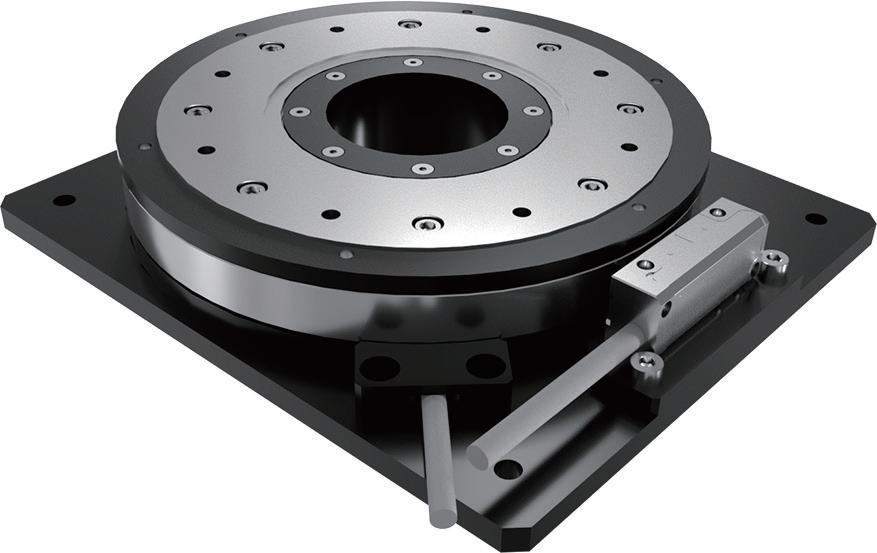

    The Gewu optical disc motor adopts a flat design and uses a coreless disc motor to directly drive the load. Combined with high-precision reciprocating roller bearings and high-resolution encoders, the fully closed-loop control can achieve high-precision walking accuracy and motion positioning accuracy. It can be widely applied in the medical field, semiconductor equipment, automotive and other fields.


    Product manual： 格物PDF.png



                                                                   Characteristic

                                                                                - Motor without cogging force

                                                                                - High thrust density

                                                                                - Compact design, achieving extremely low cross-sectional height

                                                                                - High dynamic response, non-contact disc motor direct drive

                                                                                - High precision optical linear encoder feedback

                                                                                - Excellent positioning accuracy and dynamic performance



  • Specifications and Parameters


    		AFM120AFM165
    运动定位特性/Positioning Accuracy
    行程/Travel 360 deg360 deg
    标定后精度/Accuracy ±15 arcsec±15 arcsec
    重复精度/Repeatability ±1.5 arcsec±1.5 arcsec
    轴向跳动/Axial Error Motion10 μm10 μm
    径向跳动/Radial Error Motion10 μm10 μm
    持续转矩/Continuous Torque0.4 N·m1.2 N·m
    最大转速/Max Speed720 deg/s400 deg/s
    机械特征/Mechanical Specifications
    外观尺寸/WxLxH 135mmx120mmx25mm220mmx200mmx30mm
    中空直径/Aperture Diameter36 mm36 mm
    最大负载/Max Load6 kg12.5 kg
    转动惯量/Inertia (Noload)
    		0.001268 kg.m20.003526 kg.m2
    总质量/Total Mass1.25 kg3.65 kg
    平台材料/MaterialAviation aluminum, black anodizedAviation aluminum, black anodized
    电气特性/Electrical Parameters
    驱动类型/Drive SystemDisk motorDisk motor
    转矩常数/Torque Constant0.36 N·m0.85 N·m
    峰值出力/Peak Force2.0 N·m4.0 N·m
    峰值电流/Peak Current5.56 A4.705
    连续电流/Continue Current1.11 A 1.41
    电阻/Electrical Resistance2.89 ohms5.32 ohms
    电感/Electrical Inductance1.41 mH5.11 mH
    反馈类型/FeedbackIncremental optical rotary encoderIncremental optical rotary encoder
    反馈分辨率/Resolution0.1 μm0.1 μm
    电气限位/Electrical LimitNANA
