Dust-free Drag Chain

  • 格物光学8-无尘拖链-1.png

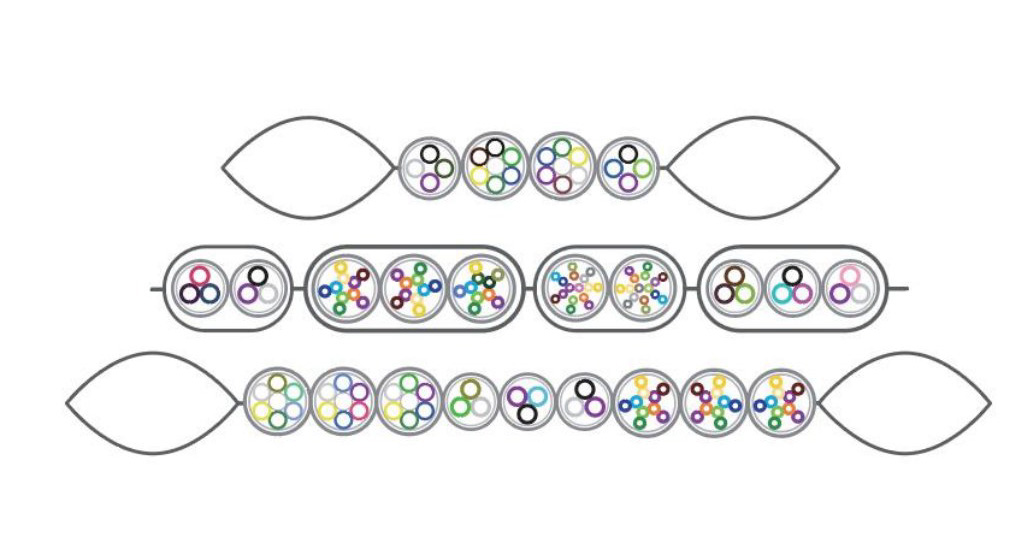

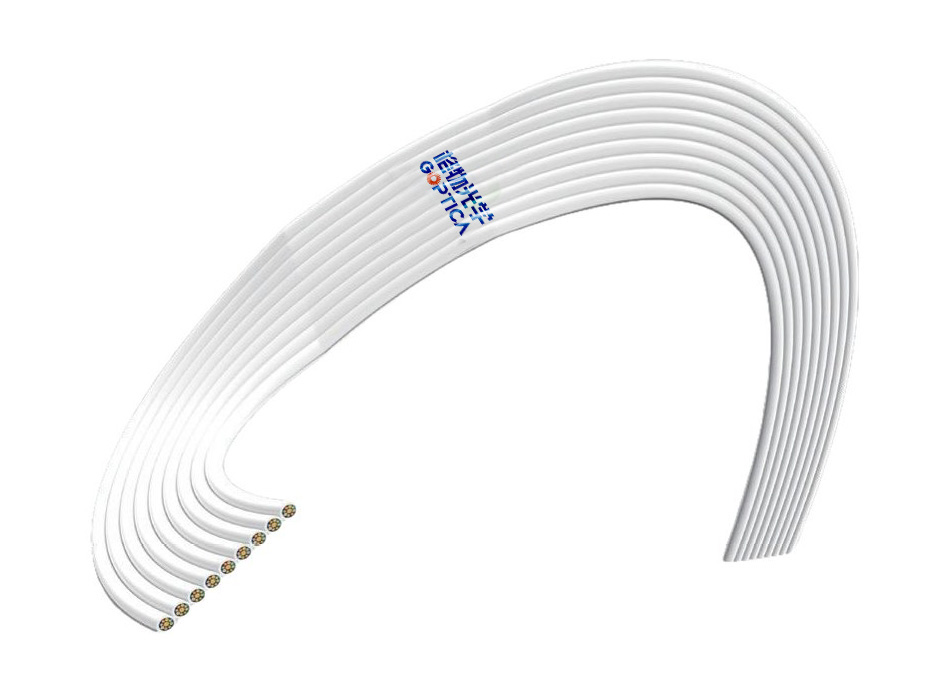

    Integrated cable layout features:

    - Compact structure, designed for extreme spaces

    - Dust free and compliant with IPA clean environment

    - Low gas release, non polluting wafer

    - Satisfy the vacuum environment

    - Low noise, low vibration, low friction

    - Customized production


    Product manual: 格物PDF.png

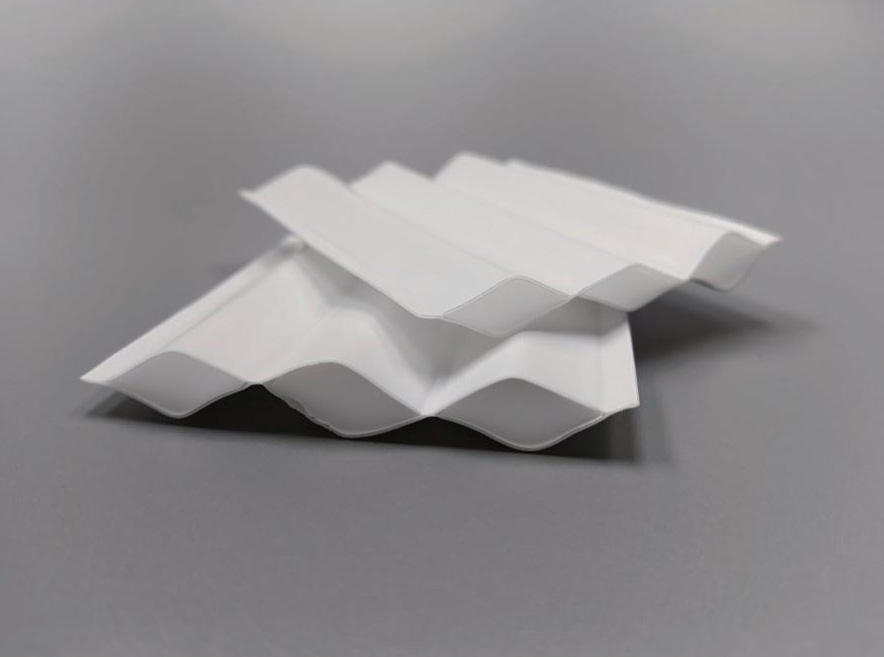

    Characteristics of POD sheath:

    Standard size, in compliance with semiconductor post-processing requirements

    - Dust free and compliant with IPA clean environment

    - Low gas release, non polluting wafer

    - Price advantage and wide application

    - Standardized production









    Integrated cable layout+POD same layer mixing characteristics:

    Solved the long-distance problem of integrated wiring

    - Meet the diverse and customized requirements of customers

    - Compared to POD products, it has the advantage of saving space







    Integrated cable layout+POD layered mixing characteristics:

    Customized development based on the actual situation of the equipment

    - Meet the diverse and customized requirements of customers

    - Compared to POD products, it has the advantage of saving space

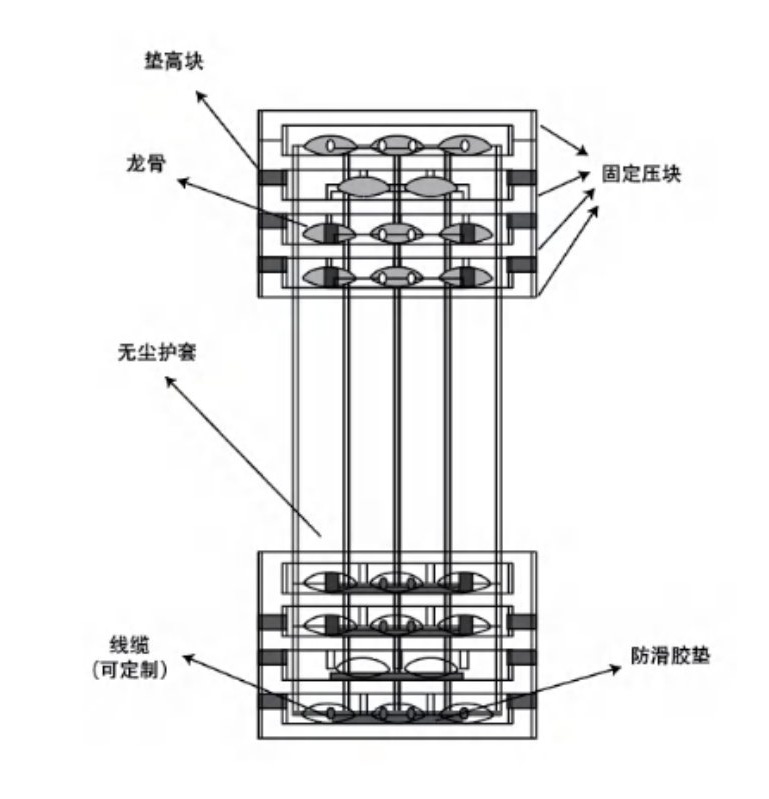

    Mechanical dimension diagram:








  • Specifications and Parameters

    Functionality

    Specifications

    自支撑最大行程/Self support stroke length

    1500mm(If a longer journey is required, an additional keel can be added)

    最大加速度/Max.Acceleration

    4G

    最大速度/Max.Speed

    2m/s

    最小弯曲半径/Min.Bend Radius

    40mm

    工作温度范围/Temperature

    -40~80℃

    使用寿命/Flex life

    More than 10 million times

    无尘等级/Class room Class

    IPA Clean Class 1 (1SO14644-1)

    产品认证/Cable certifications

    UL、IPA

    宽度/Cable ststem Width

    Up to 16 lines, with a total width not exceeding 120mm

    最小间距/Min.Spacing

    1.0mm

    线缆类型/Type of cable

    Signal line, power line, optical fiber, water and gas pipeline
