 | BLS-Series High-Speed Two-Channel LED Drivers with Manual & Analog-Input Controls and Tool-free Connectors High speed, manual and analog-voltage controlled LED drivers for Goptica LEDs:
BLS-1000-2: Two(2)-channel. Three(3)-tiered output limit settings of 500/750/1,000mA. Up to 100kHz modulation speed. BLS-3000-2: Two(2)-channel. Three(3)-tiered output limit settings of 1,000/2,000/3,000mA. Up to 50kHz modulation speed.
|

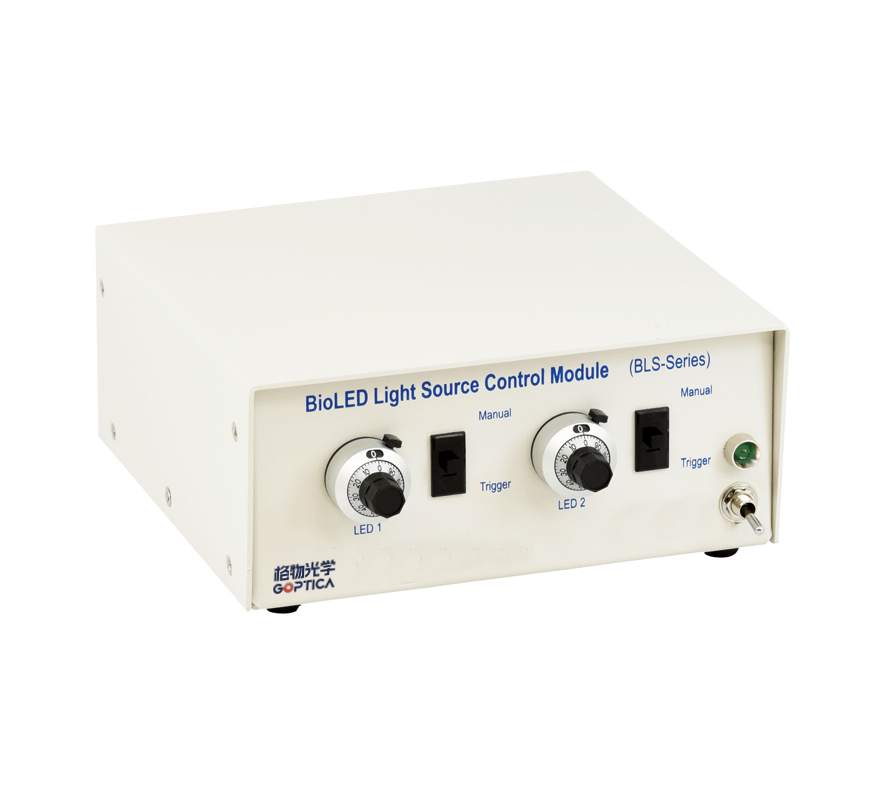

| Goptica BLS-1000-2 and BLS-3000-2 LED controllers are designed for driving Mightex LED sources. The controllers have two operation modes:
Manual Mode: the output current can be controlled by manually turning the knobs; or Trigger Mode: the output current can be controlled via an external analog input signal between 0-5V.

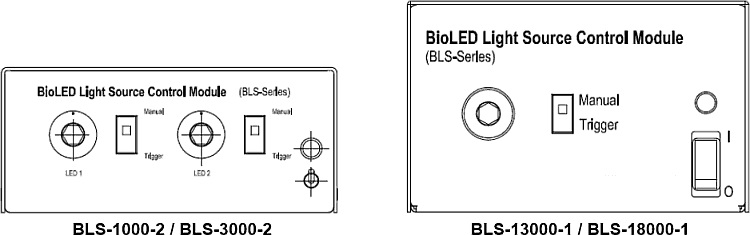

The control mode is selected with a slide switch on the front panel, and the factory default is “Manual” mode. BLS-1000-2 and BLS-3000-2 provide Maximum Current Selection DIP switches on the rear panel, which allow the user to set the maximum output current of the channel to 500/750/1,000mA for BLS-1000-2, and 1,000/2,000/3,000mA for BLS-3000-2, respectively. The factory default is set to 500mA for BLS-1000-2 and 1,000mA for BLS-3000-2, respectively.
When the controller is set to “Trigger” mode, the output current is fully controlled by the input analog signal (0-5V). |
