Multi-channel laser power meter (infrared band)

  •        Goptica desktop multi-channel laser power meter supports flexible configuration of 1 to 4 channels, meeting the simultaneous measurement requirements of multiple optical paths. The power measurement range covers 10µW to 20W, with wavelength compatibility ranging from 900 to 1650nm, making it suitable for power measurement of various lasers. The power resolution is as low as 0.001dB, ensuring high precision. It is equipped with data statistics and analysis functions. When paired with the upper computer software, it supports dual display of numbers and images, presenting measurement results and trends intuitively, and providing precise support for scientific research and industrial applications.

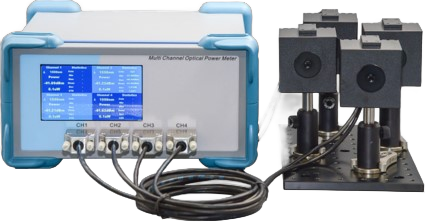

    		格物多通道功率计


    Product features
    		Product application
    High dynamic range for power measurement
    		Testing of optical fiber devices
    High-precision resolution
    		Laser power test
    Multi-channel

    Optical experiment




    Product Parameter and Product Manual

    Product Manual:

    Optical indexunitTypical valueRemarks
    Working wavelengthnm900~1650
    Detector type-InGaAs
    Power measurement rangedBm-20~+4310μW~20W
    Measurement resolutiondB0.001
    Measurement uncertainty%±5
    Data sampling time intervals0.1~1Optional
    Optical fiber adapter
    		- FC（Default）
    Diameter of the light input hole
    		mmФ12
    Power statistical analysis
    		-Current value; Minimum value; Maximum value; Average value; Peak-to-peak value Standard deviation value
    Electrical and environmental parameters
    Control mode-Touchscreen/serial port communication
    Size of the power meter probemm65×67.5×74
    The dimensions of the power meter main unitmm255(W)×285(D)×180(H)
    The length of the power meter probe cablem1.5
    Power probe communication port-DB 9 Pin
    Analog voltage output range
    		V0~2.5
    Analog voltage output port-BNC
    Upper computer communication port-USB
    Operating temperature and humidity range--5~+35°C；0~70%
    Power supply-AC 100~240V , <15W




    Product model and order information
    MC-OPM
    		Working wavelength (nm)
    		Power range (dBm) Number of channels
    		Encapsulation
    Multi - channeloptical power meterNIR-I=900~1650
    		2040=-20~+40 1/2/3/4B5=Desktop
